Aten VS0108HA [8/20] Components

- 8 -

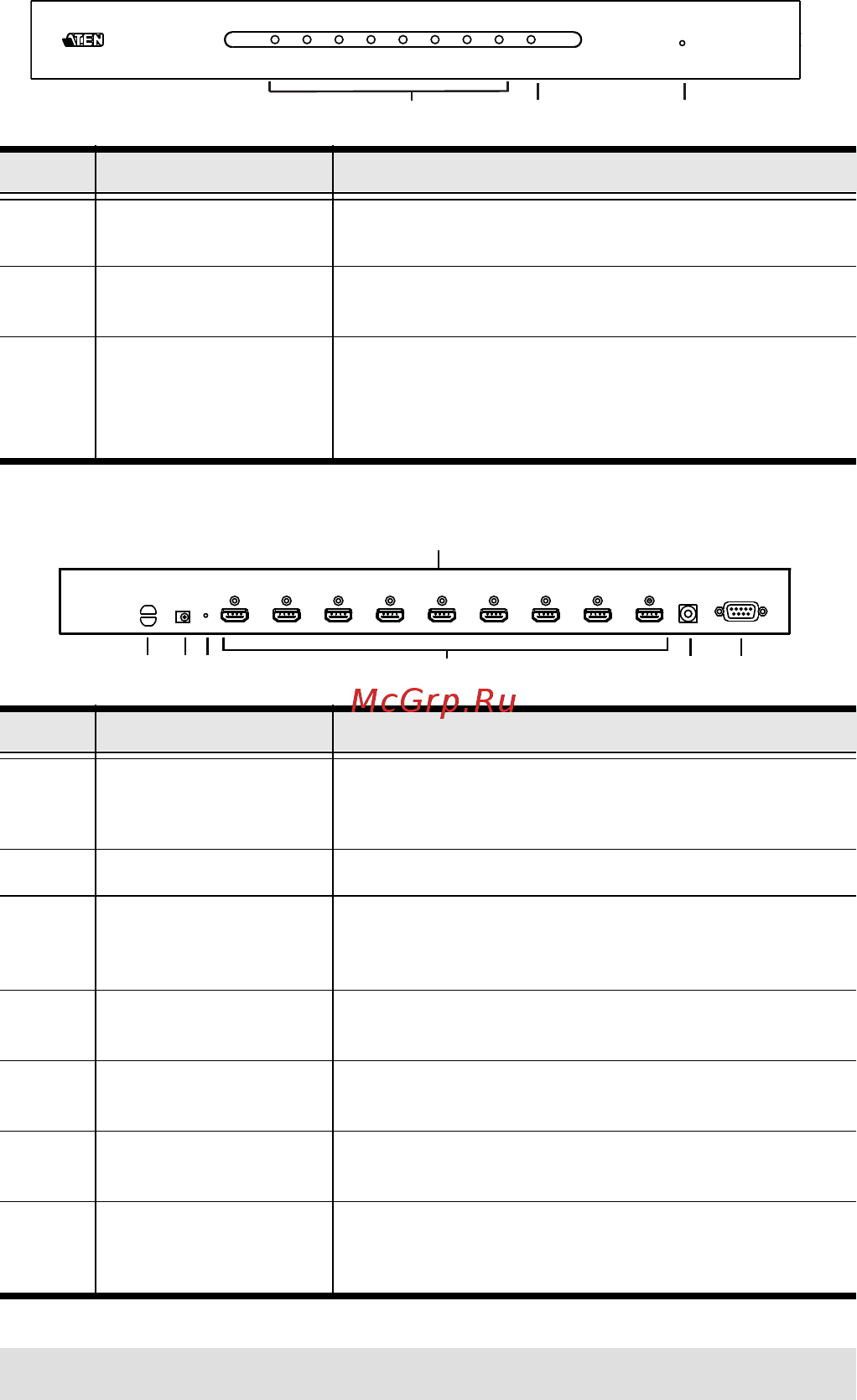

Components

Front View

Rear View

No. Component Description

1 Output Port LEDs

(1~8)

Lights to indicate there is a working connection

to the display device(s) connected to the port(s).

2 Input LED Lights to indicate that there is a working

connection to the source device (i.e., computer).

3 Power LED Lights green to indicate that the VS0108HA is

receiving power and is up and running.

Lights orange to indicate that the VS0108HA is

in standby mode.

No. Component Function

1 Cable Tie Slot If you want to use a cable tie to gather the cables

together, you can run it through this slot to attach

it to the unit.

2 Power Jack The power adapter cable plugs in here.

3 Firmware Upgrade

button

Press this to have the VS0108HA enter

Firmware Upgrade Mode. When the upgrade is

done, press it again to exit the mode.

4 HDMI Output port

section

The cables from your HDMI display devices plug

into these ports.

5 EDID Mode Switch Press this button to cycle through the EDID

modes (0~7). Refer to page 11 for more details.

6 HDMI Input port The cable from your HDMI source device plugs

in here.

7 RS-232 Serial Port This is the serial remote port for output source

selection and high-end system control, as well

as for updating the device firmware.

1 2

5 7
