VC010 / VC060 / VC080 User Manual
8
4. (Optional) To edit the VC010 / VC060 / VC080 system settings through
the RS-232 port, connect the hardware / software controller here using the
provided RS-232 Configuration Cable.
This completes the basic installation of the VGA/DVI/HDMI EDID Emulator.
You may now power on the display and source devices.
Installing the RS-232 Controller
You can access and configure the VC010 / VC060 / VC080 EDID Wizard AP
through the RS-232 serial interface. Use the RS-232 configuration cable and
connect one end to the VC010 / VC060 / VC080 RS-232 port, and the other
end to the serial port of your PC.
Note: To configure the VC010 / VC060 / VC080 through the EDID Wizard,
see page 10.

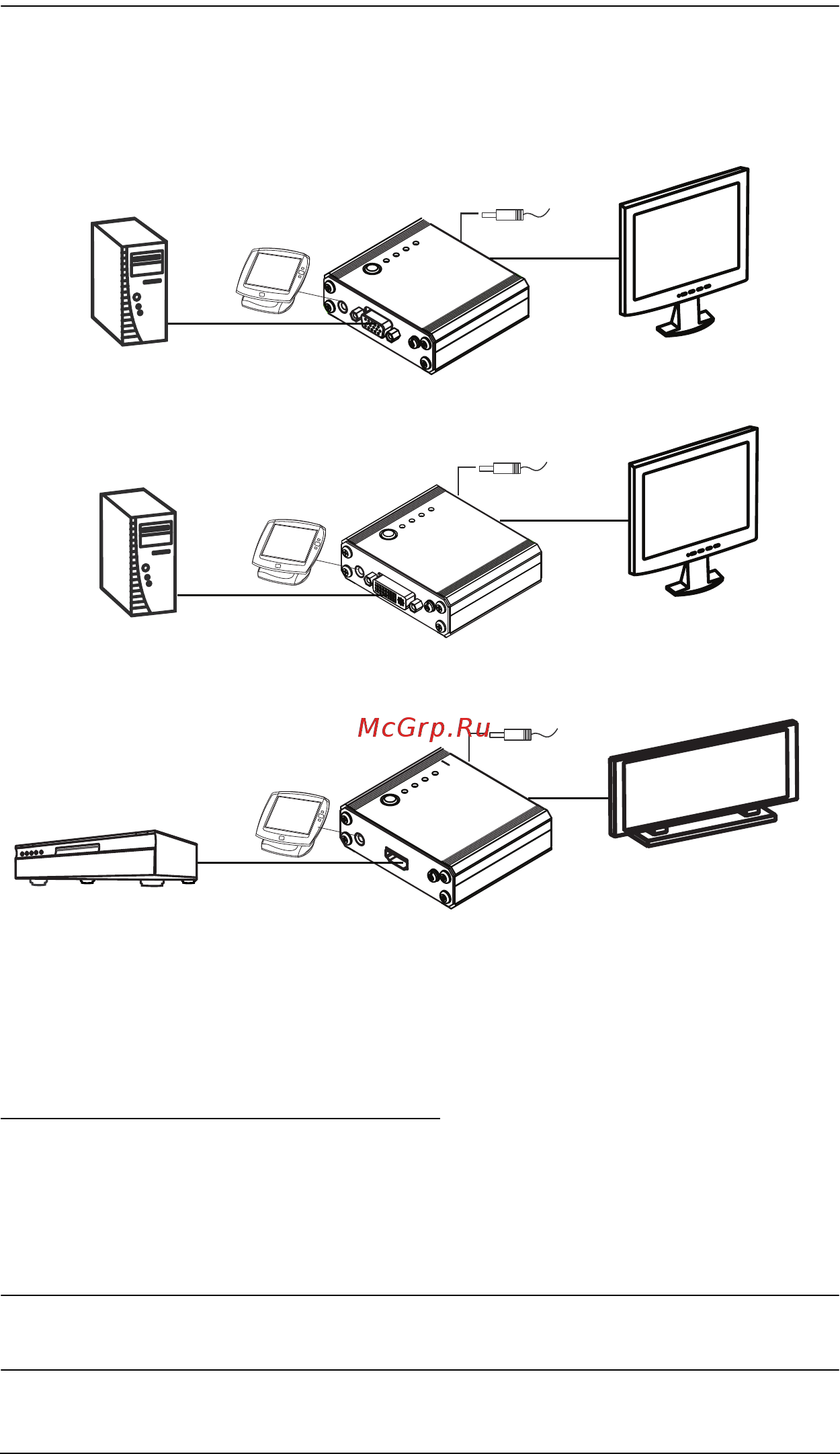

VC010
VC060
VC080
VGA Output Device
1
DVI Output Device
1
HDMI Output Device
1
VGA
Source Device
2
DVI
Source Device
2
HDMI Source Device
2
4
4
4
3
3
3
