ECS Elitegroup HDC-I2/E-450 [13/64] Installing the motherboard

Installing the Motherboard

Checking Jumper Settings

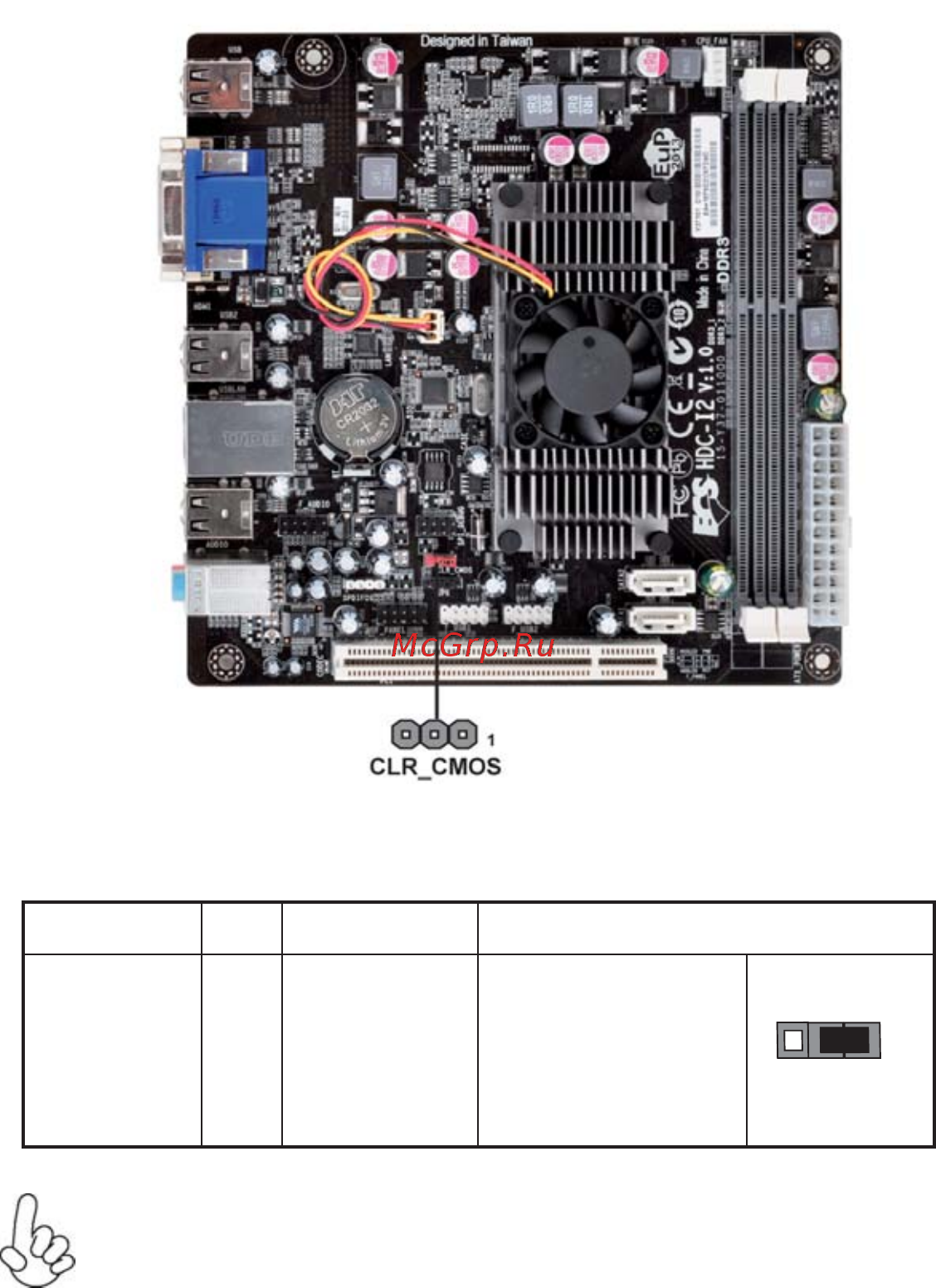

The following illustration shows the location of the motherboard jumpers. Pin 1 is

labeled.

Jumper Settings

Jumper Type Description Setting (default)

CLR_CMOS 3-pin

CLEAR CMOS

1-2: NORMAL

2-3: CLEAR

Before clearing the

CMOS, make sure to

turn the system off.

CLR_CMOS

To avoid the system instability after clearing CMOS, we recommend users

to enter the main BIOS setting page to “Load Default Settings” and

then “Save & Exit Setup”.
