Setting Up eJIFFY

Installation and BIOS Setup

DVD Activation

Finish the DVD utility setup, and then set the BIOS to complete eJIFFY activation.

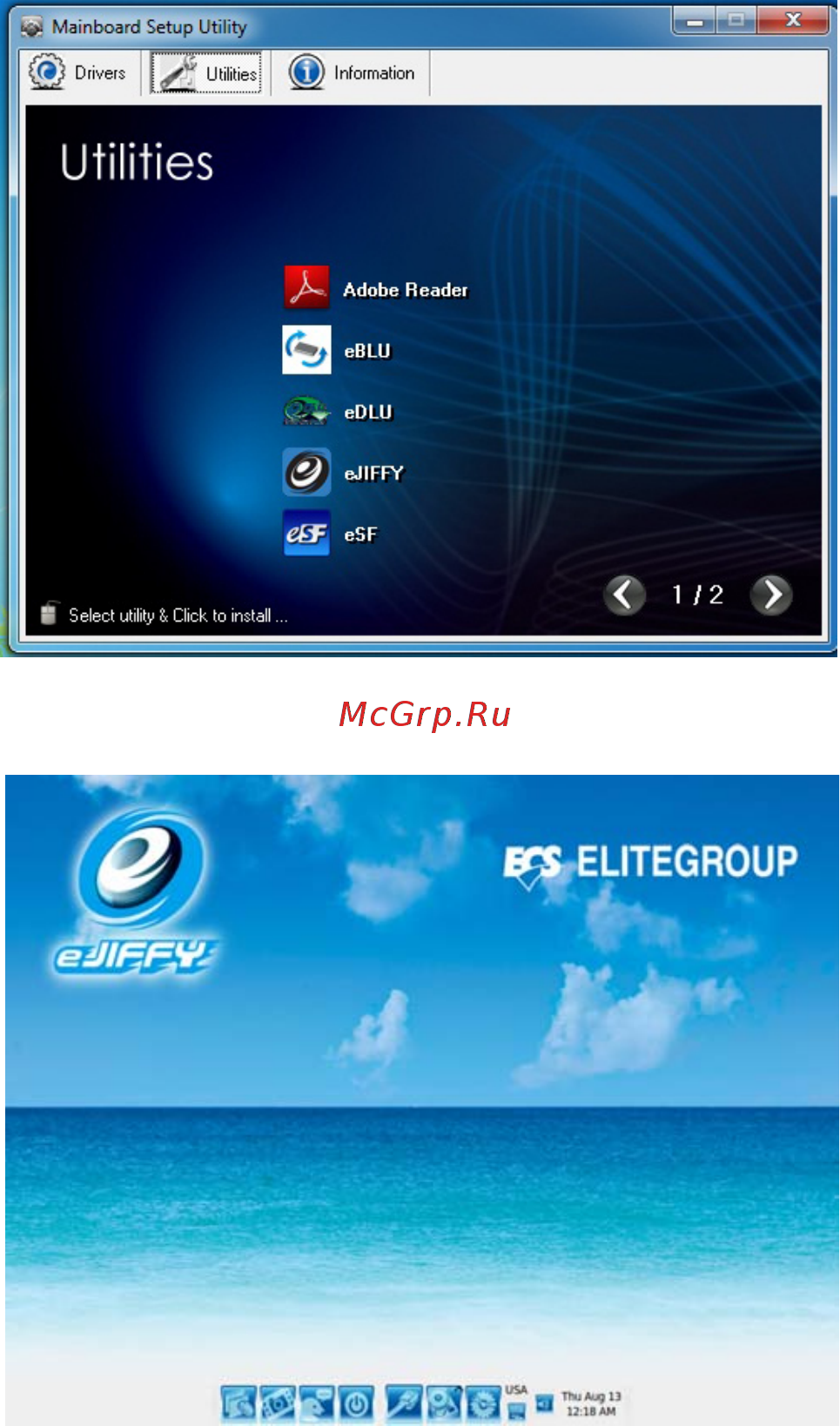

1. Insert ECS software utility DVD and enter below “Utilities” screen. Click eJIFFY

feature item to install.

2. Follow the onscreen instructions to finish eJIFFY setup.
