Installing the Motherboard

Connecting I/O Devices

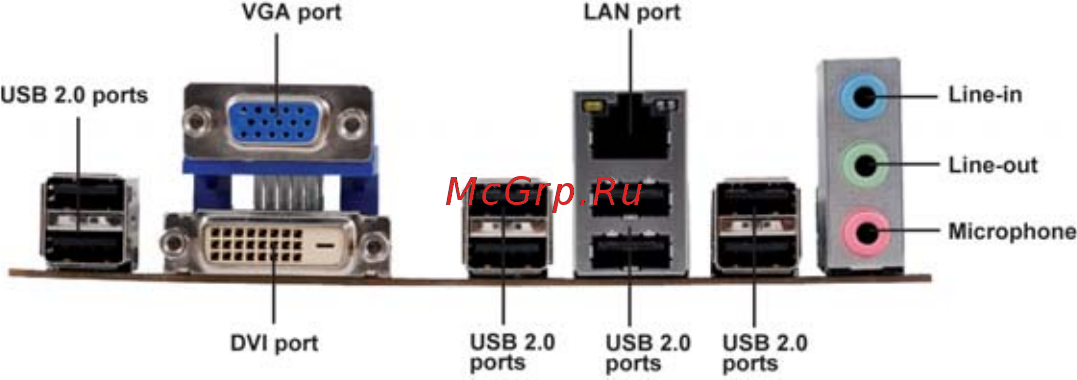

The backplane of the motherboard has the following I/O ports:

DVI Port Connect the DVI port to the monitor.

VGA Port Connect your monitor to the VGA port.

USB 2.0 Ports Use the USB 2.0 ports to connect USB 2.0 devices.

LAN Port

Connect an RJ-45 jack to the LAN port to connect your

computer to the Network.

Use the three audio ports to connect audio devices. The

first jack is for stereo line-in signal. The second jack is for

stereo line-out signal. The third jack is for microphone.

Audio Ports
