Setting Up eJIFFY

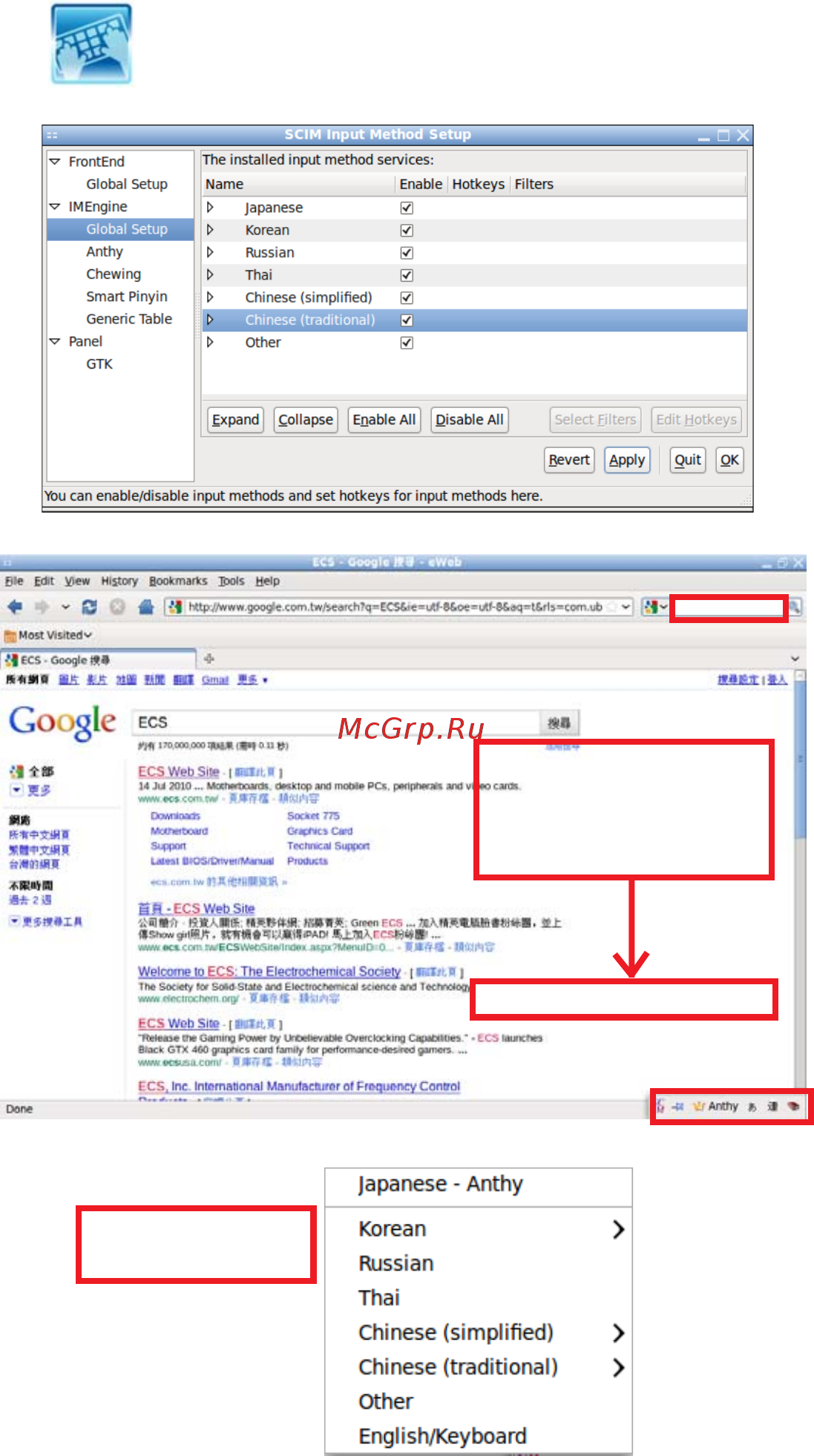

Click the language bar here.

Move your mouse pointer on

the text box and press

Ctrl+Space. The language

bar will then appear as fol-

lows.

Select your desired

language

Click to enable all possible language inputs you want to apply, and click

“Apply”:
