Chapter 2

KBN-I USER MANUAL

1 Remove a blanking plate from the system case corresponding to the slot

you are going to use.

2 Install the edge connector of the add-on card into the expansion slot.

Ensure that the edge connector is correctly seated in the slot.

3 Secure the metal bracket of the card to the system case with a screw.

1. For some add-on cards, for example graphics adapters and network adapt-

ers, you have to install drivers and software before you can begin using the

add-on card.

2. The onboard PCI interface does not support 64-bit SCSI cards.

Follow these instructions to install an add-on card:

Please refer the following illustrations to install the add-on card:

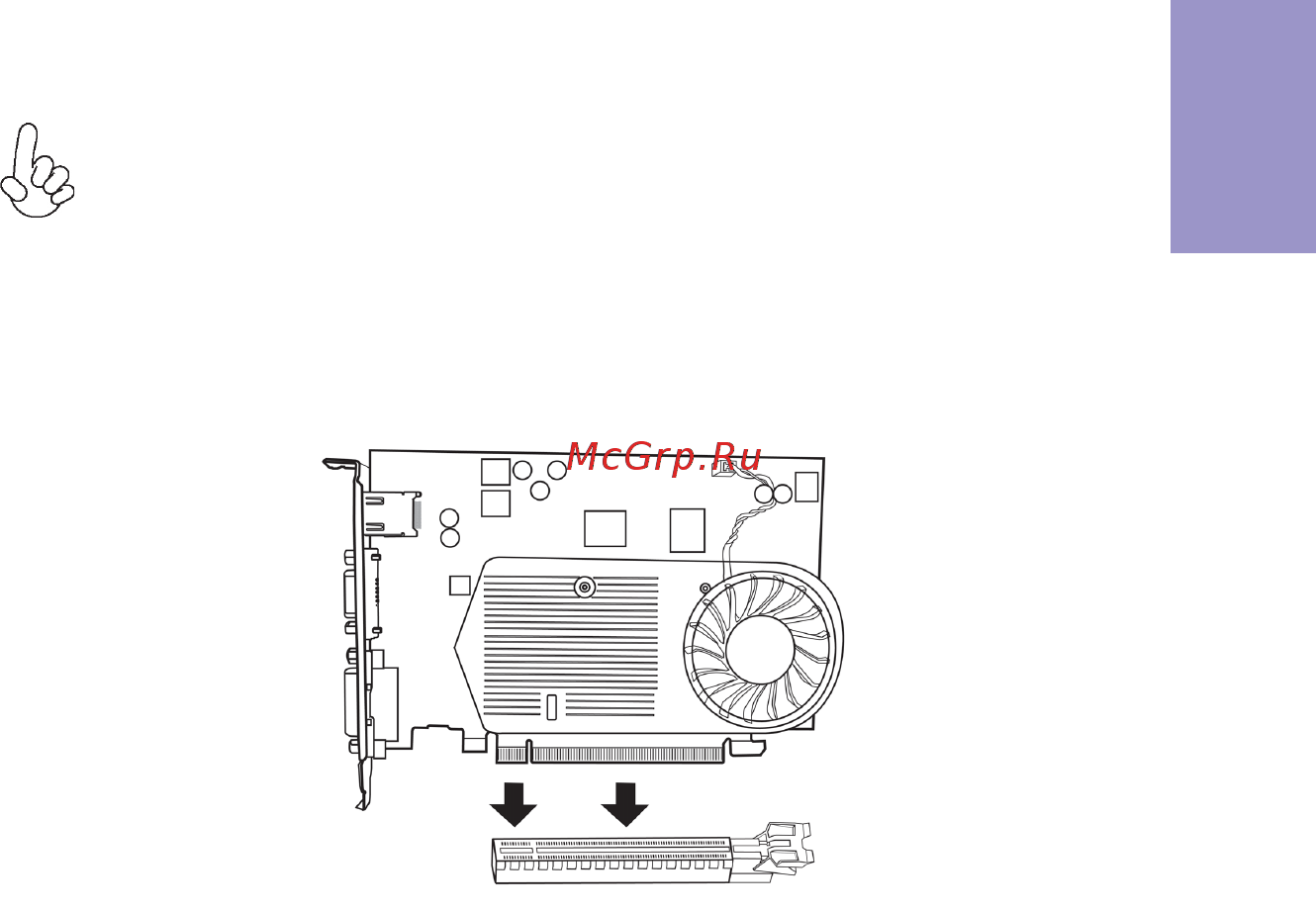

Install the VGA Card in the PCIE X16 slot
