Chapter 2

KBN-I USER MANUAL

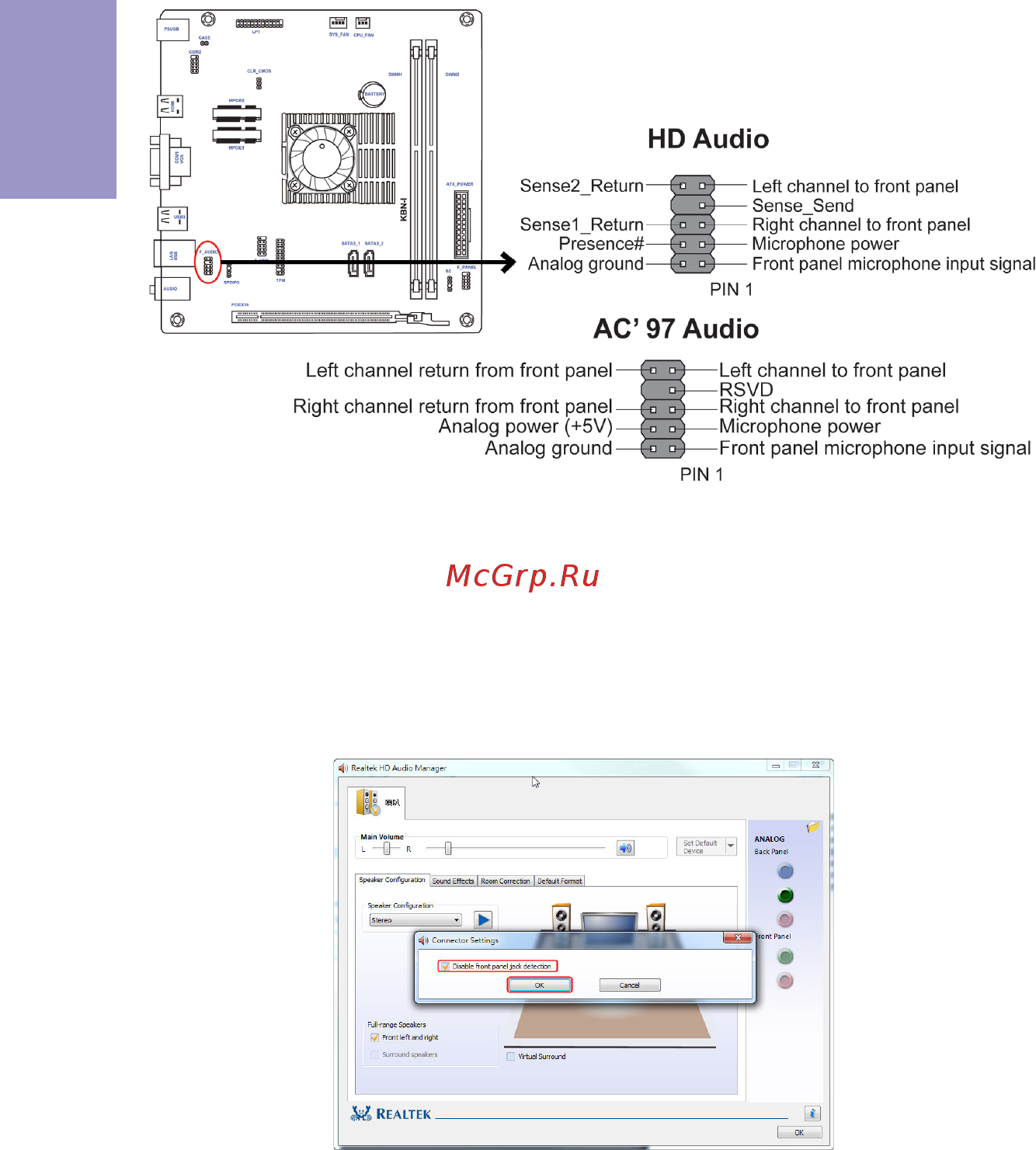

6. F_AUDIO: Front Panel Audio Header

The front panel audio header allows the user to install auxiliary front-oriented mi-

crophone and line-out ports for easier access. This header supports HD audio by

default. If you want connect an AC’ 97 front panel audio to HD onboard headers,

please set as below picture.

If you use AC’ 97 Front Panel, please tick off the option of “ Disabled Front Panel

Detect ”. If you use HD Audio Front Panel, please don’ t tick off “Disabled Front Panel

Detect ”.

* For reference only

AC’ 97 Audio Configuration: To enable the front panel audio connector to sup-

port AC97 Audio mode.
