Chapter 2

KBN-I USER MANUAL

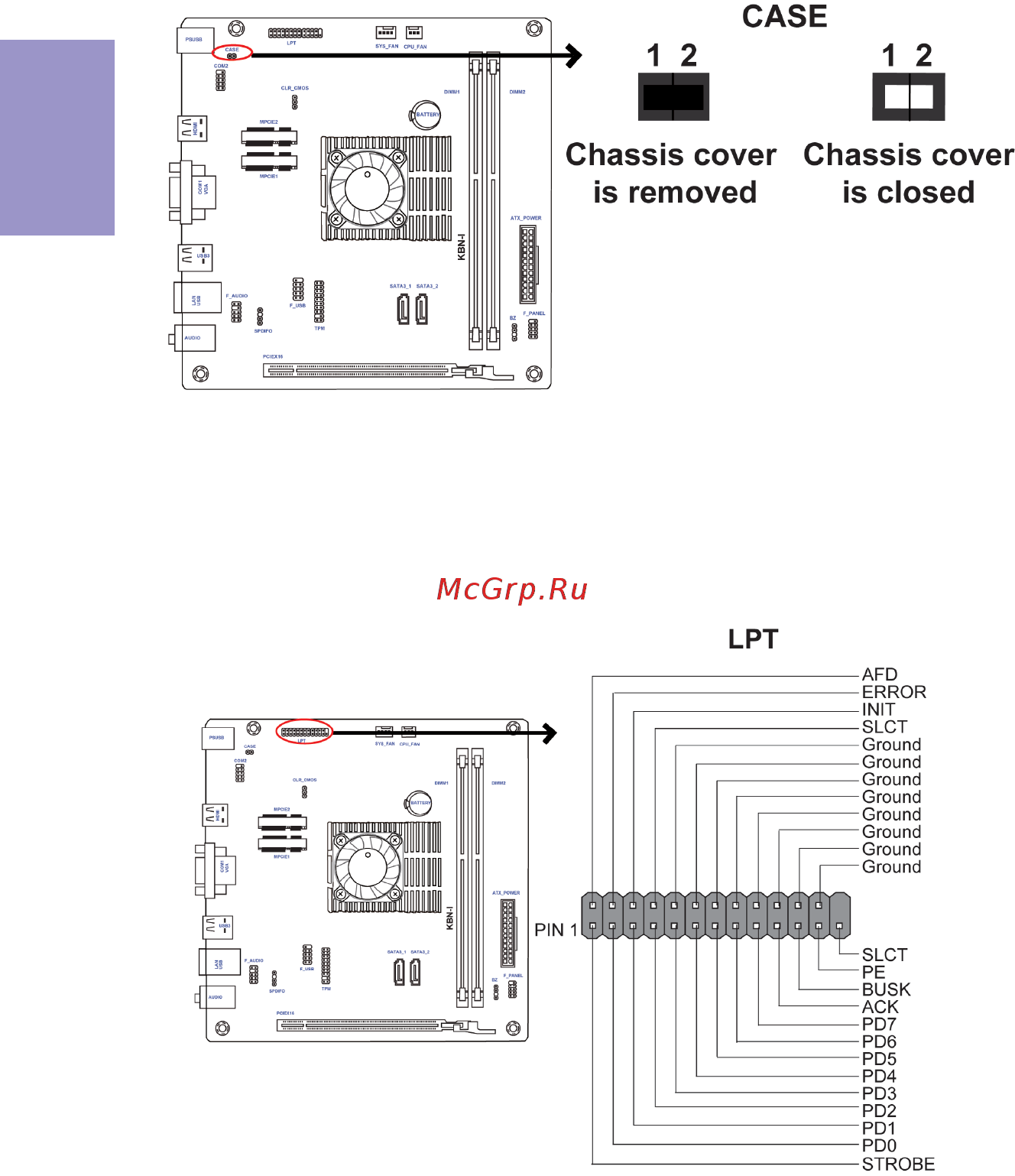

8. CASE: Chassis Intrusion Detect Header

This detects if the chassis cover has been removed. This function needs a chassis

equipped with instrusion detection switch and needs to be enabled in BIOS.

9. LPT: Onboard parallel port Header

This is a header that can be used to connect to the printer, scanner or other devices.
