Chapter 2

H61H2-M8 USER MANUAL

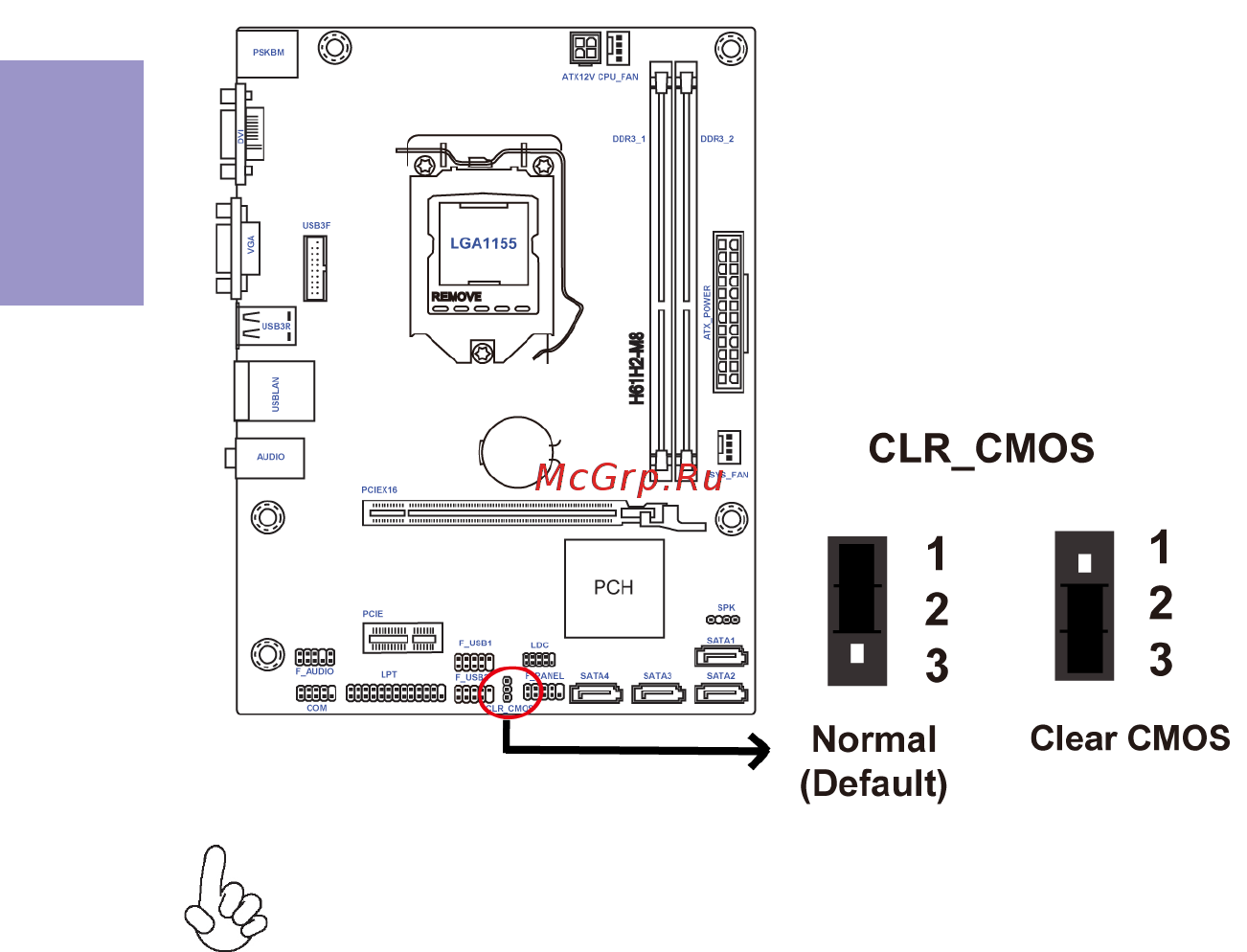

The following illustration shows the location of the motherboard jumpers. Pin 1 is

labeled.

2-3. Checking Jumper Settings

To avoid the system instability after clearing CMOS, we recommend users to

enter the main BIOS setting page to “Load Default Settings” and then “Save

and Exit Setup”.
