Chapter 2

H61H2-M8 USER MANUAL

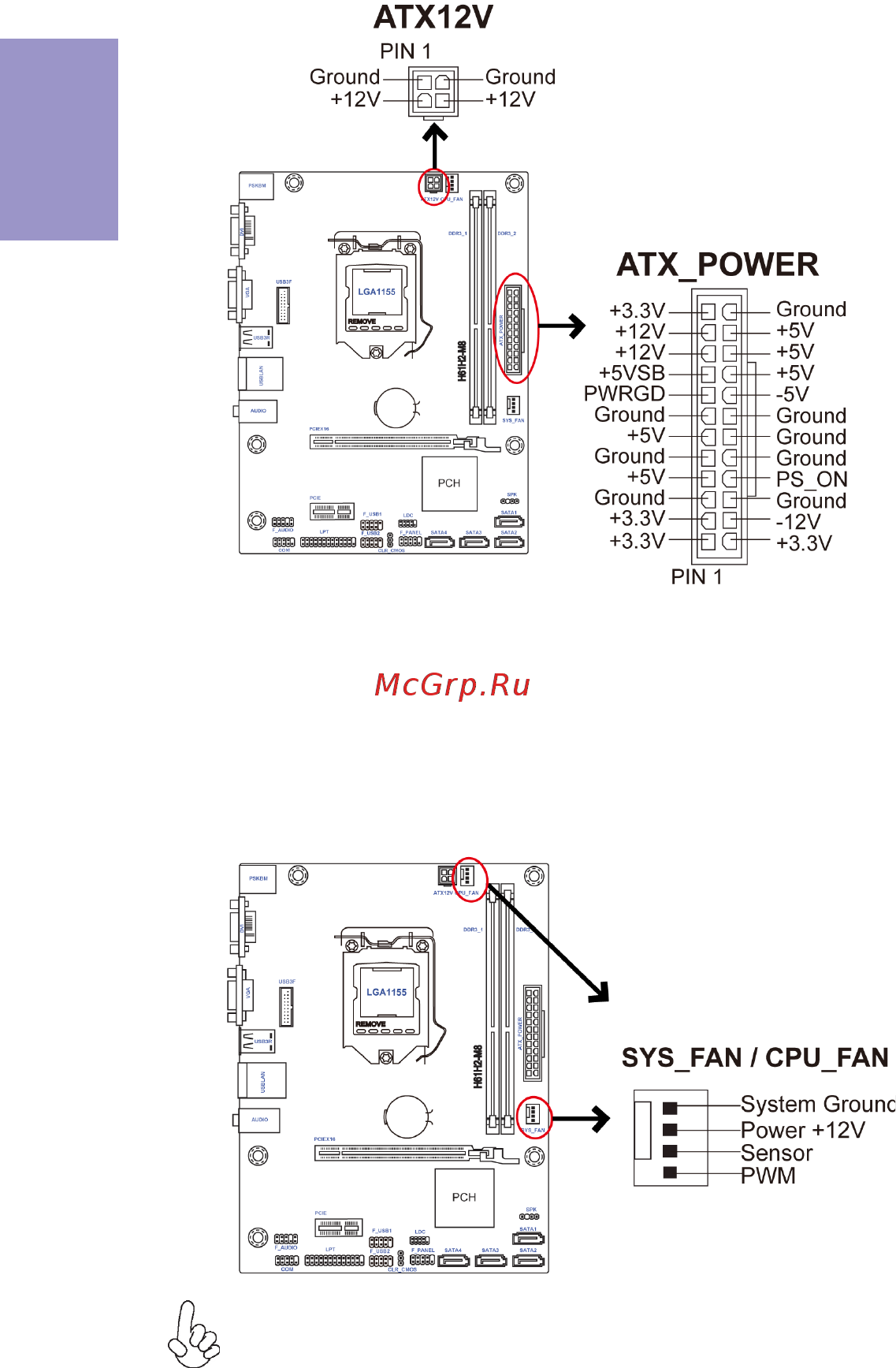

Connect the auxiliary case power supply connector to ATX12V.

Connect the standard power supply connector to ATX_POWER.

1 & 3. ATX12V (ATX 12V Power Connector) & ATX_POWER (ATX 24-pin Power

Connector)

Connect the CPU cooling fan cable to CPU_FAN.

Connect the system cooling fan connector to SYS_FAN.

2 & 4. CPU_FAN (CPU cooling FAN Power Connector) & SYS_FAN (System Cool-

ing FAN Power Connector)

Users please note that the fan connector supports the CPU cooling fan of 1.1A

~ 2.2A (26.4W max) at +12V.
