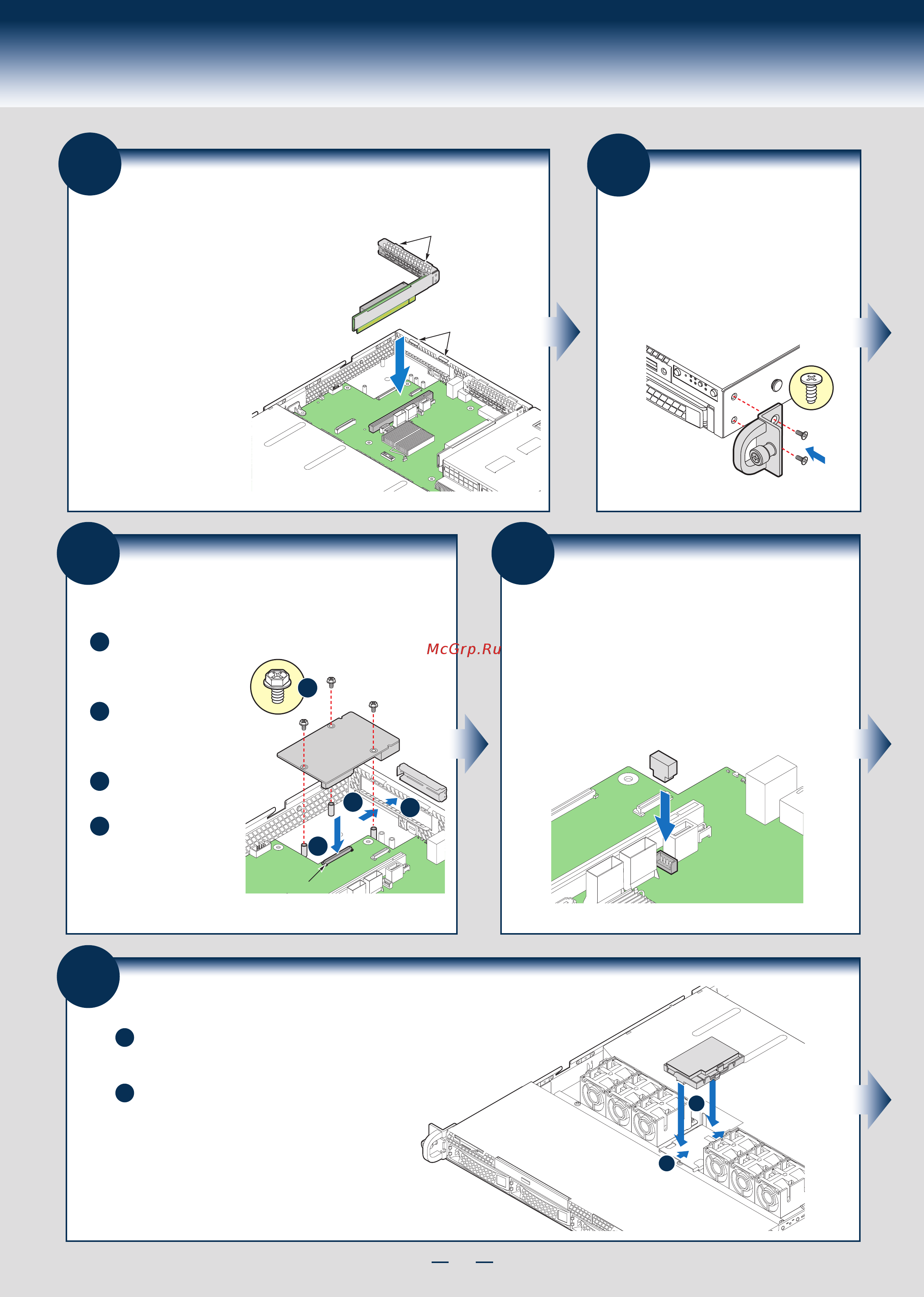

General Installation Process
14
Install Rack Handles
NOTE: Rack handles are required to install the
bezel. For detailed instructions, see the
product Service Guide available on the Intel
®
Server Deployment and Management DVD.
13
Install Add-in Card Riser Assembly
Position the riser card edge connector over
the server board riser socket and align the
two hooks of the riser with the slots at the
back of the chassis, then press straight
down into riser socket.
Hooks (2)
Slots (2)
NOTE: Riser Slot 2 is not
functional without having two
processors installed.
15
Install Intel® I/O Expansion Module
(optional)
A
D
B
Squeeze the sides of the I/O
module bay filler plate, and
pull it away from the chassis
back panel.
Fit the front of the module
into the back panel slot and
align the I/O Module over the
three stand-offs.
Secure the module with the
three screws as shown.
C
Carefully press down on the I/O
module to engage connectors.
I/O Connector
I/O Module
A
B
C
D
NOTE: If included,
remember to install the EMI
shield.
16
Install Intel® RAID C600
Upgrade Key (optional)
STOR_UPG_KEY
Locate the white 4-pin key header next to Riser Slot 1. Carefully
pickup the Intel
®
RAID C600 Upgrade Key. Match the Key and
connector orientation and press down to install.
17
Install Intel® RAID Smart Battery (optional)
A
Locate the BBU bracket inside the chassis. Align the
tabs on the plastic battery holder with mounting holes
on the BBU bracket.
B
Slide the plastic battery holder toward the rear of the
system until the tabs engage with the mounting holes in
the BBU bracket.
A
B
