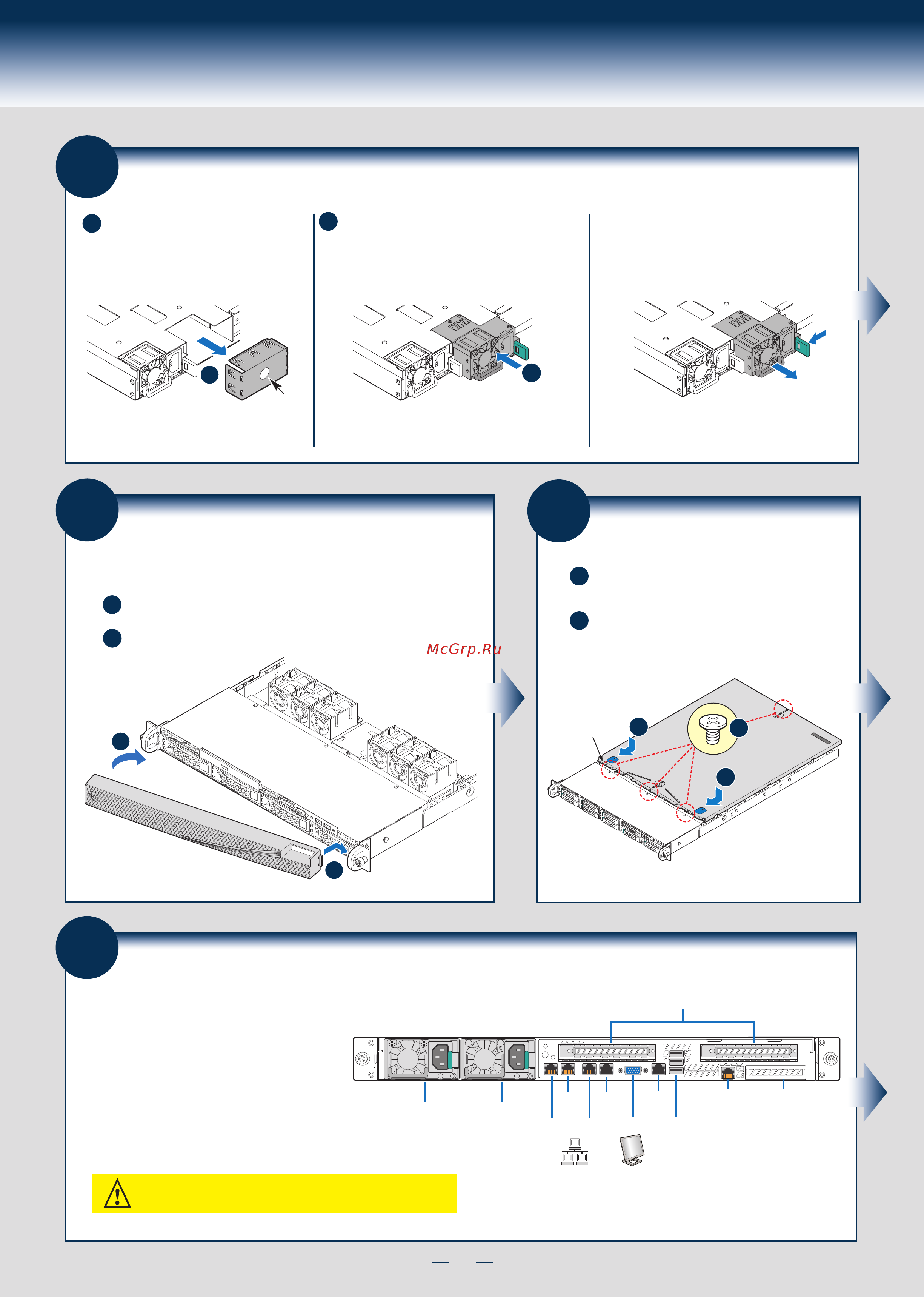

9
General Installation Process
18
Install Second Power Supply Module (optional)
A
B
Use the ‘finger hole’ to remove the
filler panel.
Insert the power supply module into the power
supply cage and push all the way until it clicks
into place.
Power Supply Removal:
Pull out the module from the chassis by holding
the handle while pressing the green latch in the
direction shown.
A
Finger Hole
B
21
Finishing Up
1. Verify the system top cover is installed.
2. Install the server into the rack using the instructions
provided with the rack mounting kit.
3.
Connect your USB keyboard/mouse, video and other
I/O cables/devices as shown.
Then connect the power cord(s).
CAUTION: This system must be operated with the TOP COVER installed to
ensure proper cooling.
Before installing your operating system, you
must finish your system installation, make I/O
connections, and plug in the power cord(s).
1
st
Power
Supply
Module
2
nd
Power
Supply
Module
Network
NIC 1 NIC 3
NIC 2 NIC 4
Serial
Port A
Video USB
Ports
Intel
®
RMM4
NIC Port
Intel
®
I/O
Module
(optional)
Add-in Card Slots
19
Install Bezel (optional)
A
B
Lock the right end of the front bezel to the rack handle.
Push-in the left side of the bezel until it clicks into place.
Lock the bezel if needed.
NOTE: Install the rack handles before installing the bezel.
A
B
20
Install the Top Cover
A
Install the three screws at the front and torque to
7-9in-lbs. Then install the screw at the back and
torque to 7-9in-lbs.
B
Place the top cover on the system and slide towards
the front of the chassis until the recessed front edge
is fully engaged.
A
A
Recessed
Edge
B
