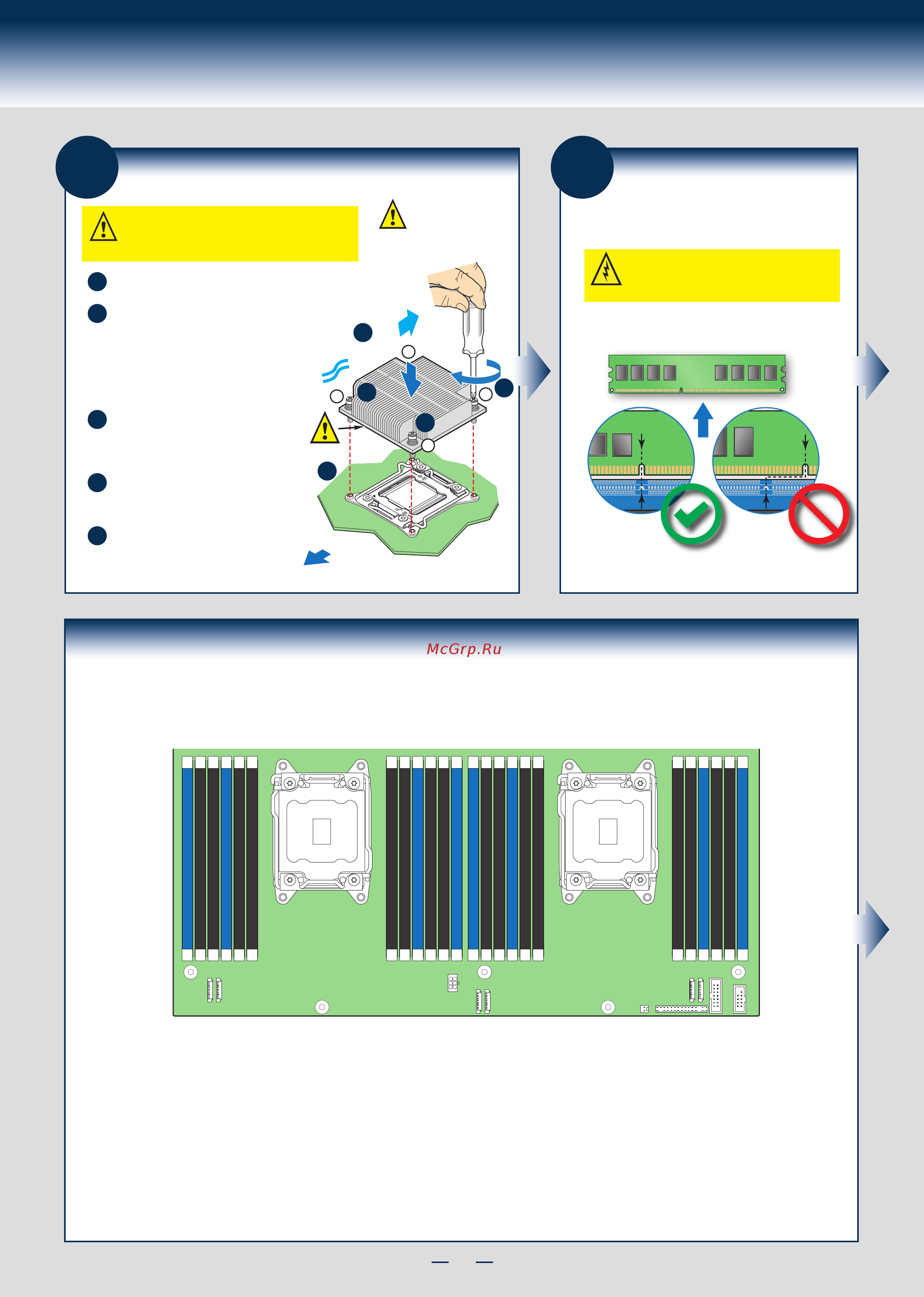

General Installation Process
7
Install Memory Modules
DDR3 DIMM Memory Identification:
Other
Memory
DDR3
CAUTION: Observe normal ESD (ElectroStatic
Discharge) procedures to avoid possible damage to
system components.
DIMM notch and socket bump must align as shown below.
Install Memory Modules ... Continued
Memory Configurations and Population Order:
Intel® Server Board S2600GZ
For best performance, a minimum of four DIMMs per CPU is recommended, populated in the blue slot of each memory channel.
In a single-processor configuration, always populate A1 DIMM first.
In a dual-processor configuration, always populate A1 DIMM first for CPU1 and E1 DIMM first for CPU2.
Note: For additional memory configurations, see the Service Guide on the Intel
®
Server Deployment & Management DVD that accompanied your Intel
®
Server System, or go to: http://www.intel.com/support.
Memory sizing and configuration is supported only for qualified DIMMs approved by Intel. For a list of supported memory, go to:
http://serverconfigurator.intel.com.
CPU2 SocketCPU1 Socket
DIMM_C1
DIMM_C2
DIMM_C3
DIMM_D1
DIMM_D2
DIMM_D3
DIMM_G1
DIMM_G2
DIMM_G3
DIMM_H1
DIMM_H2
DIMM_H3
DIMM_B3
DIMM_B2
DIMM_B1
DIMM_A3
DIMM_A2
DIMM_A1
DIMM_F3
DIMM_F2
DIMM_F1
DIMM_E3
DIMM_E2
DIMM_E1
6
Install Processor Heatsink(s)
NOTE: Heatsink styles may vary.
Remove the protective film on the TIM if present.
D
CAUTION: The heatsink has thermal interface
material (TIM) on the underside of it. Use caution so
that you do not damage the thermal interface material.
Use gloves to avoid sharp edges.
E
C
A
B
Align heatsink fins to the front and back of
the chassis for correct airflow.
Airflow goes from front-to-back of chassis.
Each heatsink has four captive fasteners and
should be tightened in a diagonal manner using
the following procedure:
Using a #2 Phillips* screwdriver,
start with screw 1 and engage screw
threads by giving it two rotations
and stop. (Do not fully tighten.)
Proceed to screw 2 and engage screw
threads by giving it two rotations and
stop. Similarly, engage screws 3 and 4.
Repeat steps C and D by giving each
screw two rotations each time until
each screw is lightly tightened up to
a maximum of 8 inch-lbs torque.
C
Processor
Socket
AIRFLOW
Chassis Front
2
3
1
4
A
B
TIM
D
CAUTION:
Do not
over-tighten
fasteners.
E
