ASUS PRIME B250M-PLUS
1-1
Product introduction
1
Motherboard overview
• Unplugthepowercordfromthewallsocketbeforetouchinganycomponent.
• Beforehandlingcomponents,useagroundedwriststraportouchasafelygrounded
objectorametalobject,suchasthepowersupplycase,toavoiddamagingthemdue
tostaticelectricity.
• Beforeyouinstallorremoveanycomponent,ensurethattheATXpowersupplyis
switchedofforthepowercordisdetachedfromthepowersupply.Failuretodoso
maycauseseveredamagetothemotherboard,peripherals,orcomponents.
• Unplugthepowercordbeforeinstallingorremovingthemotherboard.Failuretodoso
cancauseyouphysicalinjuryanddamagetomotherboardcomponents.
Place this
side towards
the rear of the
chassis

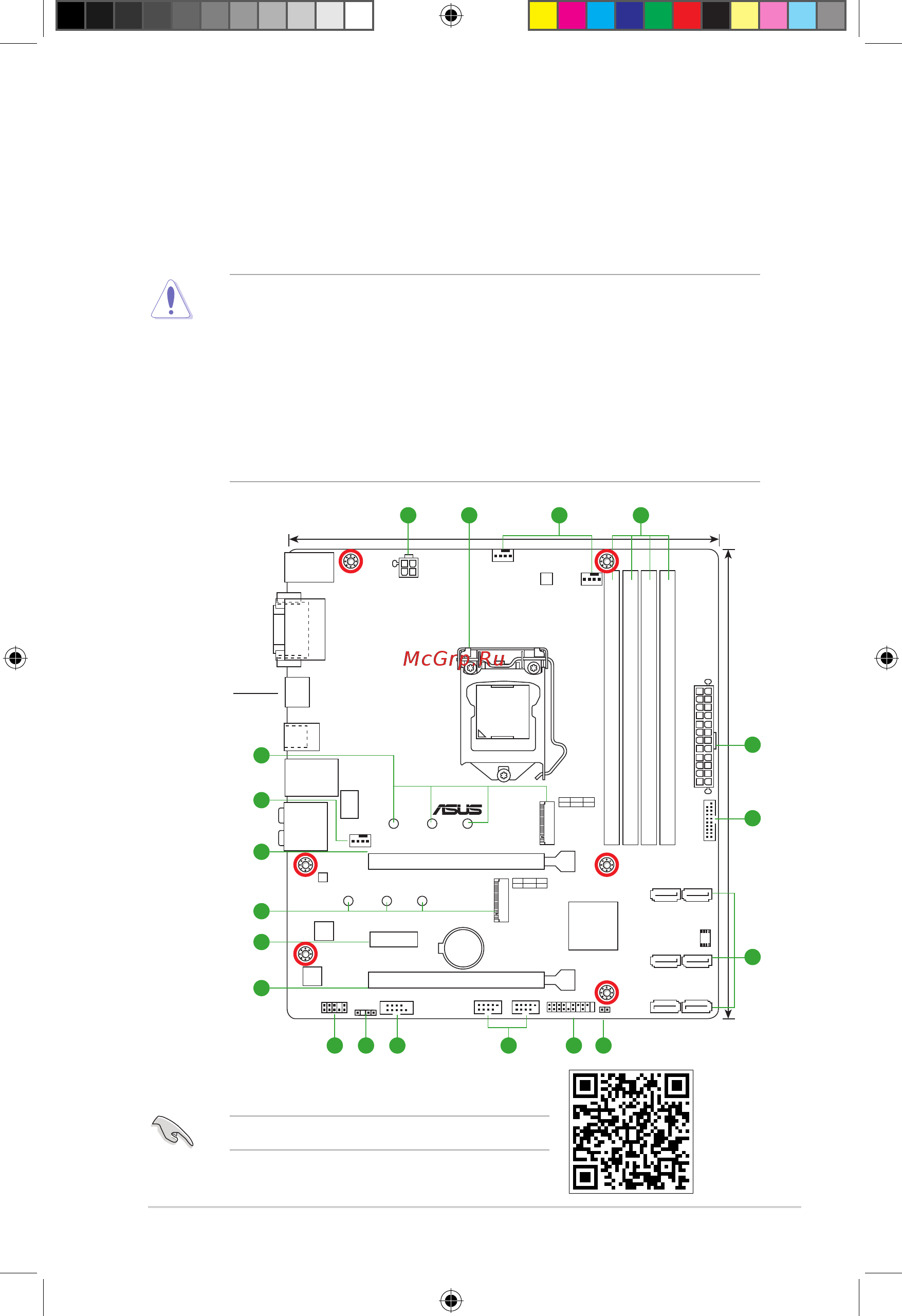

PRIME B250M-PLUS
PCIEX16_1
PCIEX16_2
PCIEX1_1
CLRTC
SPDIF_OUT
AAFP
ATX12V
EATXPWR
CHA_FAN1
CPU_FAN
CHA_FAN2
BATTERY
Super
I/O
ALC
887
Intel
I219-V
DIGI
+VRM
24.4cm(9.6in)
LGA1151
Intel
®
B250
DDR4 DIMM_A1 (64bit, 288-pin module)
2280 2260 2242
2280 2260 2242
M.2_1(SOCKET3)
M.2_2(SOCKET3)
DDR4 DIMM_A2 (64bit,288-pin module)
DDR4 DIMM_B1 (64bit, 288-pin module)
DDR4 DIMM_B2 (64bit, 288-pin module)
AUDIO
KBMS_USB78
HDMI
LAN_USB3_34
USB3_5
USB3_C6
22.4cm(8.8in)
128Mb
BIOS
SATA6G_6 SATA6G_5
SATA6G_4 SATA6G_3
SATA6G_2 SATA6G_1
USB3_12
DVI
VGA
LANGuard
PANEL
USB1112 USB910
COM
PCIE SATA
M.2_1
IRST
X2 V X
PCIE
SATA
M.2_2
IRST
X4 V
X
21 43
1
78
6
5
1
101112
15
9
14
13
3
15
13
ScantheQRcodetogetthedetailedpindenitions.
