Asus ROG STRIX Z270I Gaming [81/95] Chapter 4

STRIX_Z270I GAMING

4-5

Chapter 4

DeletingaRAIDset

Be cautious when deleting a RAID set. You will lose all data on the hard disk drives when

you delete a RAID set.

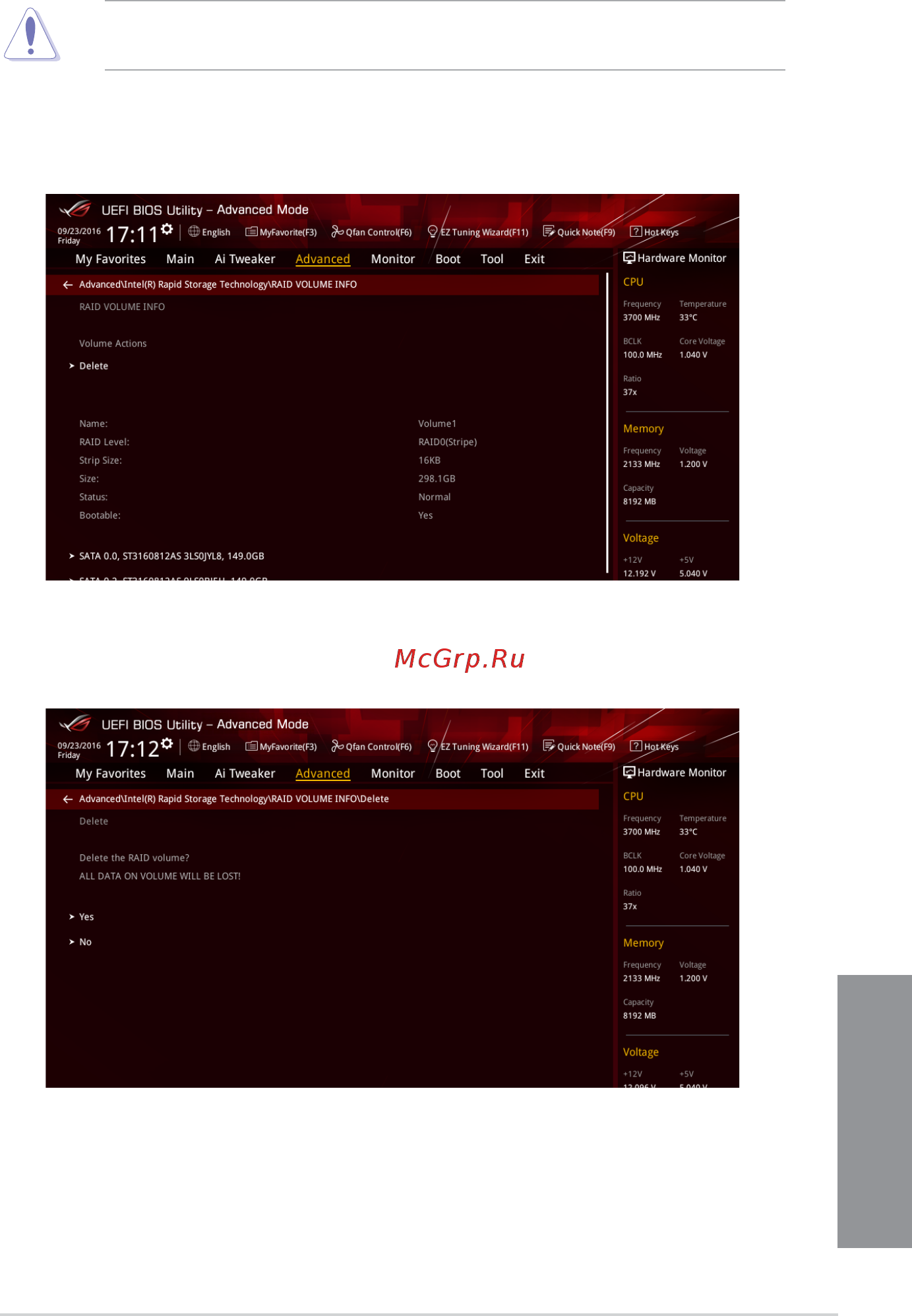

To delete a RAID set:

1. From the Intel

Rapid Storage Technology menu, select the RAID volume you want to

delete and press <Enter>. The following screen appears:

2. When the Delete item is selected, press <Enter>, then select Yes to delete the RAID

volume and return to the Intel

Rapid Storage Technology menu, or select No to

cancel.
