Asus TUF SABERTOOTH 990FX R3.0 [21/142] Chapter 1

ASUS SABERTOOTH 990FX R3.0

1-7

Chapter 1

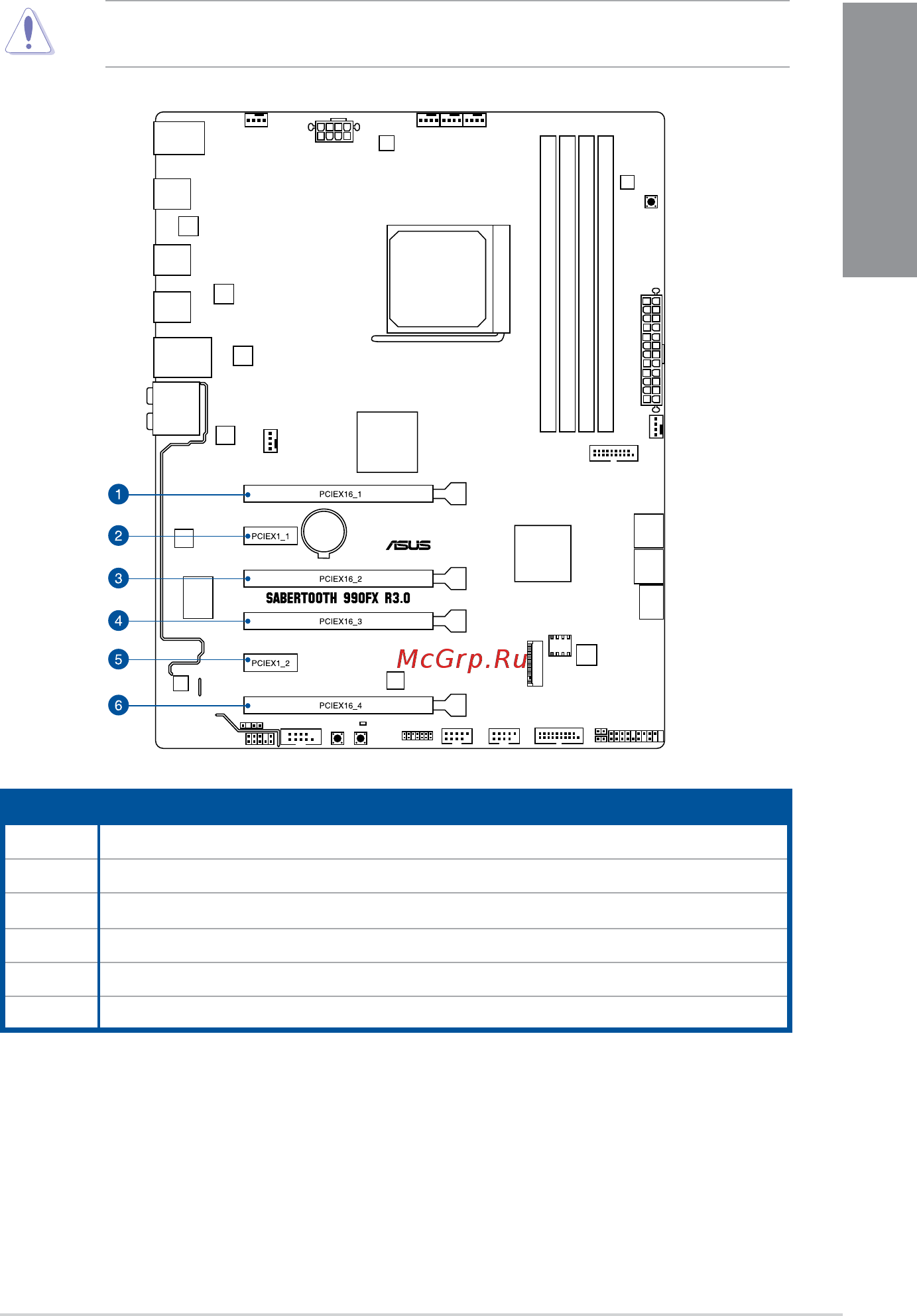

1.1.5 Expansion slots

Unplugthepowercordbeforeaddingorremovingexpansioncards.Failuretodosomay

causeyouphysicalinjuryanddamagemotherboardcomponents.

Slot No. Slot Description

1 PCIe2.0x16_1slot(singleatx16,dualatx16/x16,tripleatx16/x8/x8mode)

2 PCIe2.0x1_1slot

3 PCIe2.0x16_2slot

4 PCIe2.0x16_3slot

5 PCIe2.0x1_2slot

6 PCIe2.0x16_4slot
