ELLIPTICAL CROSS TRAINER ASSEMBLY INSTRUCTIONS

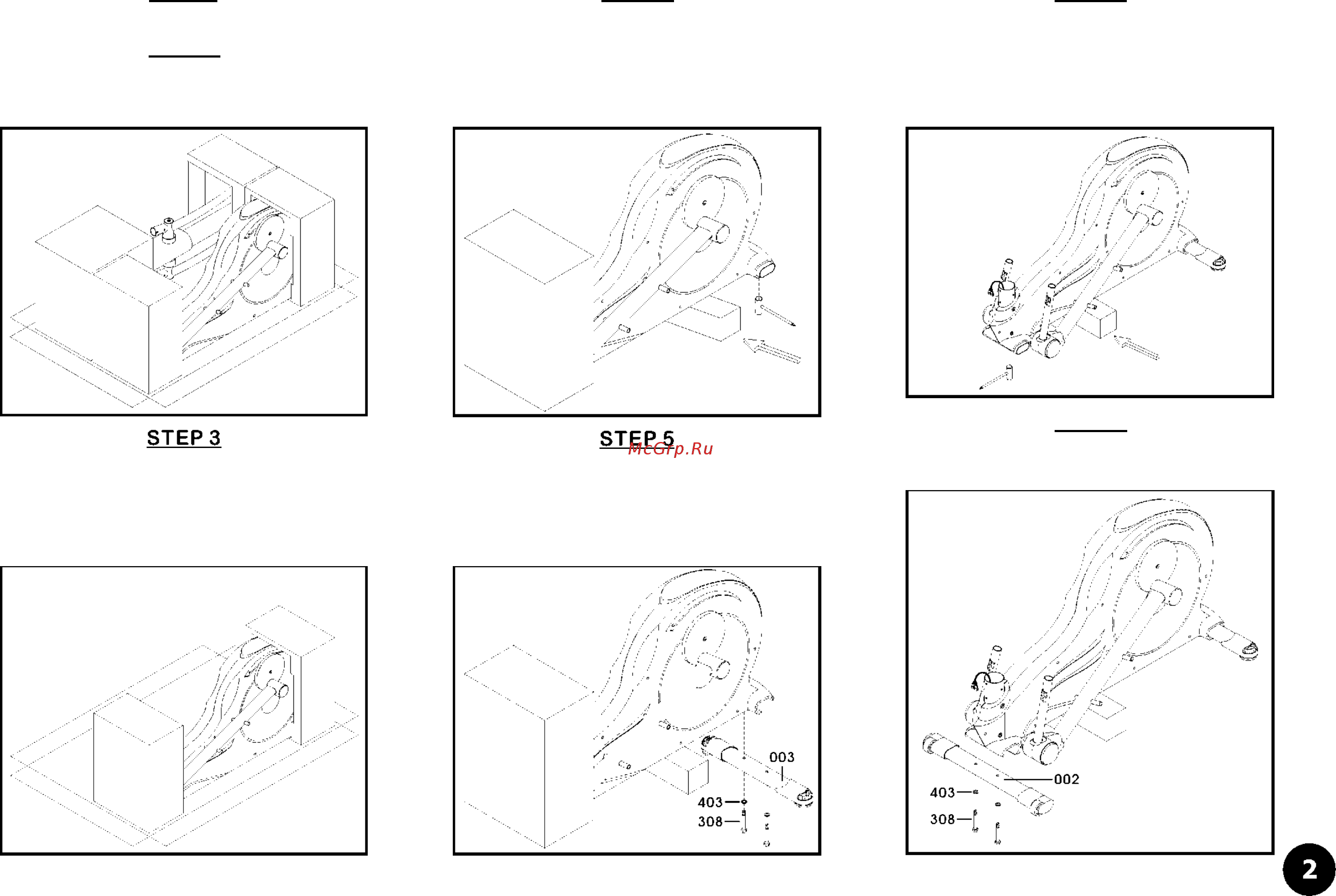

STEP 1

Clear a 2 x Meter by 2.5 Meter working space and place

the ELLIPTICAL CROSS TRAINER carton in the middle.

STEP 2

a) With a sharp knife remove the plastic straps and

carton lid.

b) Cut the carton base so it lies flat on the floor as

shown in the diagram below.

a) Remove all the loose components and move aside

the unwanted parts as shown in the diagram below.

b) Refer to the checklist and check that everything is

present.

NOTE: To protect the ELLIPTICAL CROSS TRAINER

while assembling we suggest that you do not remove the

protective packing material until absolutely necessary.

STEP 4

a) Lift the rear of the machine off the floor and slide a

Polystyrene Block under the machine

b) With the rear end of the machine now raised off

the floor remove the protective polystyrene.

c) Remove the transportation tube with the TOOL

provided as shown in the diagram below.

Assemble the REAR STABILIZER [003] with the same

2 x BOLTS [308] + WASHERS [403] and tighten firmly

with the TOOL provided.

STEP 6

STEP 7

Assemble the FRONT STABILIZER [002] with the same

2 x BOLTS [308] + WASHERS [403] and tighten firmly

with the TOOL provided.

a) Lift the front of the machine off the floor and slide

the same Polystyrene Block under the front of the

machine

b) Remove the protective polystyrene.

c) Remove the transportation tube with the TOOL

provided as shown in the diagram below.
