Infinity Q21 [6/16] Step 16

ELLIPTICAL CROSS TRAINER ASSEMBLY INSTRUCTIONS

STEP 16

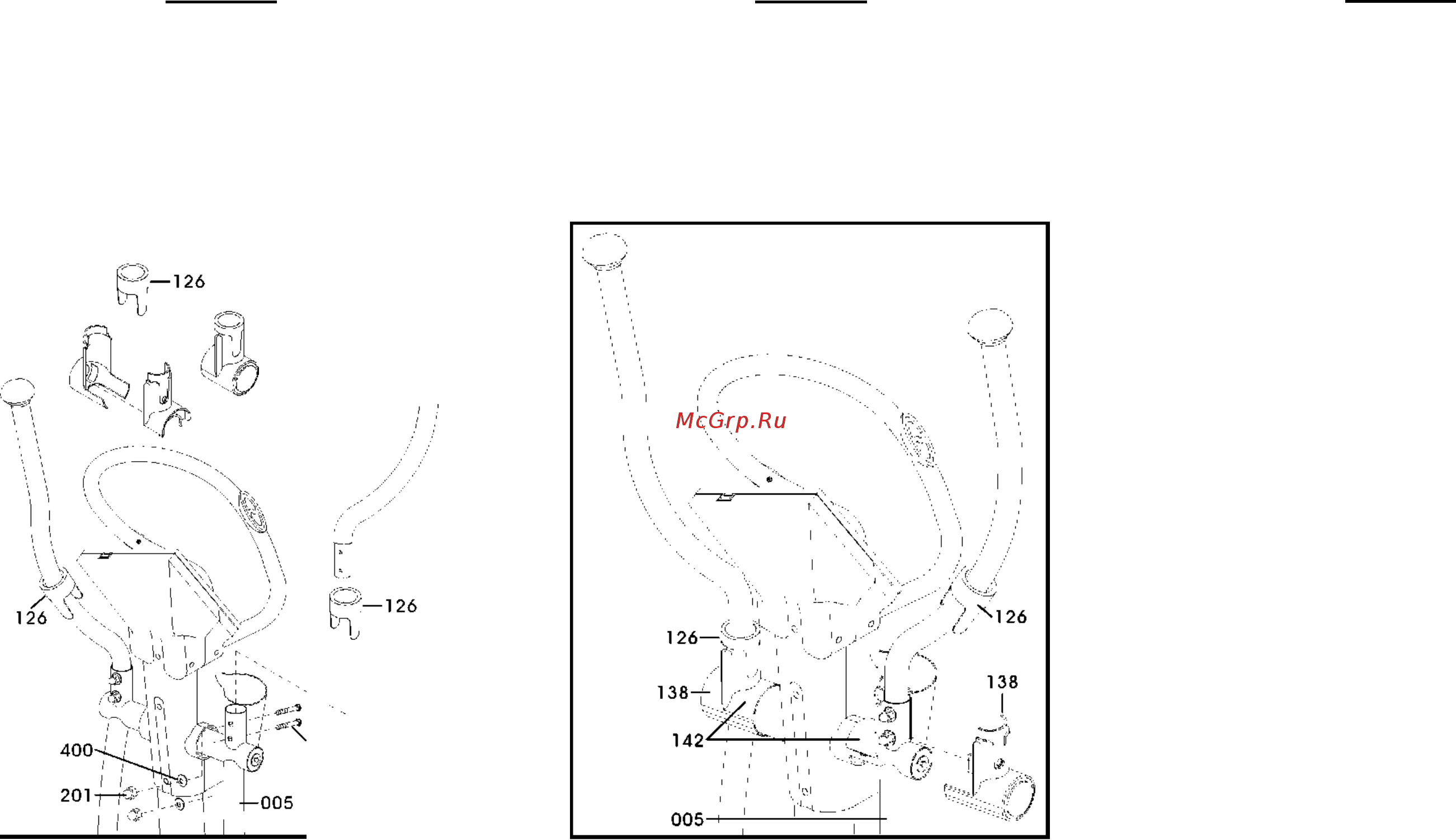

a) Find the TOP PIVOT COVER ASSEMBLY and

remove the CAP[126] then place the CAP[126] onto

the LEFT DUAL ACTION HANDLE [007].

b) Insert the LEFT DUAL ACTION HANDLE [007] into

the top of the LEFT DUAL ACTION ARM [005]. Note

the Left Sticker.

c) Secure with 2 x BOLT [304] + 2 x WASHER [400]

+ 2 x NUT [201] and tighten firmly being earful NOT

to overtighten.

d) Repeat the same assembly procedure for the right side.

007-

—TOP PIVOT

COVER

ASSEMBLY

304

STEP 17

a) With the remaining TOP PIVOT COVER ASSEMBLY

fit the INNER [142] to the inside of the LEFT DUAL

ACTION ARM [005] as shown in the diagram below.

b) Slide the OUTER [138] into the INNER [142] taking care

to ensure that these two parts interlock correctly and are

centrally seated on the LEFT DUALACTION ARM [005].

c) Slide down the CAP[126] which will ensure that the 3 x

parts that make up the TOP PIVOT COVER ASSEMBLY

firmly hold each other in place.

STEP 18

a) Connect the AC ADAPTOR [712] into the mains

powersocket.

b) Connect the ADAPTOR PLUG [712] into the

ADAPTOR SOCKET either at the front or rear of the

ELLIPTICAL CROSS TRAINER depending on your

preference.

c) The COMPUTER [713] should now be working. If not

then re-plug all the COMPUTER CABLES as shown

inSteps9&15.
