ELLIPTICAL CROSS TRAINER ASSEMBLY INSTRUCTIONS

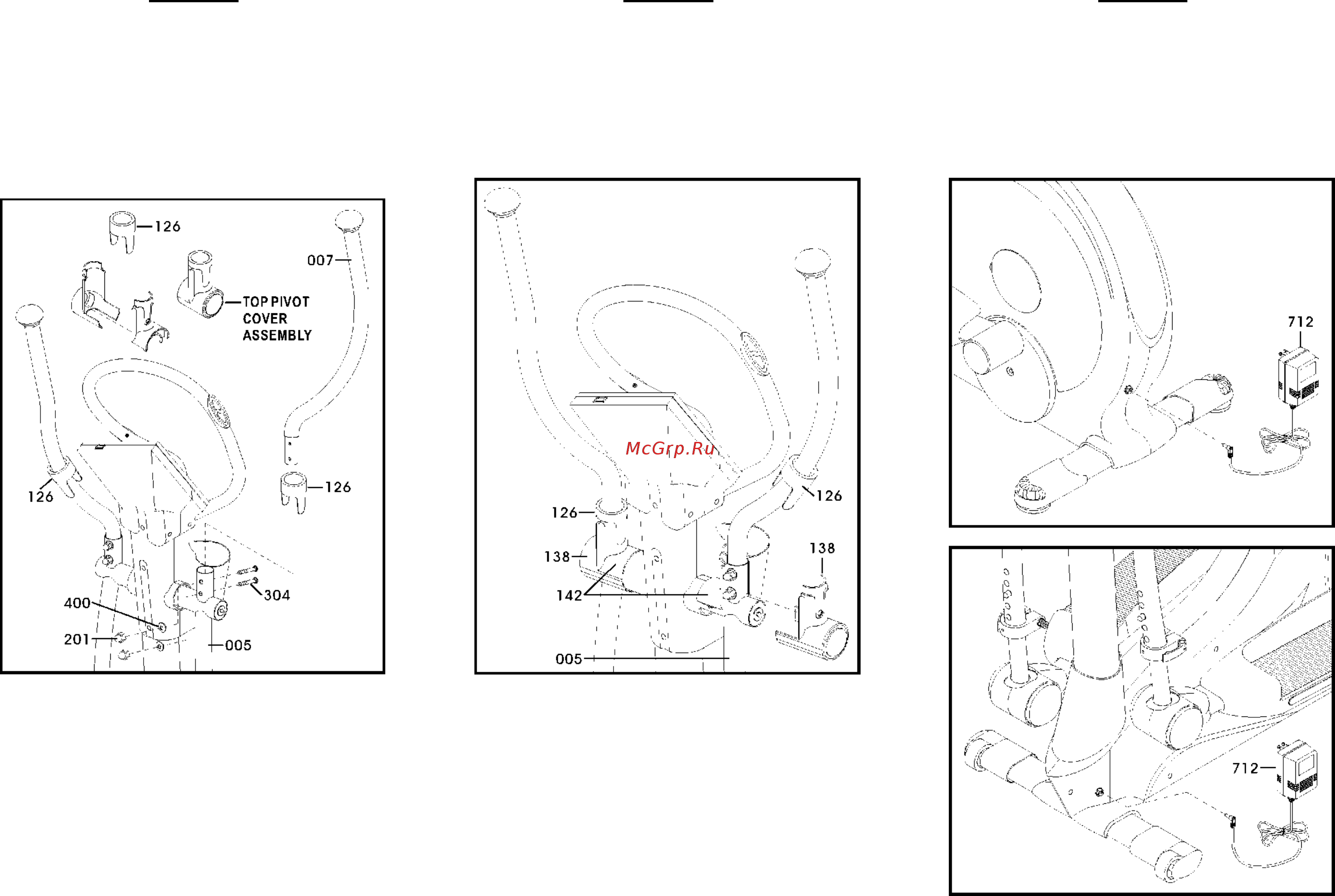

STEP 16

a) Find the TOP PIVOT COVER ASSEMBLY and

remove the CAP[126] then place the CAP[126] onto

the LEFT DUAL ACTION HANDLE [007].

b) Insert the LEFT DUAL ACTION HANDLE [007] into

the top of the LEFT DUAL ACTION ARM [005]. Note

the Left Sticker.

c) Secure with 2 x BOLT [304] + 2 x WASHER [400]

+ 2 x NUT [201] and tighten firmly being carful NOT

to over tighten.

d) Repeat the same assembly procedure for the right side.

STEP 17

a) With the remaining TOP PIVOT COVER ASSEMBLY

fit the INNER [142] to the inside of the LEFT DUAL

ACTION ARM [005] as shown in the diagram below.

b) Slide the OUTER [138] into the INNER [142] taking care

to ensure that these two parts interlock correctly and are

centrally seated on the LEFT DUAL ACTION ARM [005].

c) Slide down the CAP[126] which will ensure that the 3 x

parts that make up the TOP PIVOT COVER ASSEMBLY

firmly hold each other in place.

STEP 18

a) Connect the AC ADAPTOR [712] into the mains

power socket.

b) Connect the ADAPTOR PLUG [712] into the

ADAPTOR SOCKET either at the front or rear of the

ELLIPTICAL CROSS TRAINER depending on your

preference.

c) The COMPUTER [713] should now be working. If not

then re-plug all the COMPUTER CABLES as shown

in Steps 9 &15.
