ELLIPTICAL CROSS TRAINER ASSEMBLY INSTRUCTIONS

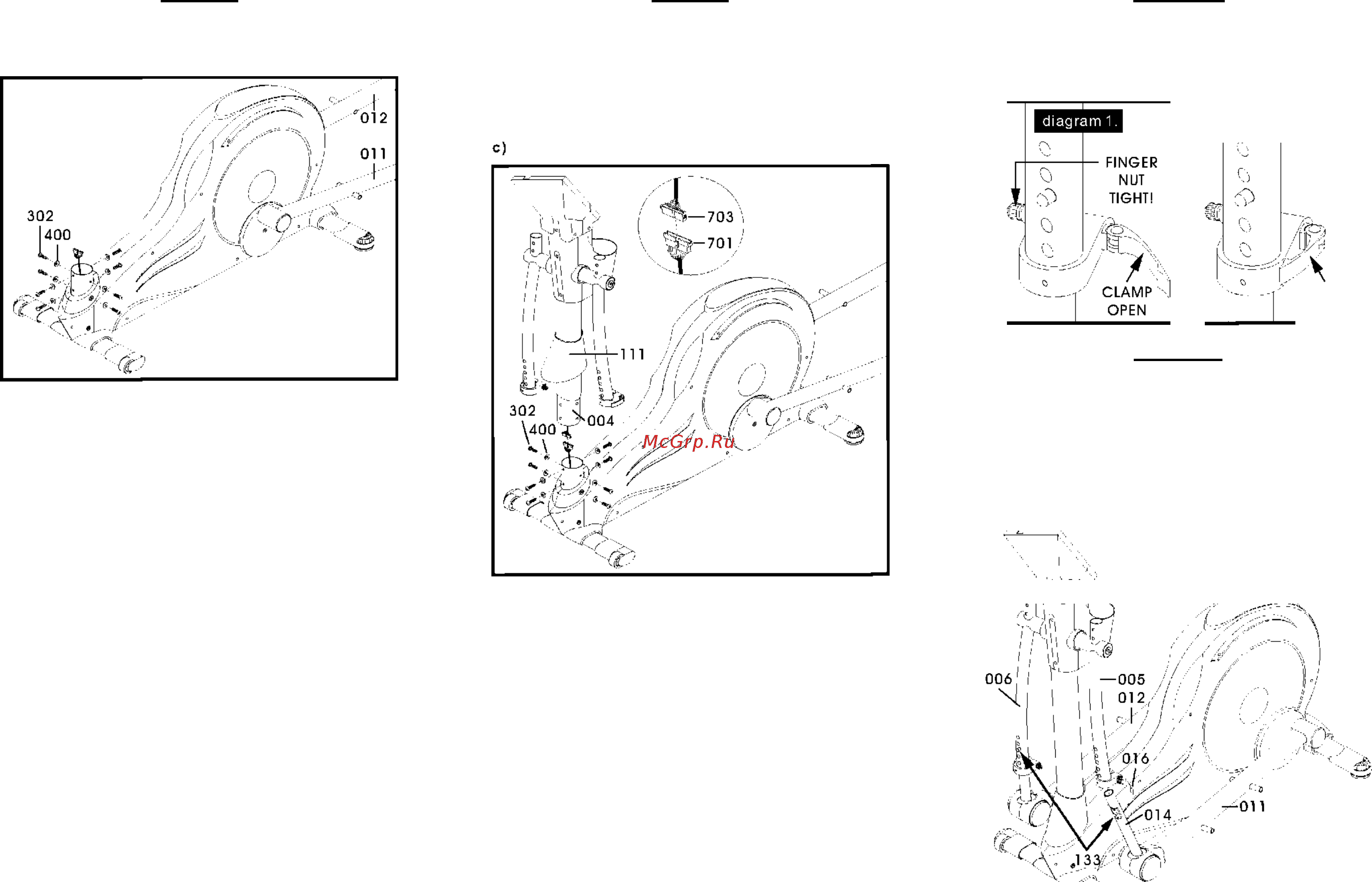

STEP 8

a) Rotate both FOOT PEDAL TUBES [011 &012]outof

the way as shown in the diagram below.

b) Remove all 8 x BOLT [302] + WASHER [400].

STEP 9

a) With another person helping you carefully lift the

UPRIGHT TUBE [004] until it is vertical while the other

person joins the COMPUTER CABLE [703] to MOTOR

with CABLE [701] Plugs as shown in the diagram below.

b) Slide the UPRIGHT TUBE [004] into the MAIN

FRAME [001] and secure with the same 8 x BOLT

[302] + WASHER [400] and tighten firmly.

Slidedown the HATCOVER[111] and pushfirmly.

STEP 10

diagram 2.

CLAMP

CLOSED

STEP 11

a) Rotate back one of the FOOT PEDAL TUBES [011 or

012] and slide the ANGLE ADJUSTMENT TUBE [014]

into the DUAL ACTION ARM [005 or 006] accordingly.

b) Press the SAFETY BUTTON [133] and slide the ANGLE

ADJUSTMENT TUBE [014] until the SAFETY BUTTON

[133] pops out of one of the 5 x holes in the DUAL

ACTION ARMS [005 or 006] accordingly. To begin with

we suggest the No.3 hole setting. Close the CLAMP [016].

c) Repeat the same assembly instructions for the other side.

Release CLAMP [016] as shown in diagram 1. below.

Then tighten the FINGER NUT until finger tight.

WARNING: For safety reasons it is extremely important

that the CLAMP is tight and fully closed before using the

ELLIPTICAL CROSS TRAINER as shown in diagram 2.
