ELLIPTICAL CROSS TRAINER ASSEMBLY INSTRUCTIONS

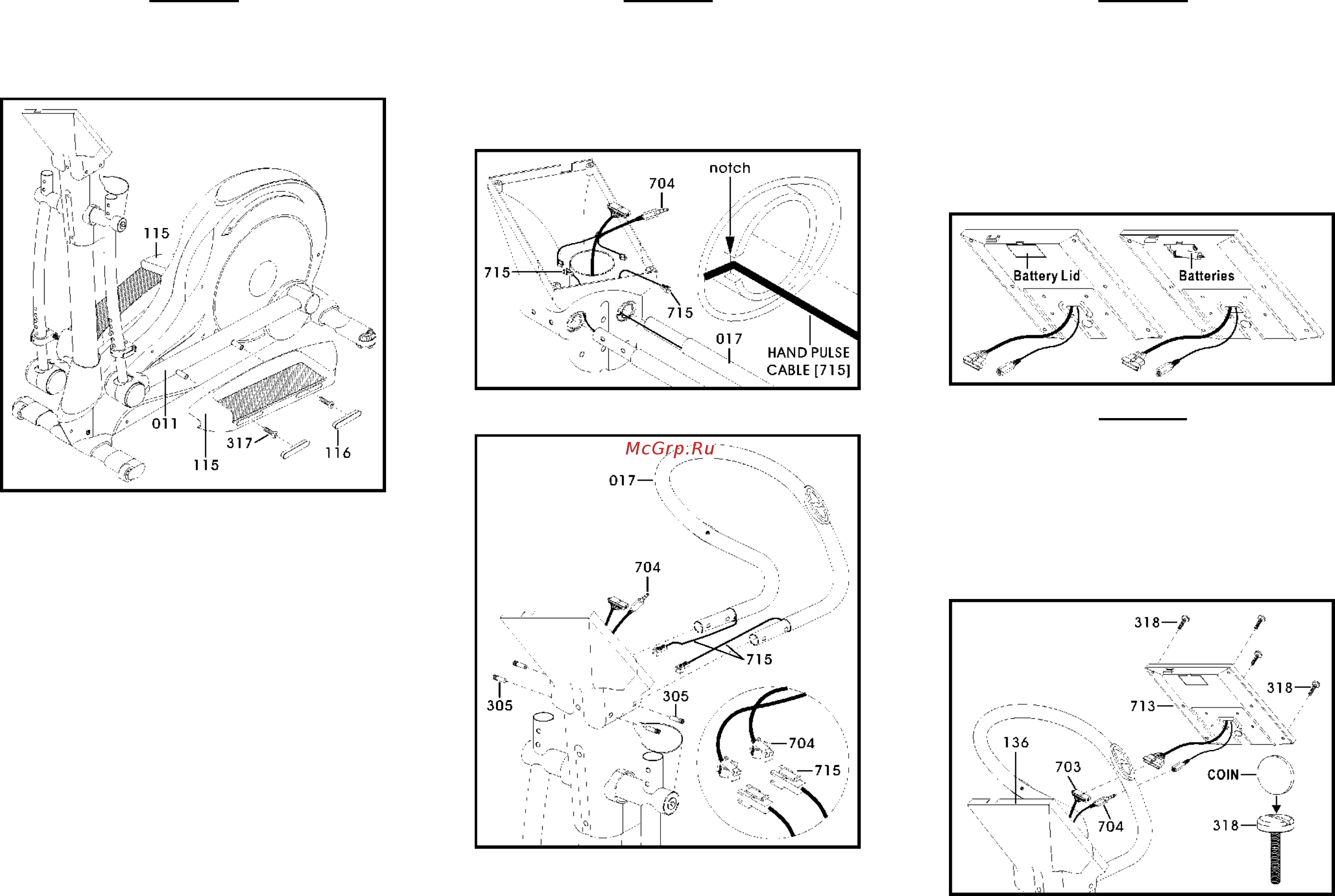

STEP 12

a) Slide the FOOT PEDAL [115] onto the FOOT PEDAL

TUBE[011 &012].

b) Secure both FOOT PEDAL [115] with 4 x BOLT [317]

and tighten firmly.

c) Assemble 4 x PLUG [116].

STEP 13

a) Align the STATIONARY HANDLEBAR [017] and

feed the HAND PULSE CABLE [715] through the

HANDLEBAR COVER [135].then slide the

STATIONARY HANDLEBAR [01 7]into the UPRIGHT

TUBE [004] being careful NOT to damage the

HAND PULSE CABLE [715]. There are notches in

the UPRIGHT TUBE [004] for the HAND PULSE

CABLE [715] check that the HAND PULSE CABLE

[715] is correctly aligned to the notches.

b) Secure STATIONARY HANDLEBAR [017] with 4 x BOLT

[305]. Be careful not to cross-thread the BOLT [305].

c) Connect both plugs of 2 x HAND PULSE CABLE [704] to

2 x HAND PULSE CABLE [715].

STEP 14

STEP 15

a) Position the COMPUTER [713] over the

HANDLEBAR COVER [136] and connect both plugs

of the COMPUTER [713] to COMPUTER CABLE

[703] and HAND PULSE CABLE [704].

b) Carefully position the COMPUTER [713] on top of

the HANDLEBAR COVER [136] and secure with 4 x

BOLT[318]. Note that the 4 x BOLT [318] haveaslot

designed to fit a standard coin. So if finger tight is not

sufficient then use a standard coin to fully tighten the

4 x BOLT [318] but do NOT over tighten.

Although all the ELLIPTICAL CROSS TRAINER

Computers run on AC Adaptor some of the Computers

still require batteries to keep the memory alive.

Try to remove the small battery lid on the back of the

Computer. If it does NOT release easily then the

Computer does NOT require batteries. If the battery lid

does remove easily then fit the computer with the

supplied two pieces of R6P * SUM3 * SIZE"AA" * 1.5V

batteries. Insure the batteries are correctly positioned

and the battery springs are in proper contact with

batteries. Replace the battery cover and insure it is

tightly closed.
