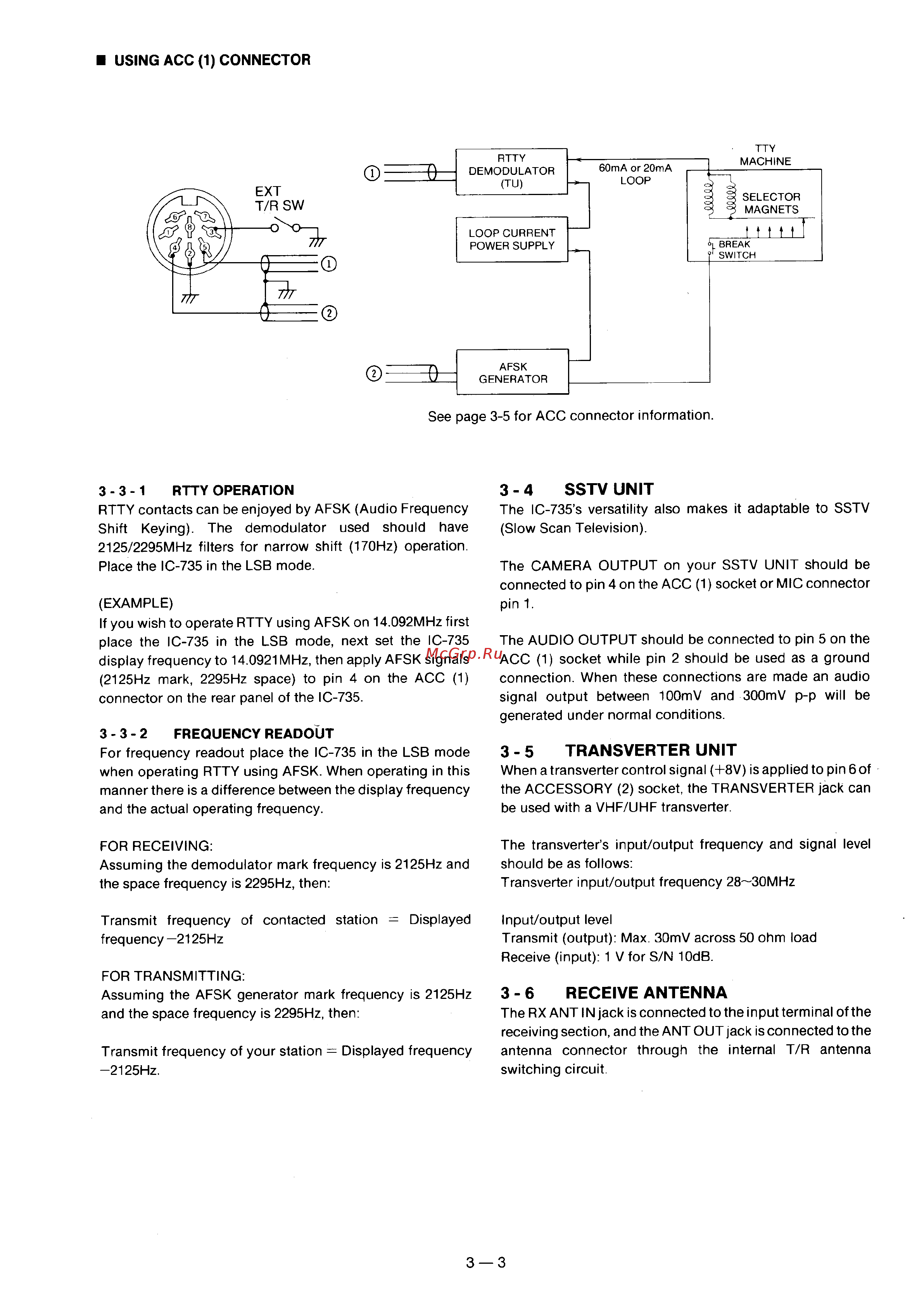

USING ACC 1 CONNECTOR See page 3 5 for ACC connector information 3 3 1 RTTY OPERATION RTTY contacts can be enjoyed by AFSK Audio Frequency Shift Keying The demodulator used should have 2125 2295MHz filters for narrow shift 170Hz operation Place the IC 735 in the LSB mode EXAMPLE If you wish to operate RTTY using AFSK on 14 092MHz first place the IC 735 in the LSB mode next set the IC 735 display frequency to 14 0921 MHz then apply AFSK signals 2125Hz mark 2295Hz space to pin 4 on the ACC 1 connector on the rear panel of the IC 735 3 3 2 FREQUENCY READOUT For frequency readout place the IC 735 in the LSB mode when operating RTTY using AFSK When operating in this manner there is a difference between the display frequency and the actual operating frequency 3 4 SSTV UNIT The IC 735 s versatility also makes it adaptable to SSTV Slow Scan Television The CAMERA OUTPUT on your SSTV UNIT should be connected to pin 4 on the ACC 1 socket or MIC connector pin 1 The AUDIO OUTPUT should be connected to pin 5 on the ACC 1 socket while pin 2 should be used as a ground connection When these connections are made an audio signal output between 100mV and 300mV p p will be generated under normal conditions 3 5 TRANSVERTER UNIT When a transverter control signal 8V is applied to pin 6 of the ACCESSORY 2 socket the TRANSVERTER jack can be used with a VHF UHF transverter FOR RECEIVING Assuming the demodulator mark frequency is 2125Hz and the space frequency is 2295Hz then The transverter s input output frequency and signal level should be as follows Transverter input output frequency 28 30MHz Transmit frequency frequency 2125Hz Input output level Transmit output Max 30mV across 50 ohm load Receive input 1 V for S N 10dB of contacted station Displayed FOR TRANSMITTING Assuming the AFSK generator mark frequency is 2125Hz and the space frequency is 2295Hz then Transmit frequency of your station Displayed frequency 2125Hz 3 6 RECEIVE ANTENNA The RX ANT IN jack is connected to the input terminal of the receiving section and the ANT OUT jack is connected to the antenna connector through the internal T R antenna switching circuit 3 3
