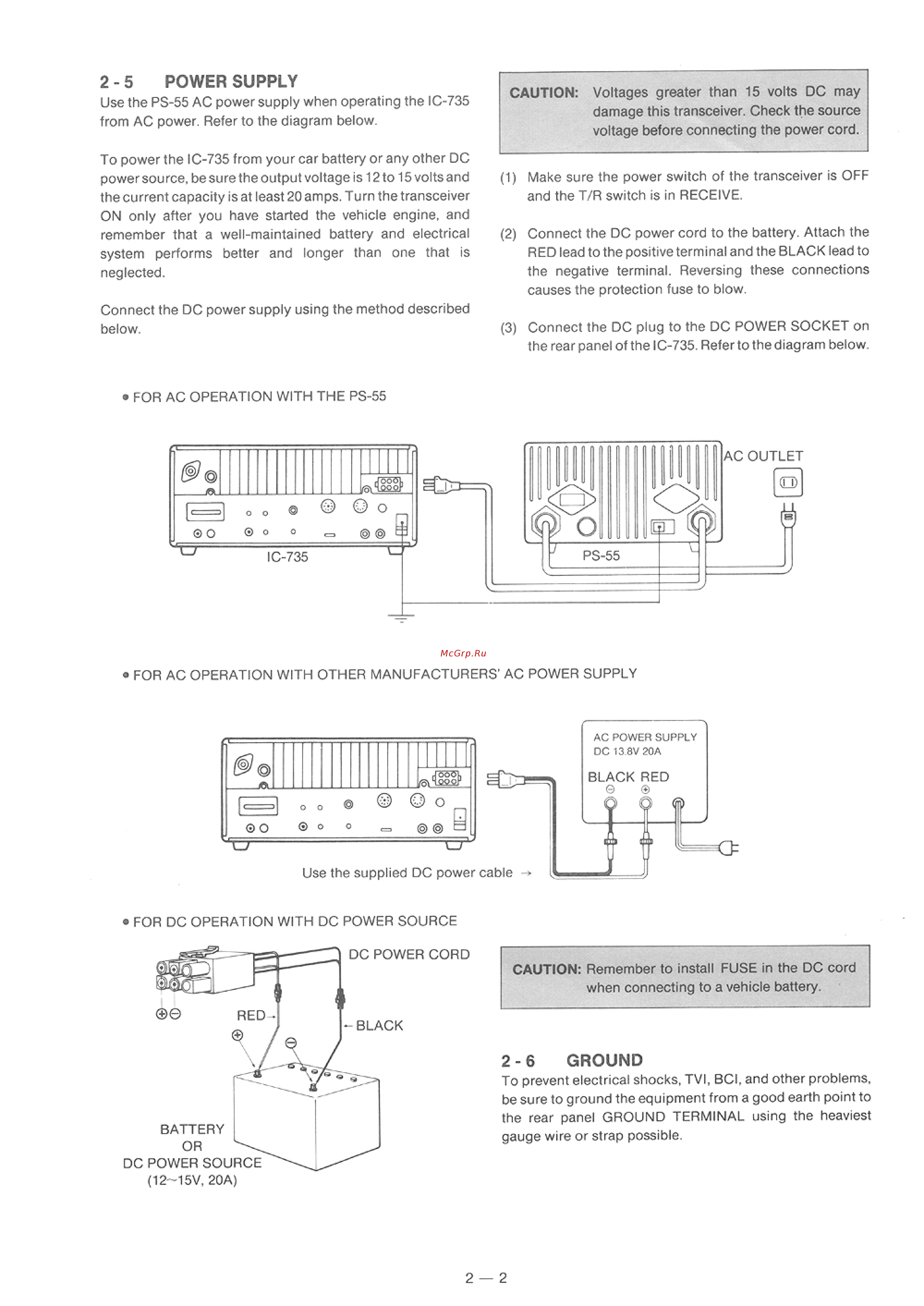

2 5 POWERSUPPLY Use the PS 55 AC power supply when operating the IC 735 CAUTION Voltages greater than 15 volts DC may damage this transceiver Check the source from AC power Refer to the diagram below voltage before connecting the power cord To power the IC 735 from your car battery or any other DC power source be sure the output voltage is 12 to 15 voltsand the current capacity is at least 20 amps Turn the transceiver ON only after remember that system you performs a have started the well maintained better and vehicle battery longer than 1 Make sure the power switch of the transceiver is OFF and the T R switch is in RECEIVE engine and and electrical one that is 2 Connect the DC power cord to the battery Attach the RED lead to the positive terminal and the BLACK lead to the neglected negative terminal Reversing these connections causes the protection fuse to blow Connect the DC power supply using the method described 3 Connect the DC plug to the DC POWER SOCKET on below the rear panel of the IC 735 Refer to the diagram below FOR AC OPERATION WITH THE PS 55 FOR AC OPERATION WITH OTHER MANUFACTURERS AC POWER SUPPLY FOR DC OPERATION WITH DC POWER SOURCE CAUTION Remember to install FUSE in the DC cord when connecting to a vehicle battery 2 6 GROUND To prevent electrical shocks TVI BCI and other problems be sure to ground the equipment from a good earth point to the rear panel GROUND TERMINAL using the heaviest gauge wire or strap possible 12 15V 20A 2 2
