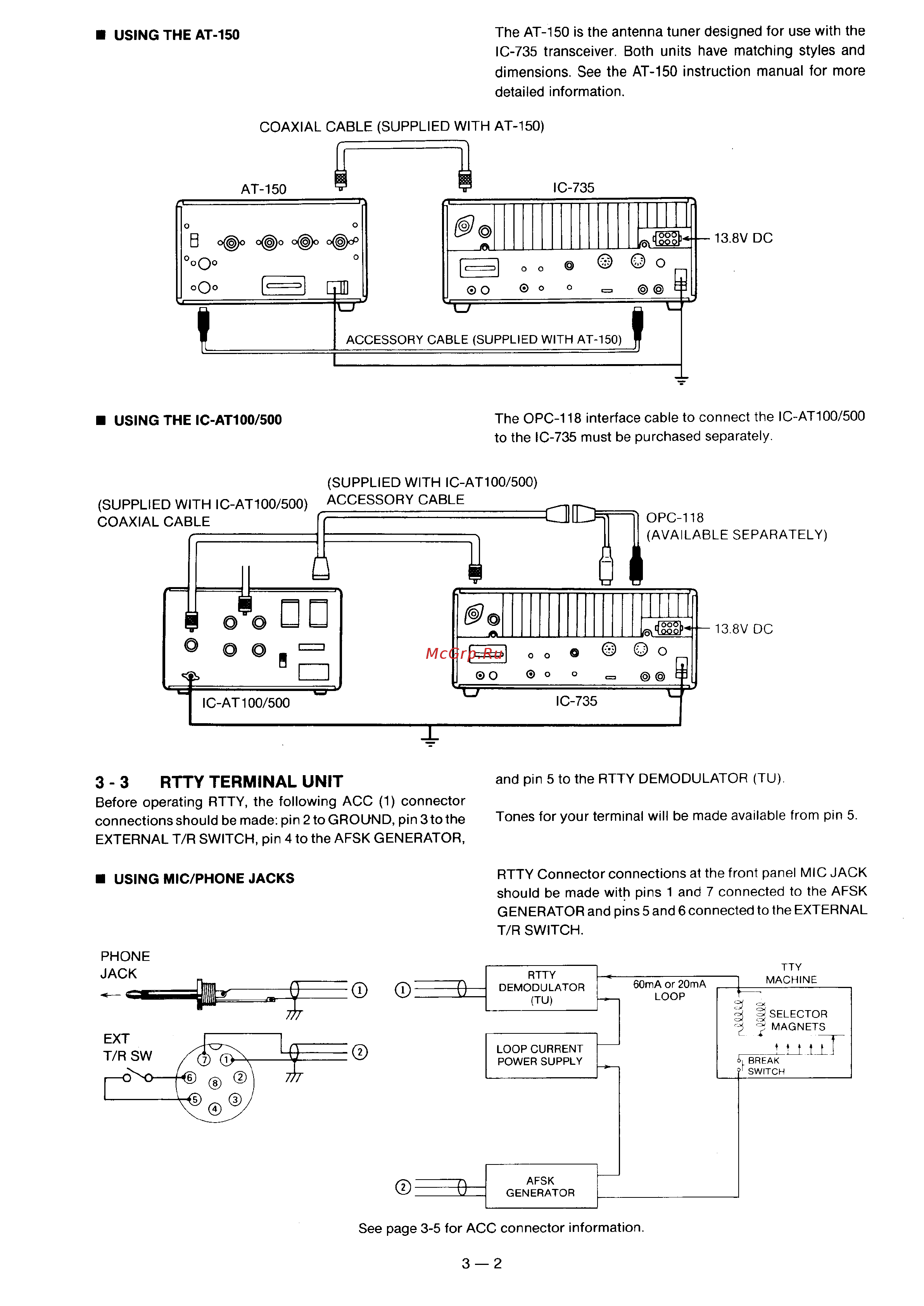

The AT 150 is the antenna tuner designed for use with the IC 735 transceiver Both units have matching styles and USING THE AT 150 dimensions See the AT 150 instruction manual for more detailed information COAXIAL CABLE SUPPLIED WITH AT 150 The OPC 118 interface cable to connect the IC AT100 500 to the IC 735 must be purchased separately USING THE IC AT100 500 SUPPLIED WITH IC AT100 500 3 3 RTTY TERMINAL UNIT and pin 5 to the RTTY DEMODULATOR TU Before operating RTTY the following ACC 1 connector connections should be made pin 2 to GROUND pin 3 to the EXTERNAL T R SWITCH pin 4 to the AFSK GENERATOR Tones for your terminal will be made available from pin 5 USING MIC PHONE JACKS RTTY Connector connections at the front panel MIC JACK should be made with pins 1 and 7 connected to the AFSK GENERATOR and pins 5 and 6 connected to the EXTERNAL T R SWITCH See page 3 5 for ACC connector information 3 2
