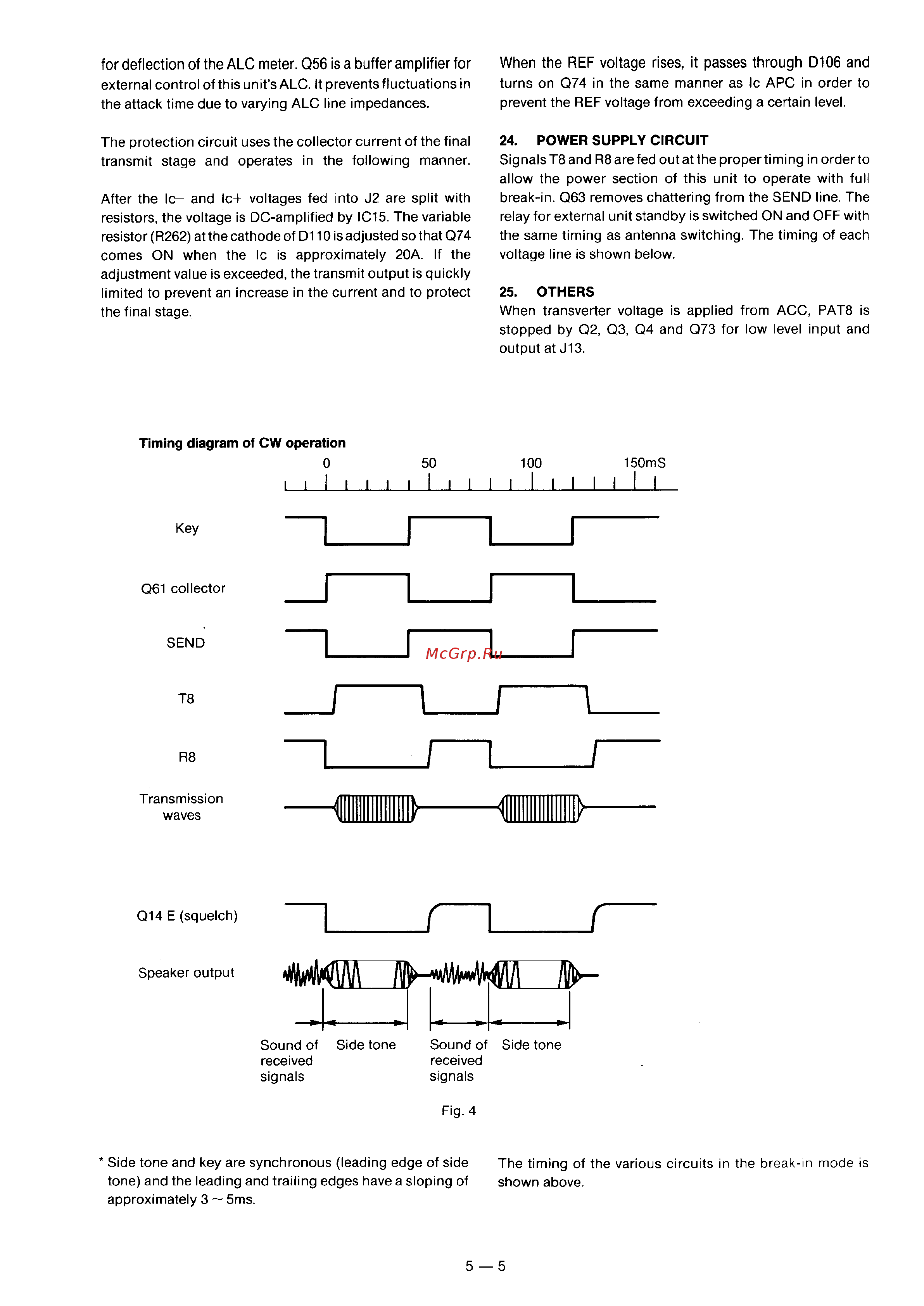

for deflection of the ALC meter Q56 is a buffer amplifier for external control of this unit s ALC It prevents fluctuations in the attack time due to varying ALC line impedances The protection circuit uses the collector current of the final transmit stage and operates in the following manner After the lc and lc voltages fed into J2 are split with resistors the voltage is DC amplified by IC15 The variable resistor R262 at the cathode of D110 is adjusted so that Q74 comes ON when the lc is approximately 20A If the adjustment value is exceeded the transmit output is quickly limited to prevent an increase in the current and to protect the final stage When the REF voltage rises it passes through D106 and turns on Q74 in the same manner as lc APC in order to prevent the REF voltage from exceeding a certain level 24 POWER SUPPLY CIRCUIT Signals T8 and R8 are fed out at the proper timing in order to allow the power section of this unit to operate with full break in Q63 removes chattering from the SEND line The relay for external unit standby is switched ON and OFF with the same timing as antenna switching The timing of each voltage line is shown below 25 OTHERS When transverter voltage is applied from ACC PAT8 is stopped by Q2 03 Q4 and 073 for low level input and output at J13 Timing diagram of CW operation 0 100 50 150mS IIIIIIII I I I I I I________ I JL Key Q61 collector SEND T8 R8 Transmission waves BDliB Q14 E squelch Speaker output Sound of Side tone Sound of Side tone received received signals signals Fig 4 Side tone and key are synchronous leading edge of side The timing of the various circuits in the break in mode is tone and the leading and trailing edges have a sloping of shown above approximately 3 5ms 5 5
