English
93
Fatal1ty X299 Professional Gaming i9 Series
Secure Backup UEFI
Whenever one of the ROM images are outdated or corrupted, switch to the other
ash ROM and execute Secure Backup UEFI to duplicate the current working ROM
image to the secondary ash ROM.

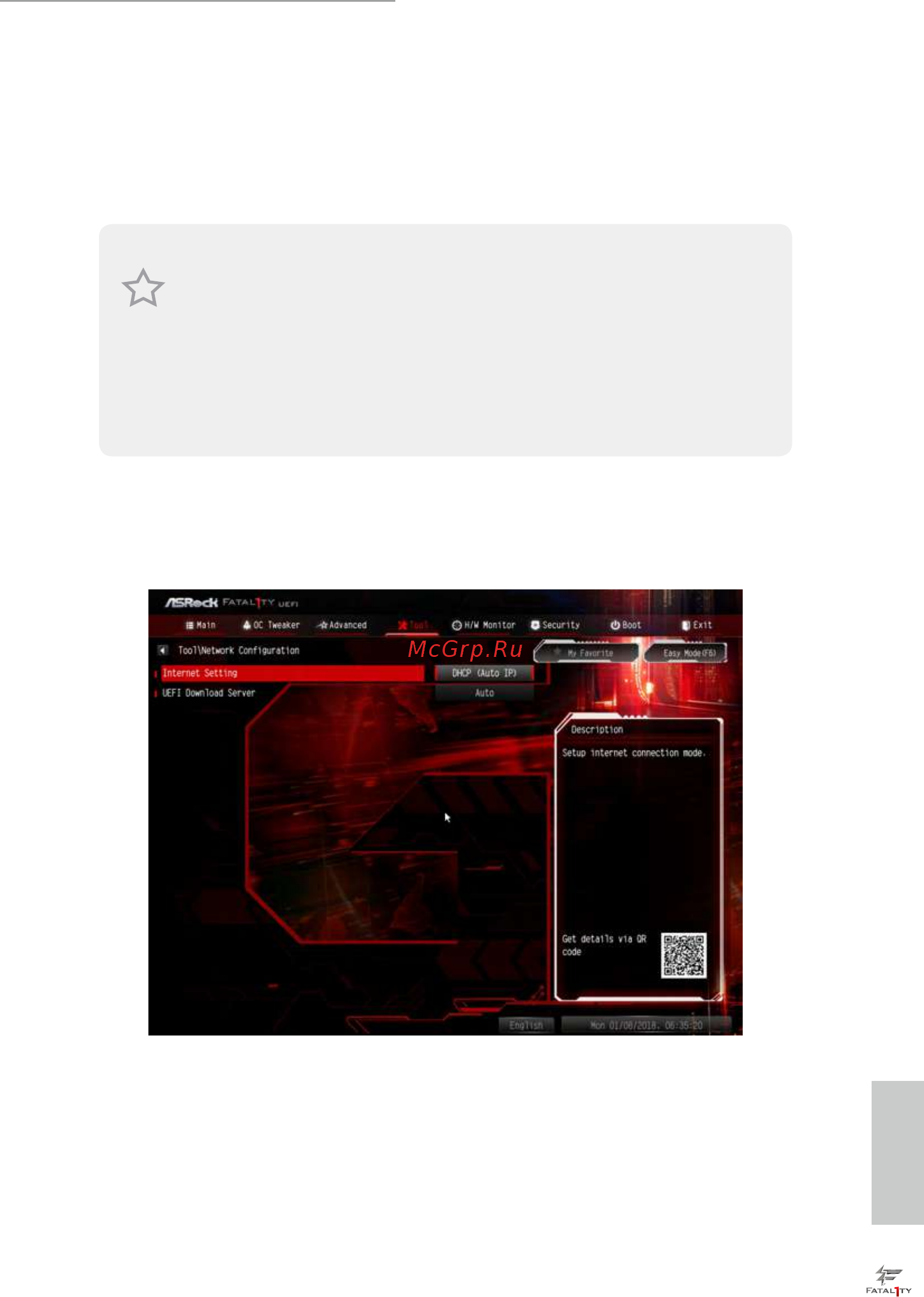

Network Conguration
Use this to congure internet connection settings for Internet Flash.
Internet Setting
Enable or disable sound eects in the setup utility.
UEFI Download Server
Select a server to download the UEFI rmware.
is motherboard has two BIOS chips, an active BIOS (BIOS_A) and a backup
BIOS (BIOS_B), which enhances the safety and stability of your system. Use “Secure
Backup UEFI” to duplicate a working copy of the BIOS les to the active BIOS to
ensure normal system operation. Normally, the system will work on the active BIOS.
However if the active BIOS is corrupted or damaged, aer several failed boot
attempts, the backup BIOS will take over. For safety issues, users are not able to
update the backup BIOS manually. Users may refer to the BIOS LEDs (BIOS_A_LED
or BIOS_B_LED) to identify which BIOS is currently activated.
