ASRock FATAL1TY X299 PROFESSIONAL GAMING I9 [37/109] English
![ASRock FATAL1TY X299 PROFESSIONAL GAMING I9 [37/109] English](/views2/1252743/page37/bg25.png)
English
29
Fatal1ty X299 Professional Gaming i9 Series
GND
GND
+3VSB

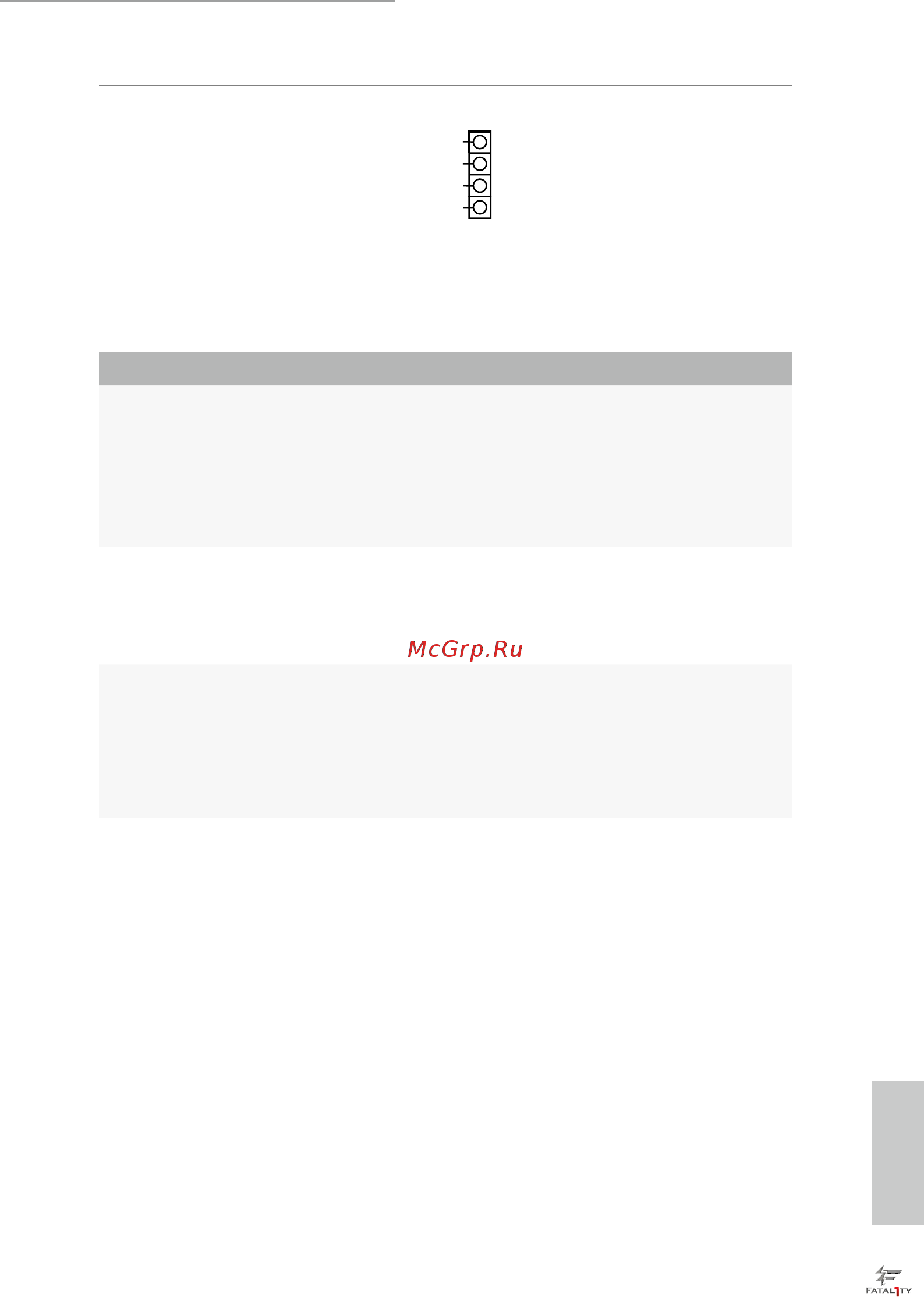

VROC RAID KEY
1
Virtual RAID On CPU
Header
(4-pin VROC1)
(see p.8, No. 10)
is connector supports
Intel®
Virtual RAID on CPU and
NVME/AHCI RAID on CPU
PCIE.
With the introduction of the Intel VROC product, there are three modes of operation:
SKU HW key required Key features
Pass-thru Not needed
• Pass-thru only (no RAID)
• 3rd party NVMe SSD support
• LED Management
• Hot Plug Support
• RAID 0 support for Intel Fultondale NVMe SSDs
Standard Standard Key
• Pass-thru SKU features
• RAID 0, 1, 10
• 3rd party NVMe SSD support
Premium Premium Key
• Standard SKU features
• RAID 5
• RAID 5 Write Hole Closure
• 3rd party NVMe SSD support
*For further details on VROC, please refer to the ocial information released by Intel.
