English
30

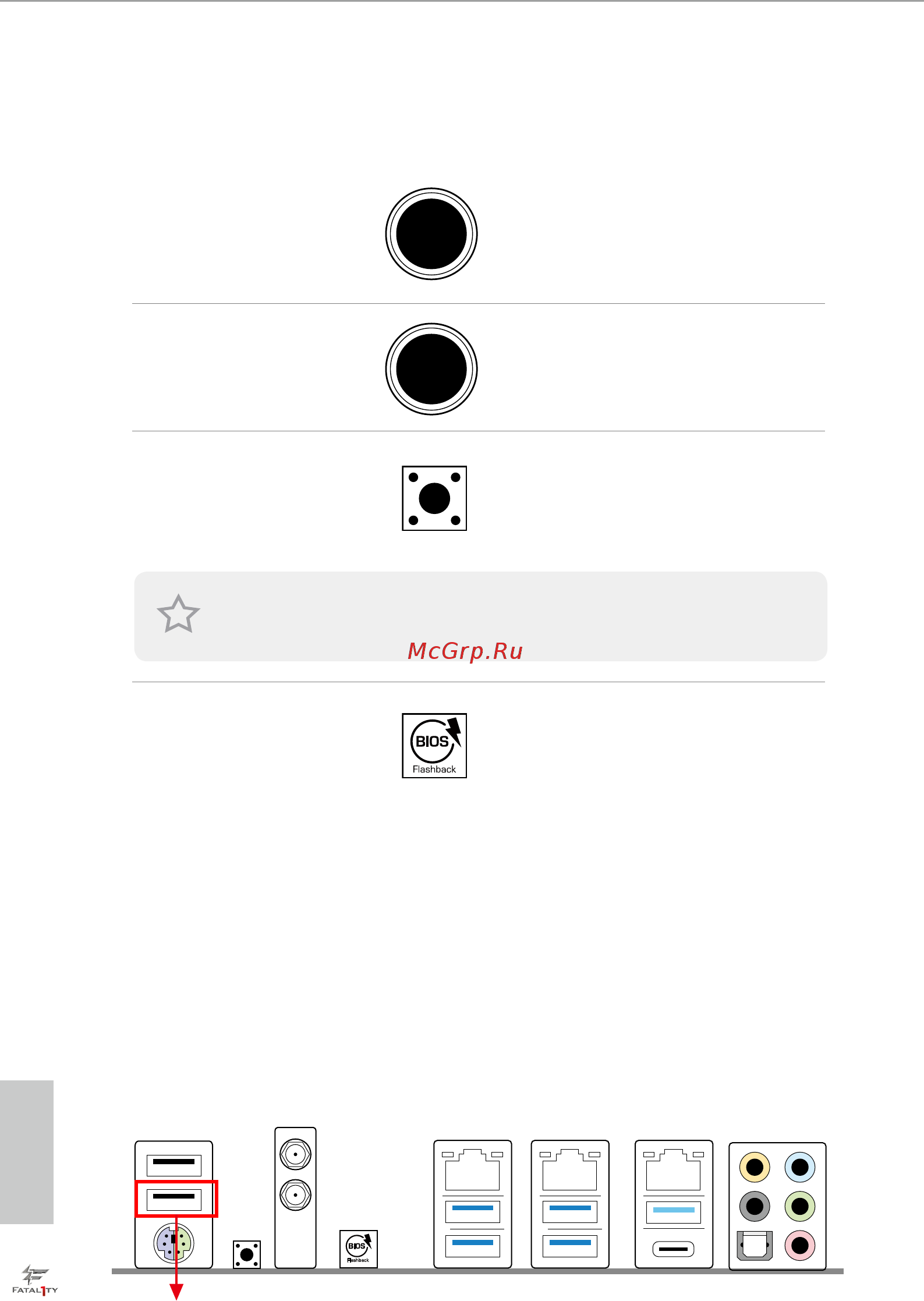

2.7 Smart Switches
e motherboard has four smart switches: Power Switch, Reset Switch, Clear CMOS
Switch and one BIOS Flashback Switch, allowing users to quickly turn on/o the
system, reset the system, clear the CMOS values or ash the BIOS.
Power Switch
(PWRBTN)
(see p.8, No. 23)
Power Switch allows users
to quickly turn on/o the
system.
Reset Switch
(RSTBTN)
(see p.8, No. 22)
Reset Switch allows
users to quickly reset the
system.
Clear CMOS Switch
(CLRCBTN)
(see p.10, No. 18)
Clear CMOS Switch
allows users to quickly
clear the CMOS values.
BIOS Flashback Switch
(BIOS_FB1)
(see p.10, No. 16)
BIOS Flashback Switch allows
users to ash the BIOS.
Power
Reset
is function is workable only when you power o your computer and unplug the power
supply.
USB BIOS Flashback port
To use USB BIOS Flashback function, press the BIOS Flashback Switch for three seconds. Please
follow the steps below.
1. Download the latest BIOS le from ASRock's website : http://www.asrock.com.
2. Copy the BIOS le to your USB ash drive.Please make sure the le system of
your USB ash drive must be FAT32.
3. Extract BIOS le from the zip le.
4. Rename the le to “creative.rom” and plug your USB drive to the USB BIOS Flashback port.
5. Make sure that the CPU is not installed; then install PSU and turn it on.
6. Press the BIOS Flashback Switch for about three seconds. en the LED starts to
blink.
7. Wait until the LED stops blinking, indicating that BIOS ashing has been completed.
*If the LED light turns solid green, this means that the BIOS Flashback is not
operating properly.
