Fatal1ty X299 Professional Gaming i9 Series
4.4 Main Screen

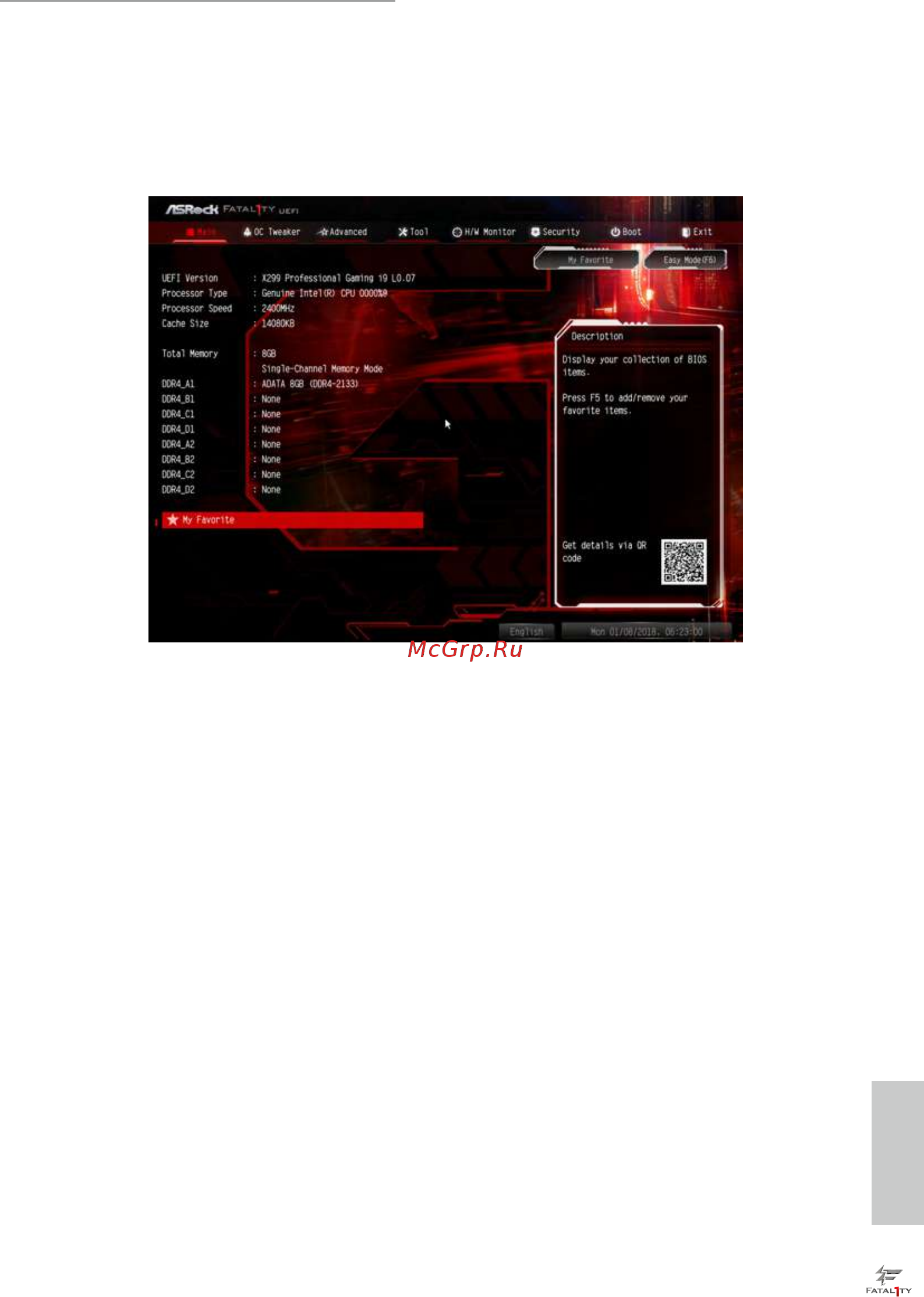

When you enter the UEFI SETUP UTILITY, the Main screen will appear and
display the system overview.
Favorite
Display your collection of BIOS items. Press F5 to add/remove your favorite items.
