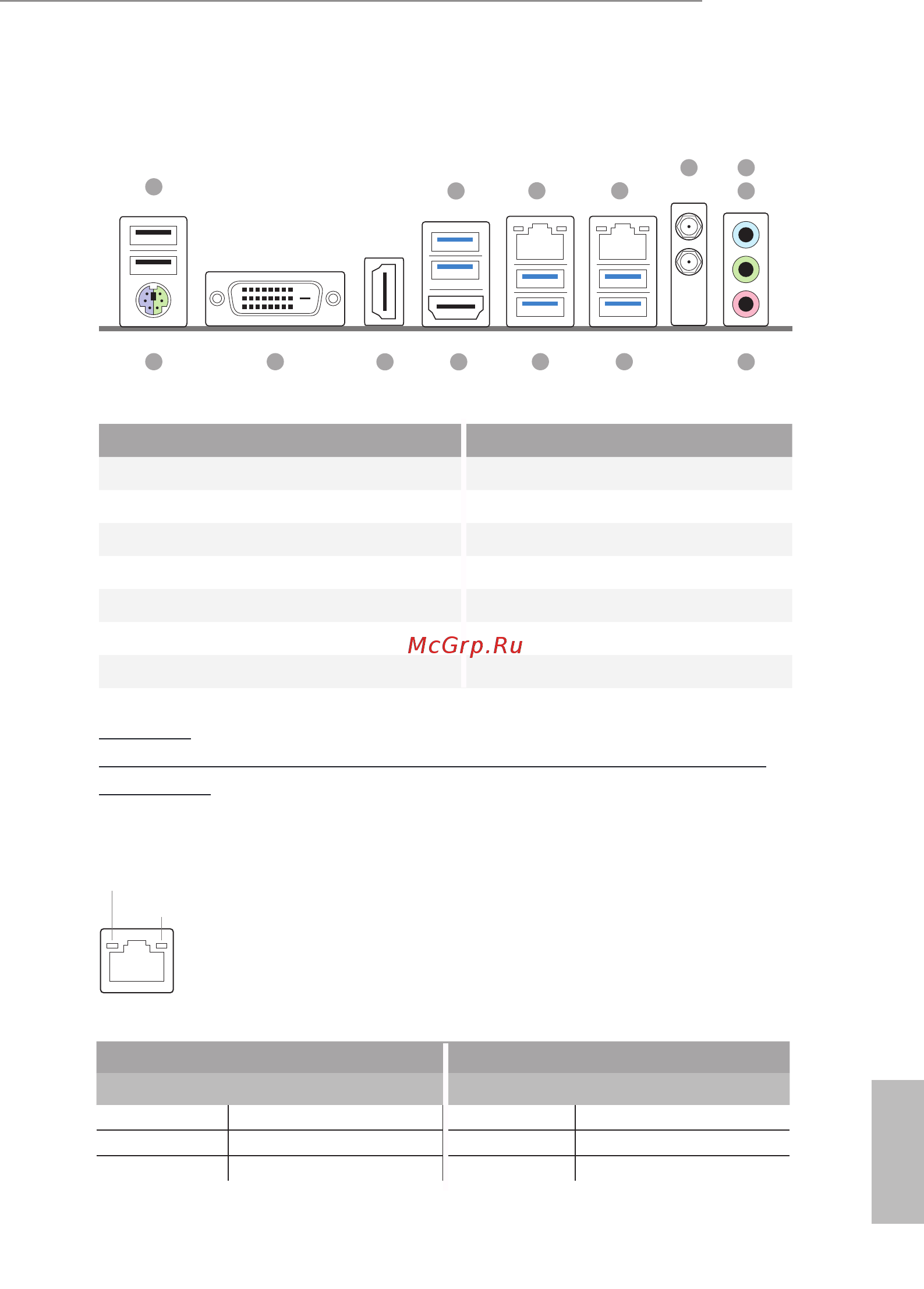

1.4 I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB12) 8 Microphone (Pink)**
2 USB 3.0 Ports (USB3_01) 9 USB 3.0 Ports (USB3_45)
3 LAN RJ-45 Port* 10 USB 3.0 Ports (USB3_23)
4 LAN RJ-45 Port* 11 HDMI Port (HDMI2)
5 Antenna Ports (M2_WIFI1) 12 HDMI Port (HDMI1)
6 Line In (Light Blue)** 13 DVI-D Port (DVI1)
7 Front Speaker (Lime)** 14 PS/2 Mouse/Keyboard Port
CAUTION:
For operating system installation, be sure to plug your USB ash drive into the USB 2.0
Ports (USB12).
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1
14
910
11
13
3 4
8
7
6
2
5
12
