ASRock H270M-ITX/ac [31/81] English

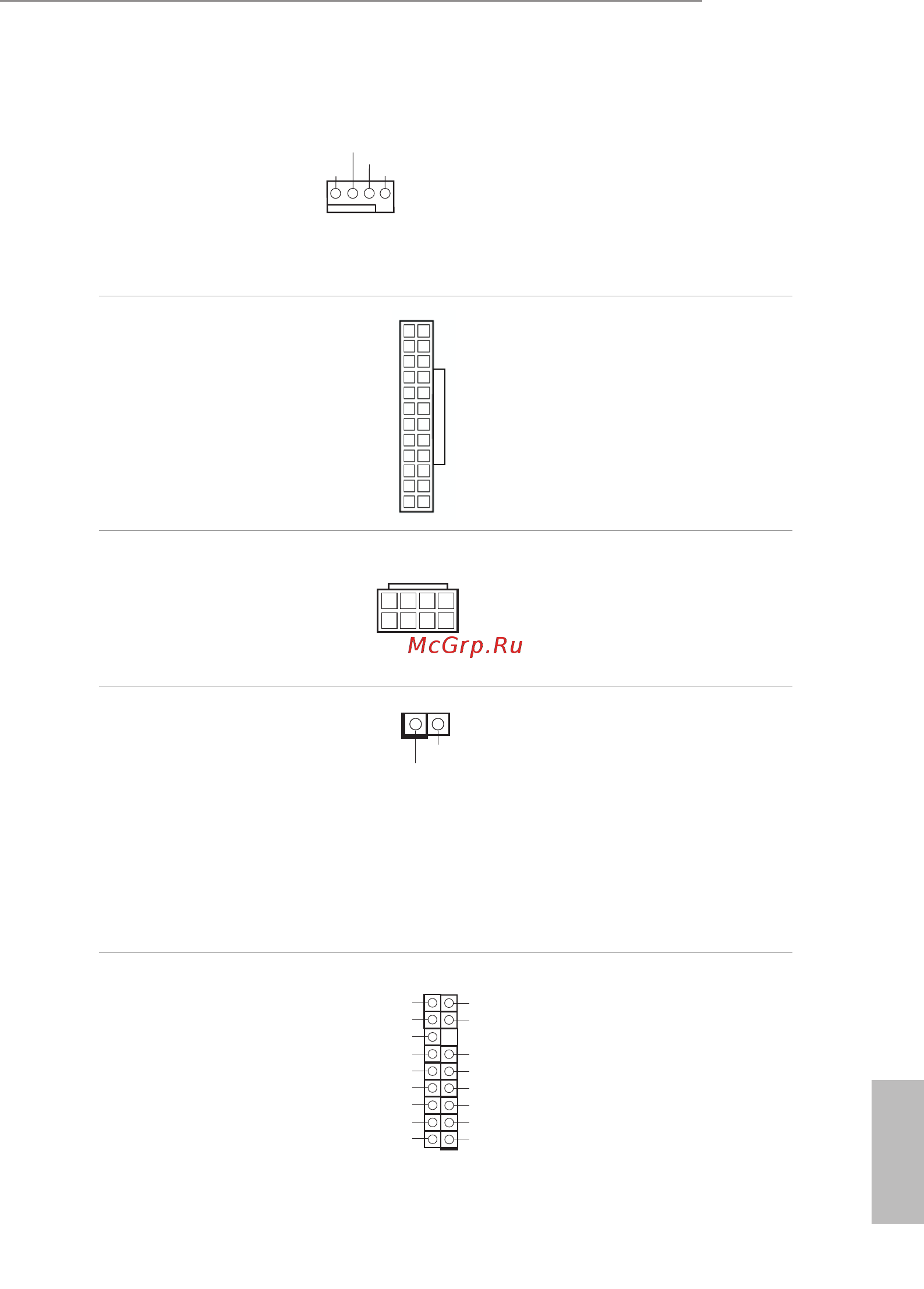

![ASRock H270M-ITX/ac [31/81] English](/views2/1253669/page31/bg1f.png)
24 25
English
H270M-ITX/ac
CPU Fan Connector
(4-pin CPU_FAN1)
(see p.7, No. 3)
GND
FAN_VOLTAGE
CPU_FAN_SPEED
FAN_SPEED_CONTROL
1 2 3 4
is motherboard pro-
vides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.
ATX Power Connector
(24-pin ATXPWR1)
(see p.7, No. 5)
1
12
13
24
is motherboard pro-
vides a 24-pin ATX power
connector.
ATX 12V Power
Connector
(4-pin ATX12V1)
(see p.7, No. 1)
5
1
8
4
Please connect an ATX
12V power supply to this
connector.
Chassis Intrusion Header
(2-pin CI1)
(see p.7, No. 14)
1
Signal
GND
is motherboard
supports CASE OPEN
detection feature that
detects if the chassis cove
has been removed. is
feature requires a chassis
with chassis intrusion
detection design.
TPM Header
(17-pin TPMS1)
(see p.7, No. 18)
GN DGN D
+3 VSB
LA D0
+3 V
LA D3
PC IRST
#
FR AME
PC ICL
K
1
GN D
SM B_CLK_MAIN
SM B_DATA_MAI N
LA D2
LA D1
GN D
S_ PWRDWN#
SE RIRQ
#
is connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certicates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
