ASRock H270M-ITX/ac [44/81] Setting
![ASRock H270M-ITX/ac [44/81] Setting](/views2/1253669/page44/bg2c.png)
38 39
English

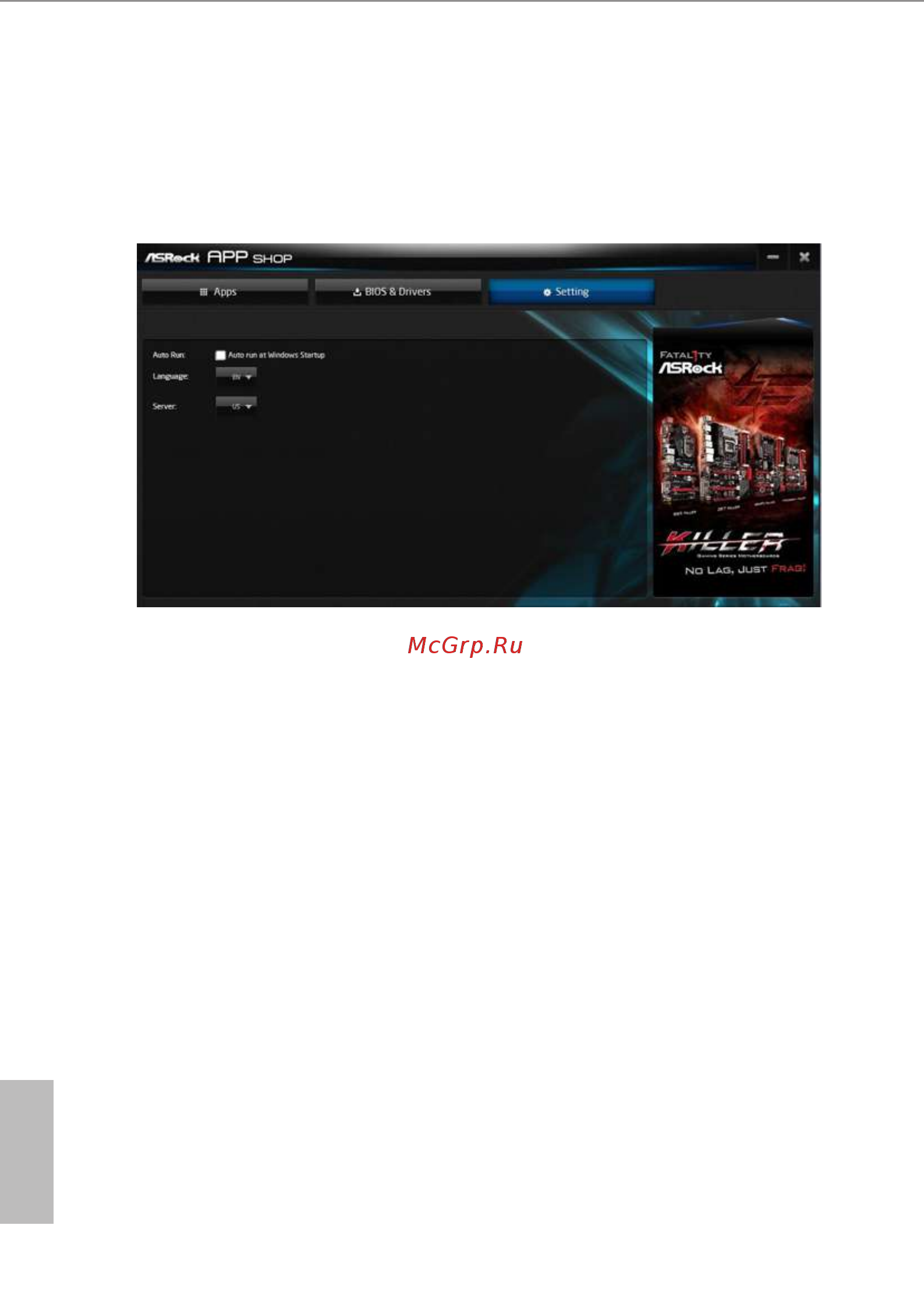

3.3.4 Setting
In the "Setting" page, you can change the language, select the server location, and
determine if you want to automatically run the ASRock Live Update & APP Shop
on Windows startup.
