ASRock H270M-ITX/ac [67/81] Super io configuration
![ASRock H270M-ITX/ac [67/81] Super io configuration](/views2/1253669/page67/bg43.png)
60 61
English
H270M-ITX/ac

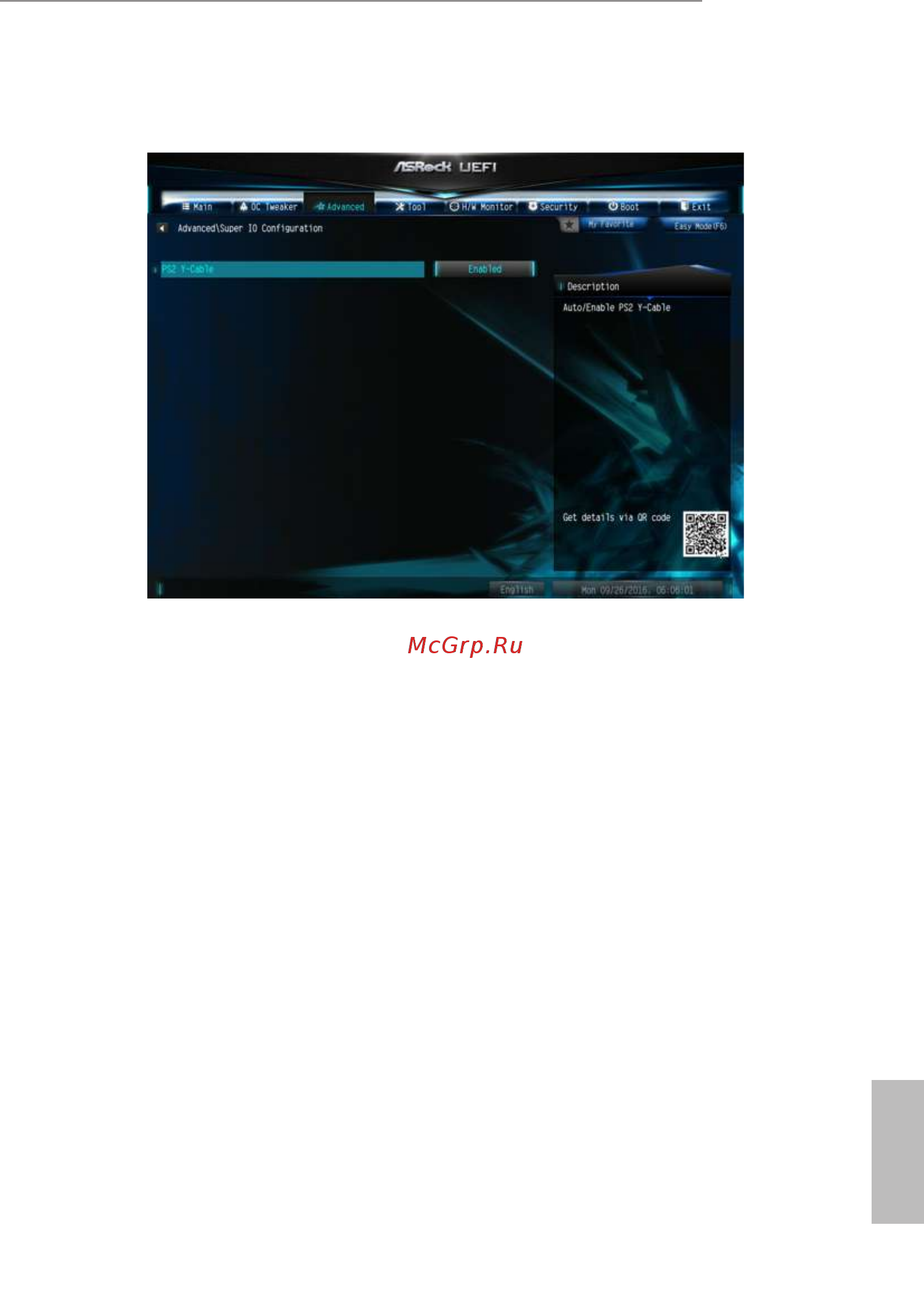

4.6.4 Super IO Conguration
PS2 Y-Cable
Enable the PS2 Y-Cable or set this option to Auto.
