ASRock H270M-ITX/ac [70/81] Trusted computing
![ASRock H270M-ITX/ac [70/81] Trusted computing](/views2/1253669/page70/bg46.png)
64 65
English

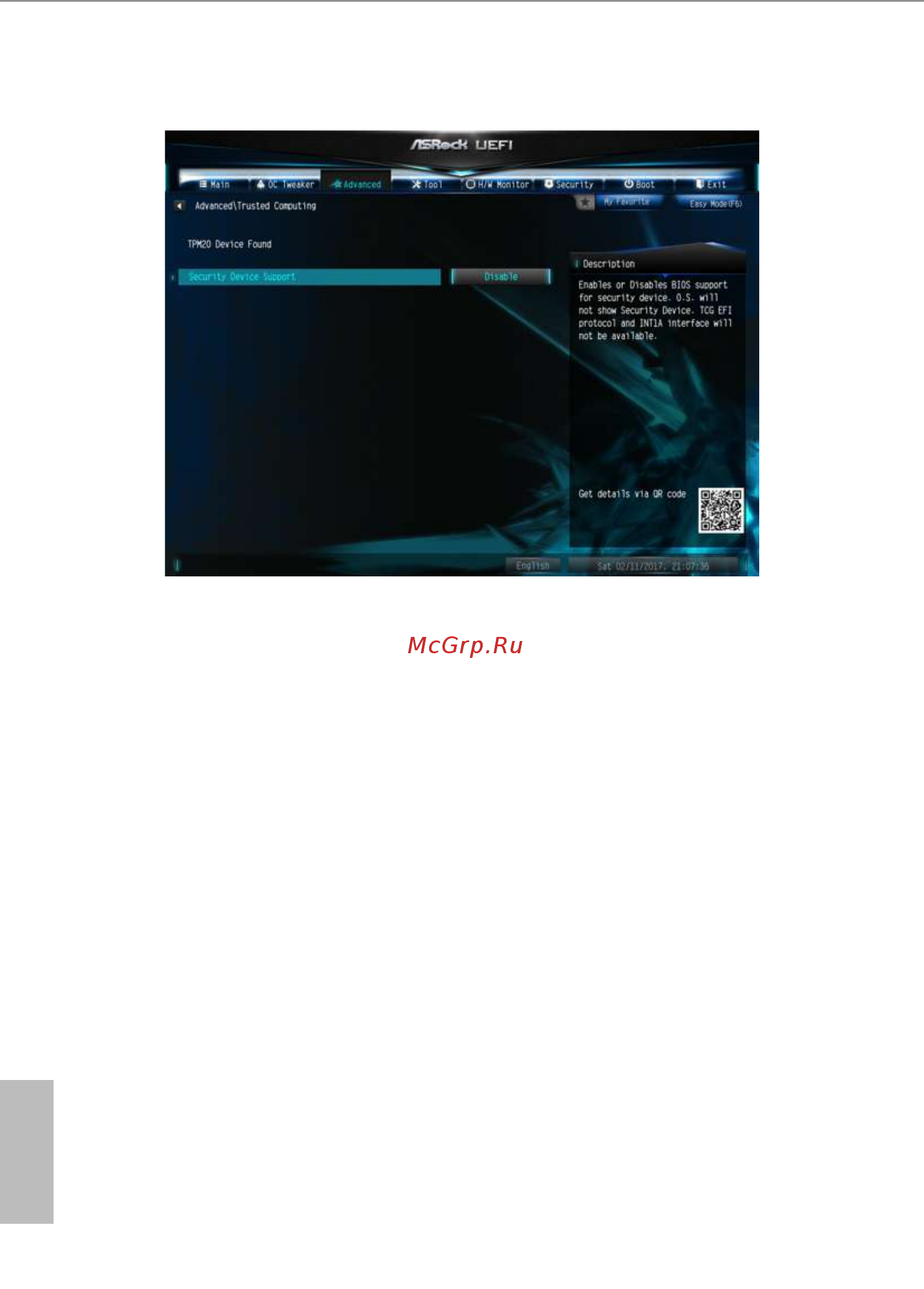

4.6.7 Trusted Computing
Security Device Support
Enable or disable BIOS support for security device.
