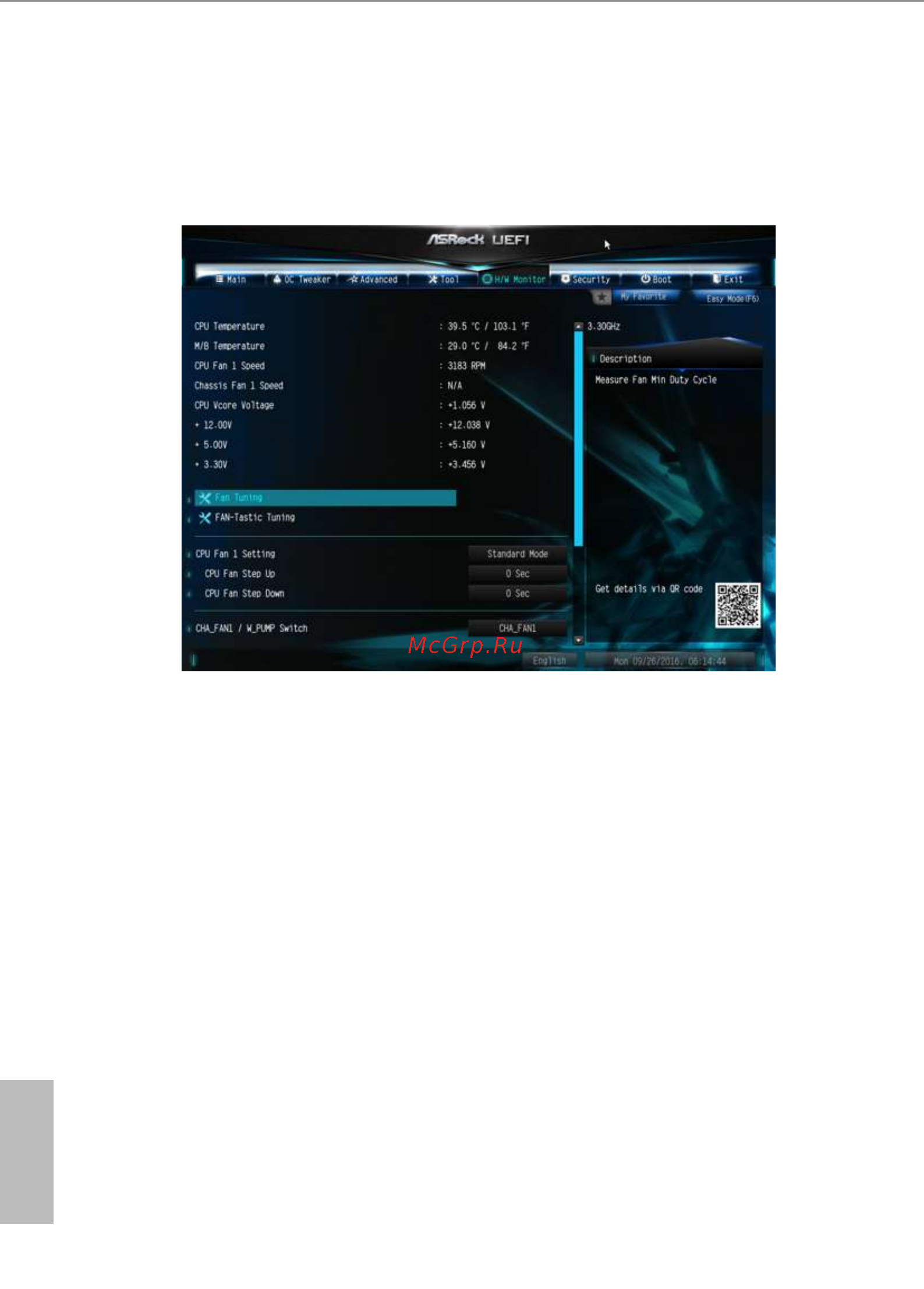

4.8 Hardware Health Event Monitoring Screen
is section allows you to monitor the status of the hardware on your system,
including the parameters of the CPU temperature, motherboard temperature, fan
speed and voltage.
Fan Tuning
Measure Fan Min Duty Cycle.
Fan-Tastic Tuning
Select a fan mode for CPU Fans 1&2, or choose Customize to set 5 CPU
temperatures and assign a respective fan speed for each temperature.
CPU Fan 1 Setting
Select a fan mode for CPU Fans, or choose Customize to set 5 CPU temperatures
and assign a respective fan speed for each temperature.
CPU Fan Step Up
e Vaule of CPU Fan Step Up
CPU Fan Step Down
e Vaule of CPU Fan Step Down
CHA_FAN1 / W_PUMP Switch
Switch CHA_FAN1 / W_PUMP header function
