ASRock H270M-ITX/ac Инструкция по эксплуатации онлайн [73/81] 212840
![ASRock H270M-ITX/ac Инструкция по эксплуатации онлайн [73/81] 212840](/views2/1253669/page73/bg49.png)
66 67
English
H270M-ITX/ac
pen drive before using this function.

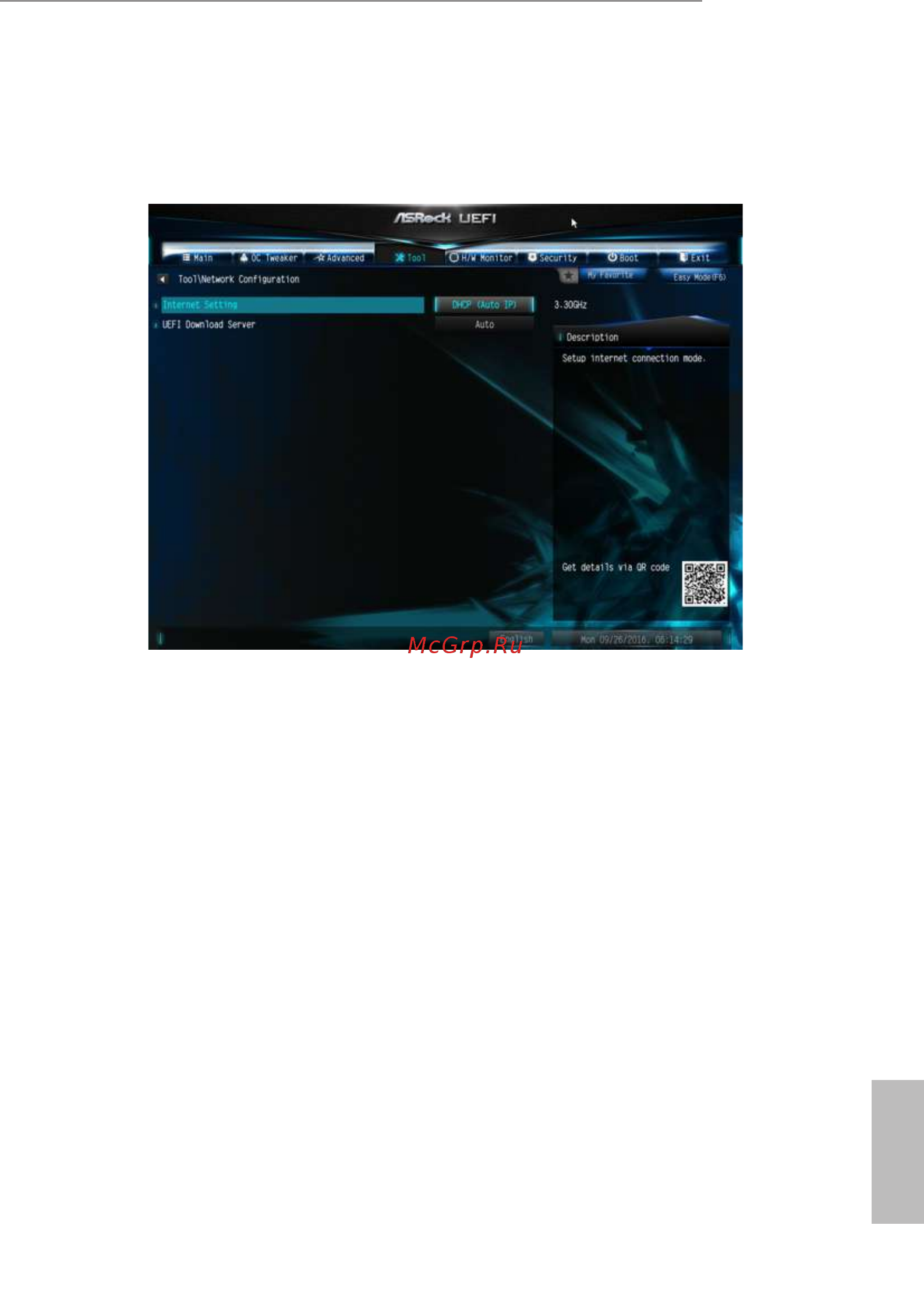

Network Conguration
Use this to congure internet connection settings for Internet Flash.
Internet Setting
Enable or disable sound eects in the setup utility.
UEFI Download Server
Select a server to download the UEFI rmware.
