Asus ROG STRIX B250G GAMING [41/72] Chapter 2
![Asus ROG STRIX B250G GAMING [41/72] Chapter 2](/views2/1254549/page41/bg29.png)
ASUS STRIX B250G GAMING
2-15
Chapter 2

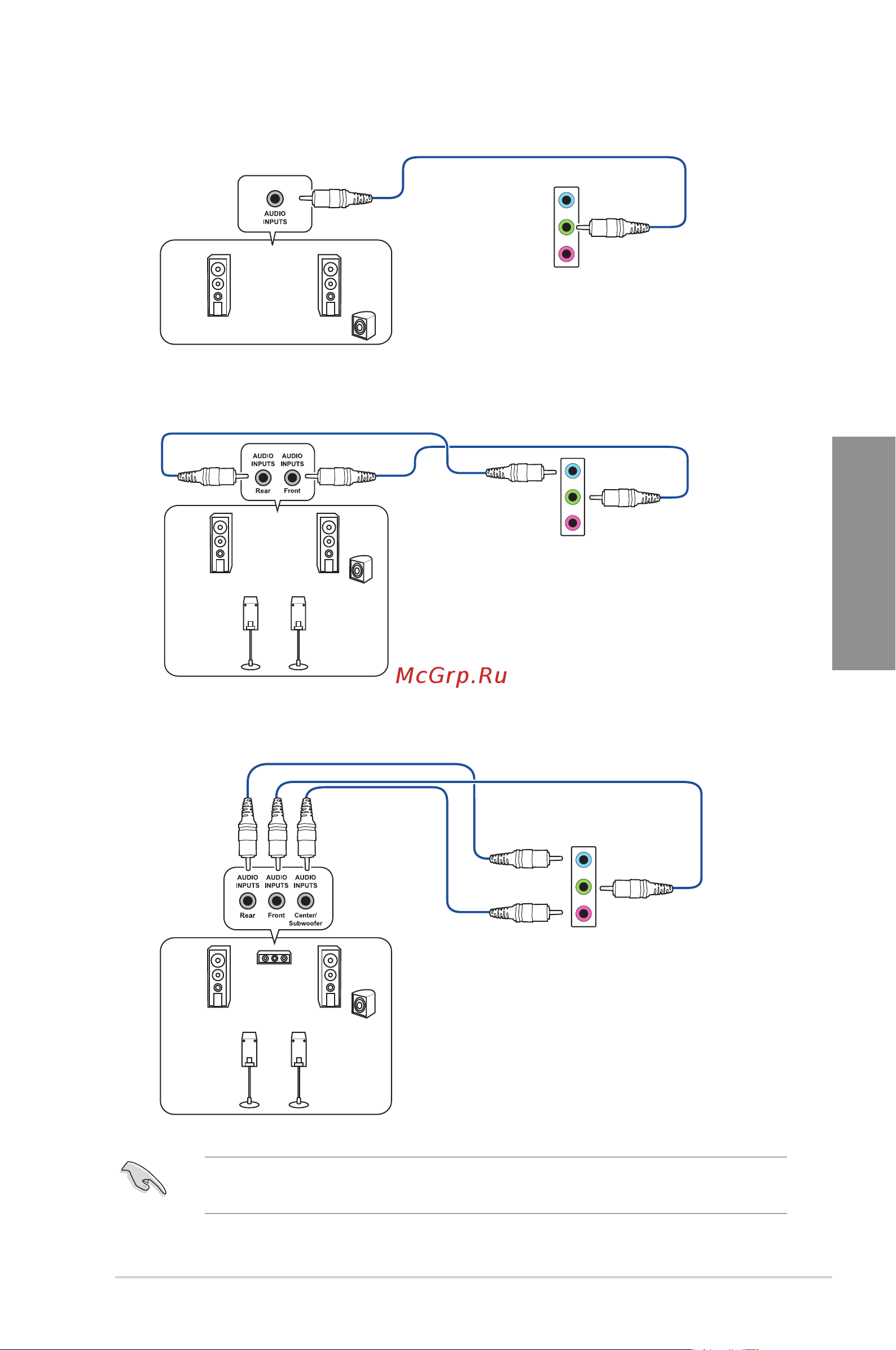

Connect to 2.1 channel Speakers
Connect to 4.1 channel Speakers
Connect to 5.1 channel Speakers
If you are using Windows
®
8.1/10 platform, use only the light blue audio port for Side
Speaker Out in a 6-channel conguration.
