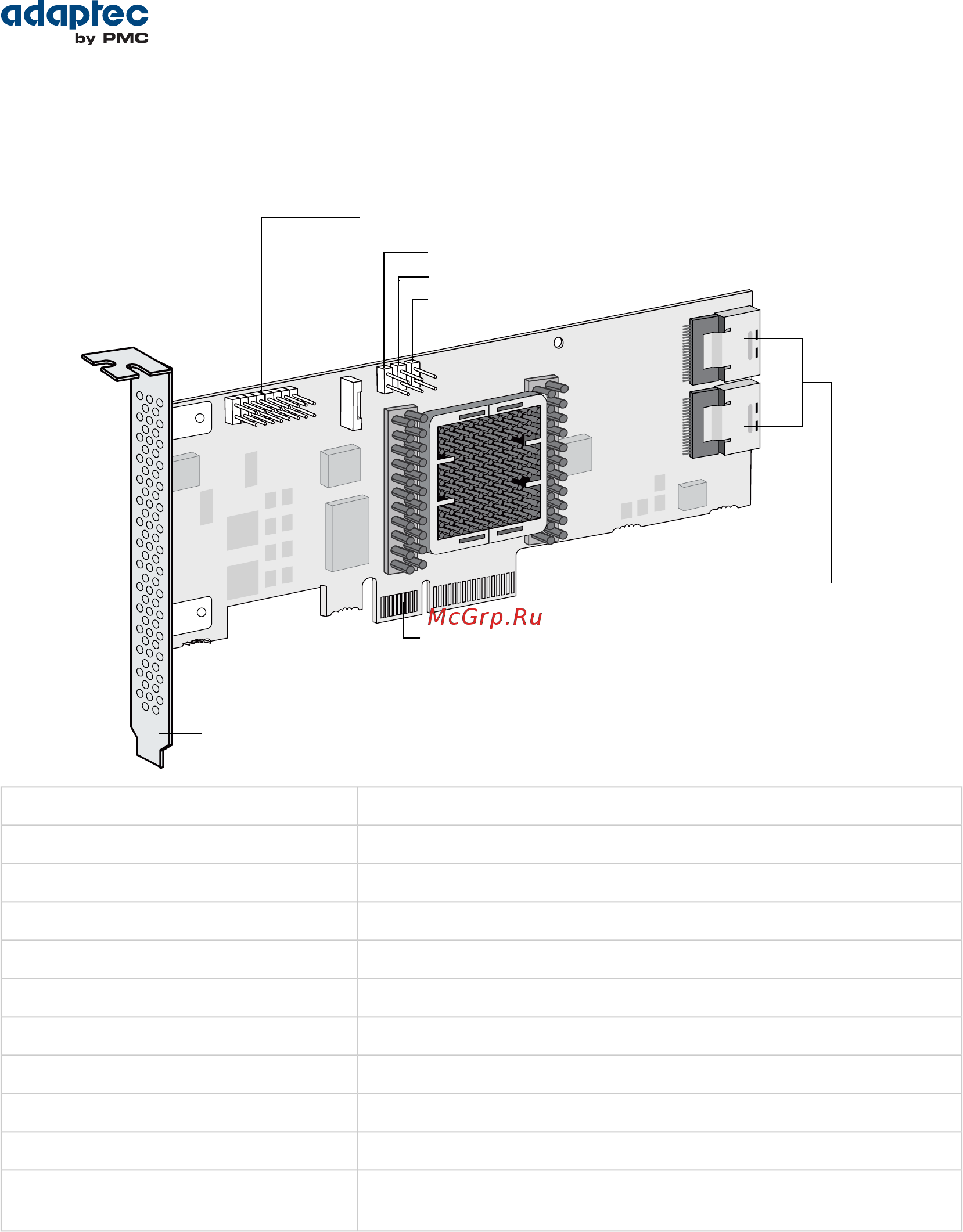

About the Adaptec RAID 6805E/6805E R5
The Adaptec RAID 6805E/6805E R5 is a SAS RAID controller with these features:
CN1
2 internal mini-SAS
connectors
CN0
Mounting bracket
PCIe x4 connector
HDA mode connector
Ext. Alarm connect or
Aggregate Activity
Drive Activity LED connector for CN0/CN1
Low-prole MD2 (reduced length: 6.1 inches)Form Factor
PCIe 2.0Bus compatibility
x4PCIe bus width
6 Gb/s per portData transfer rate
8Phys (Unied Serial Ports)
128 MB DDR2Standard cache
2 mini-SAS x4 (SFF-8087)Connectors, internal
8 direct-attachedMaximum number of disk drives
SGPIO (Serial General Purpose Input/Output)Enclosure Support
YesOnboard speaker
NoZero Maintenance Cache Protection M
odule
23Proprietary and Condential to PMC-Sierra, Inc.
Document No.: CDP-00283-04-A Rev. A, Issue
Serial Attached SCSI RAID Controllers Installation and User's Guide
