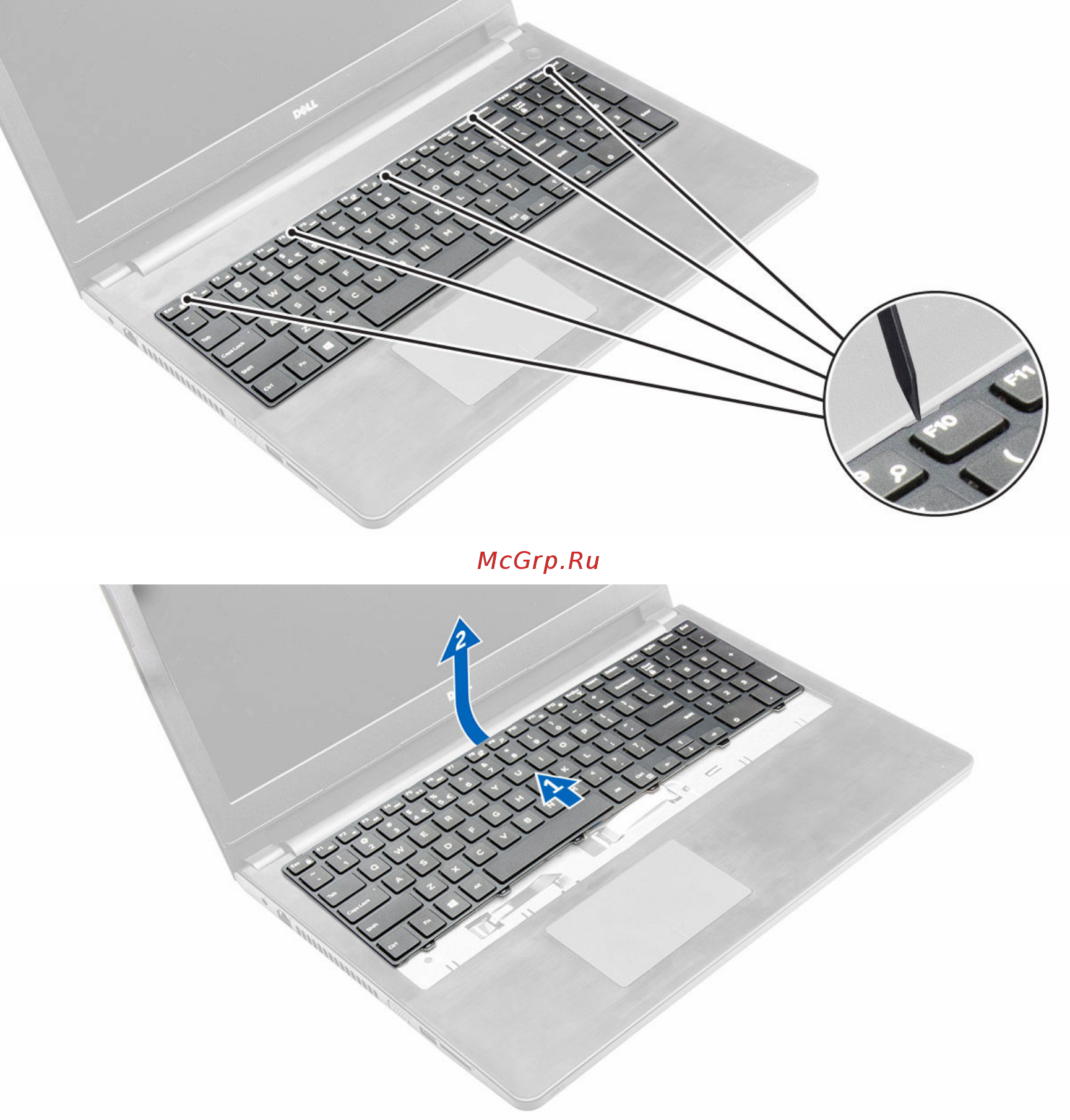

b. Slide and lift the keyboard to access the keyboard connector cable under the keyboard [1,2].
4. To remove the keyboard cable:
a. Disconnect the keyboard cable from the system board [1].
b. Lift the keyboard cable to remove it from the computer [2].
16
