Installing Scanner Drivers (TWAIN/WIA/ICA Driver)
-104-

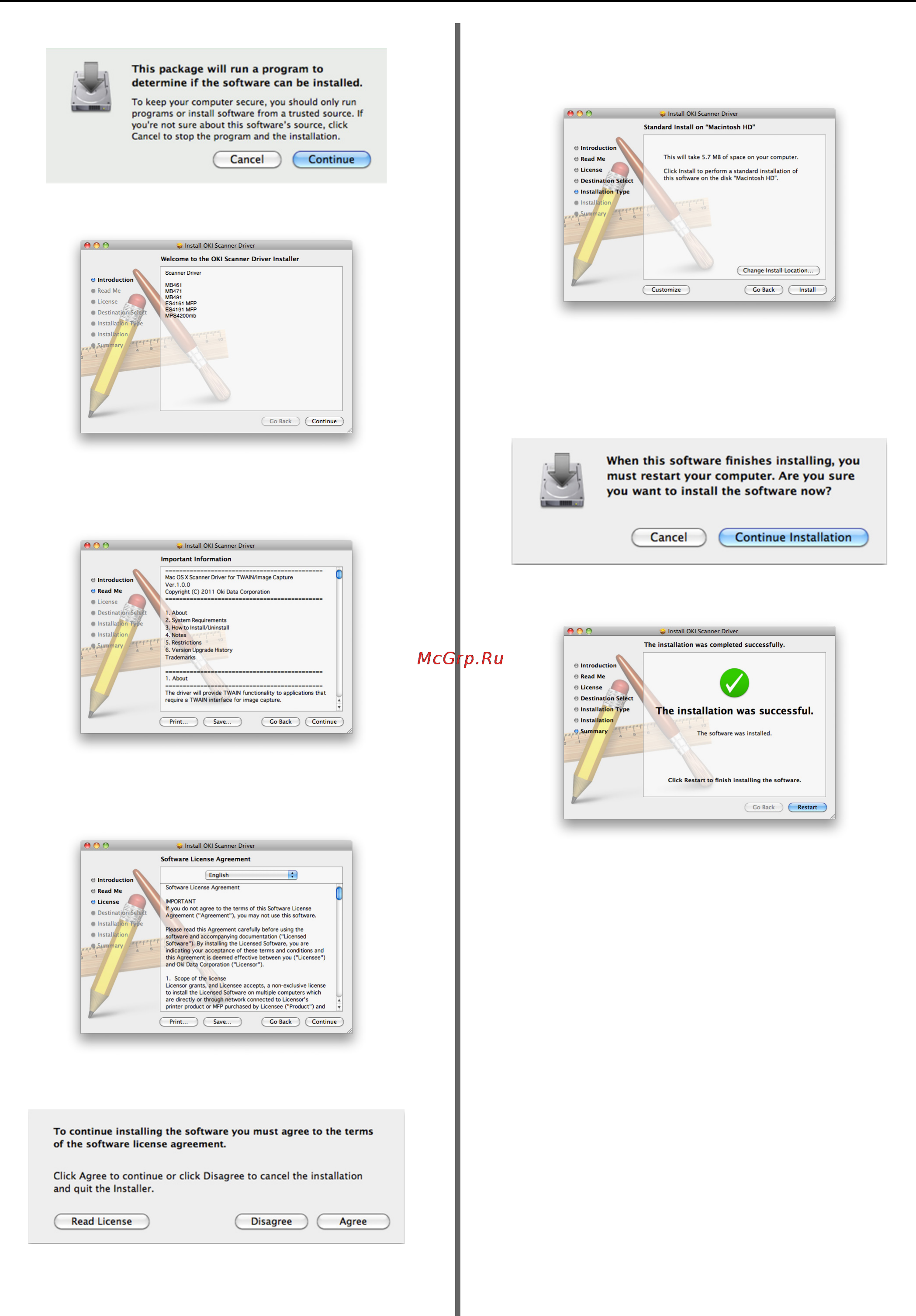

4 Click [Continue].
5 Click [Continue].
6 Check the display and click [Continue] if
OK.
7 Read the license agreement and click
[Continue].
8 Click [Agree] if you agree.
9 Click [Install].
To change the installation location of the
driver, click [Change Install Location].
10 Enter the administrator name and
password, and click [OK].
11 Click [Continue Installation].
12 Click [Restart].
