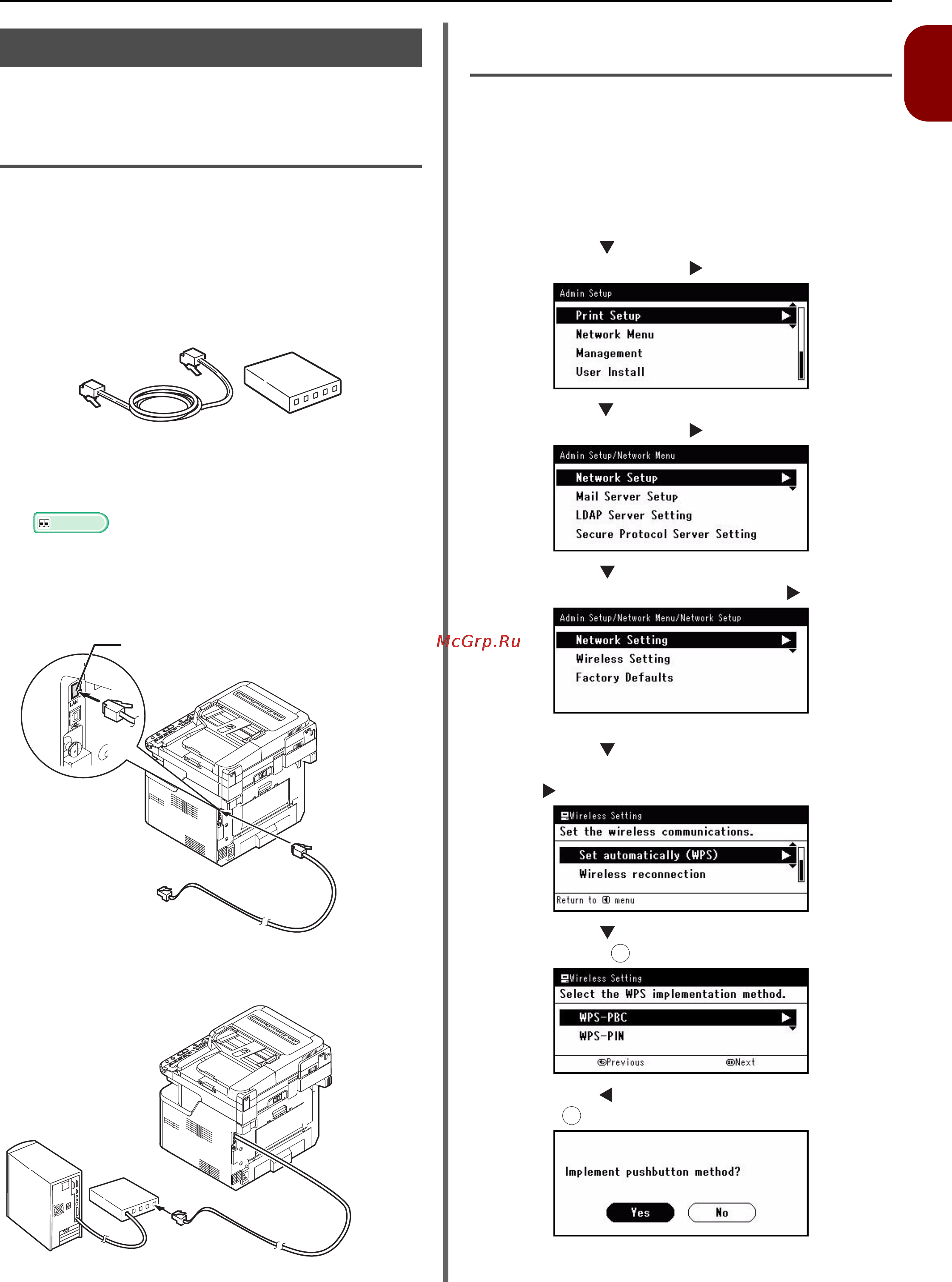

Connecting to a Computer
-47-
Setup
1
Network Connection
Perform the following procedure to connect your
machine to a computer via network.
Connecting using wired LAN
Connecting an Ethernet Cable
Be sure to connect your machine to a network
with an Ethernet cable before driver installation.
1 Prepare an Ethernet cable and a hub.
Prepare an Ethernet cable (category 5, twisted
pair, straight) and a hub separately.
2 Hold down the power switch for about a
second to turn on the power and
computer.
Reference
"Turning Off Your Machine" P. 20
3 Plug one end of the Ethernet cable into
the network interface connection on the
back of the machine.
4 Plug the other end of the Ethernet cable
into the hub.
Connecting using wireless LAN
(MB451w, MB471w only)
Configuring automatically using
push-button method
Use the WPS (push button) function to set the
wireless LAN.
1 Log in as the administrator.
2 Press the to select [Network Menu],
and then press the .
3 Press the to select [Network Setup],
and then press the .
4 Press the to select [Wireless
Setting], and then press the .
5 Press the to select [Set
automatically (WPS)], and then press
the .
6 Press the to select [WPS-PBC], and
then press .
7 Press the to select [Yes], and then
press .
2
OK
OK
