Loading Paper and Documents
-34-

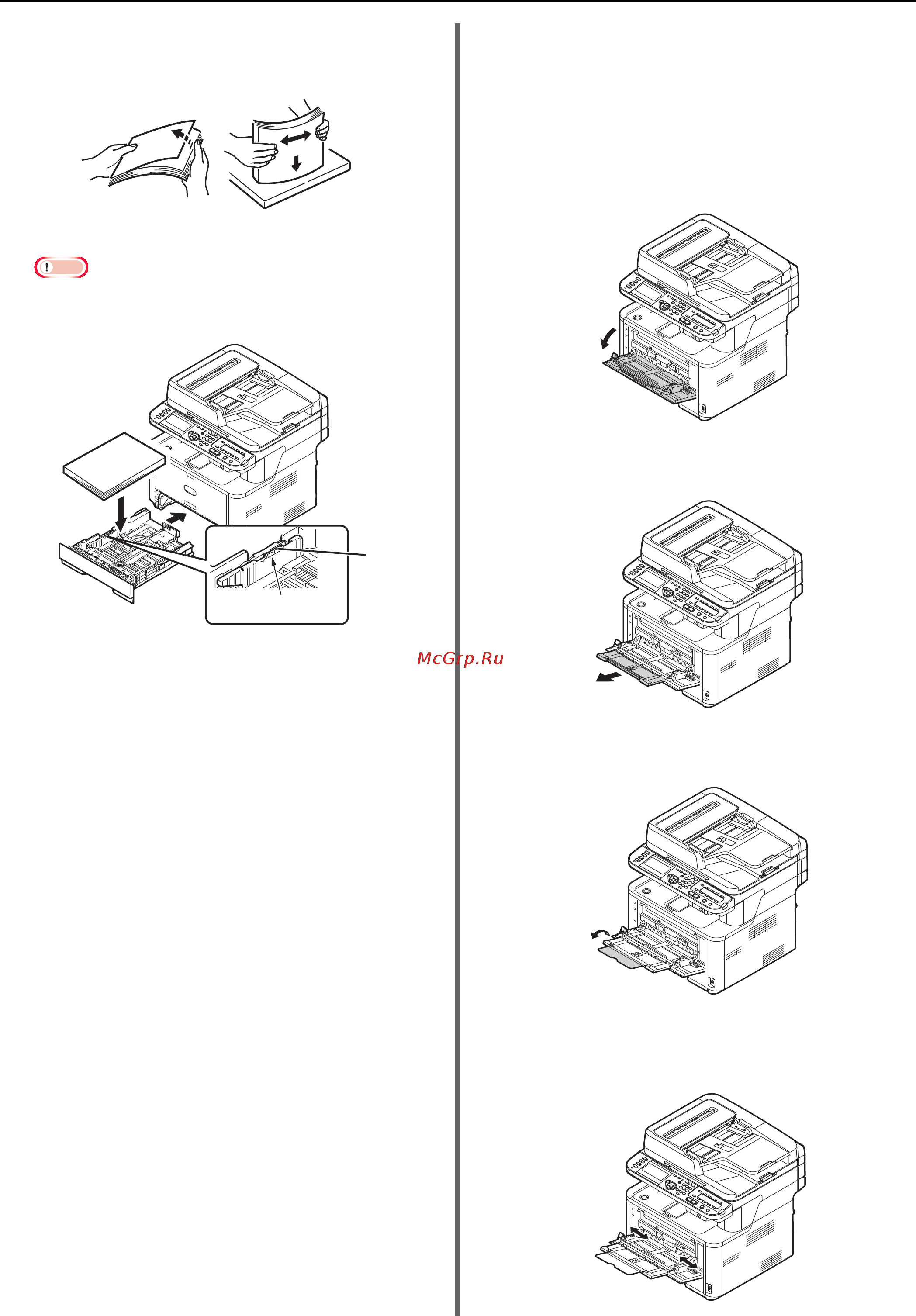

4 Flex paper back and forth, and then fan
it. Straighten the edges of the paper
stack on a level surface.
5 Load paper with the print side face down.
Note
Do not load paper above the fill line (3).
6 Push the paper tray until it stops.
Register the loaded paper on your machine.
Proceed to "Configuring the Tray Settings" P. 36.
Loading Paper on the MP Tray
(MB451/MB451w/MB471/
MB471w/MB491/ES4191 MFP)
The following procedure explains how to load
paper in the MP tray.
1 Open the MP tray.
2 Pull out the paper support.
3 Pull out the sub support.
4 Adjust the manual feeding paper guide to
the width of paper to be loaded.
[ ▼ ▼ ▼ ]
3
