Configuring the Network Settings
-69-
Setup
1

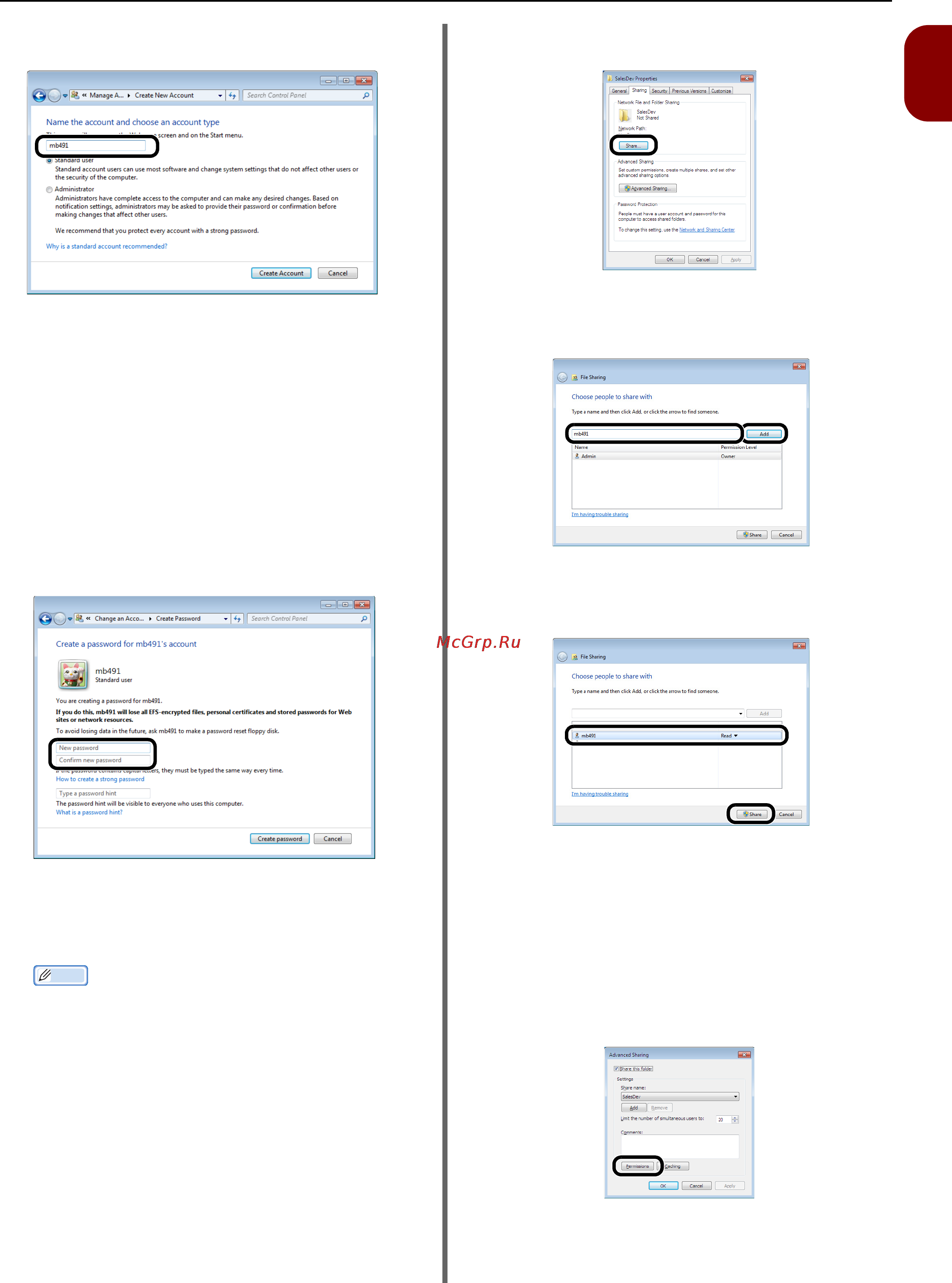

4 Enter the information in C-2 in the text
box.
5 Ensure that [Standard user] is
selected, and then click [Create
Account].
6 Click the icon of the user account created
in step 5.
7 Select [Create a password].
8 Enter the information in C-3 in [New
password] and [Confirm new
password], and then click [Create
password].
9 Close the operator panel.
10 Create a new folder on the computer
with the name entered in C-5.
Memo
It is recommended to create a folder in the local drive
(C drive or D drive), not on the desktop, [My
Documents], or network drive.
11 Right-click the folder created in step 10
and select [Properties].
12 Select the [Sharing] tab and then click
[Share].
13 Select the user account created in step 5
from the drop down box, and then click
[Add].
14 Check that the user added in step 13 is
displayed and then click [Share].
After the [Network discovery and file sharing]
dialog box is displayed, click [No, make the
network that I am connected to a private
network].
15 Click [Done].
16 Click [Advanced Sharing] on the
[Sharing] tab.
17 Click [Permissions].
For Windows Vista/Windows Server 2008, proceed
to step 20.
