Optoma WU1500 [17/77] Setup and installation
![Optoma WU1500 [17/77] Setup and installation](/views2/1304293/page17/bg11.png)
English
17
SETUP AND INSTALLATION

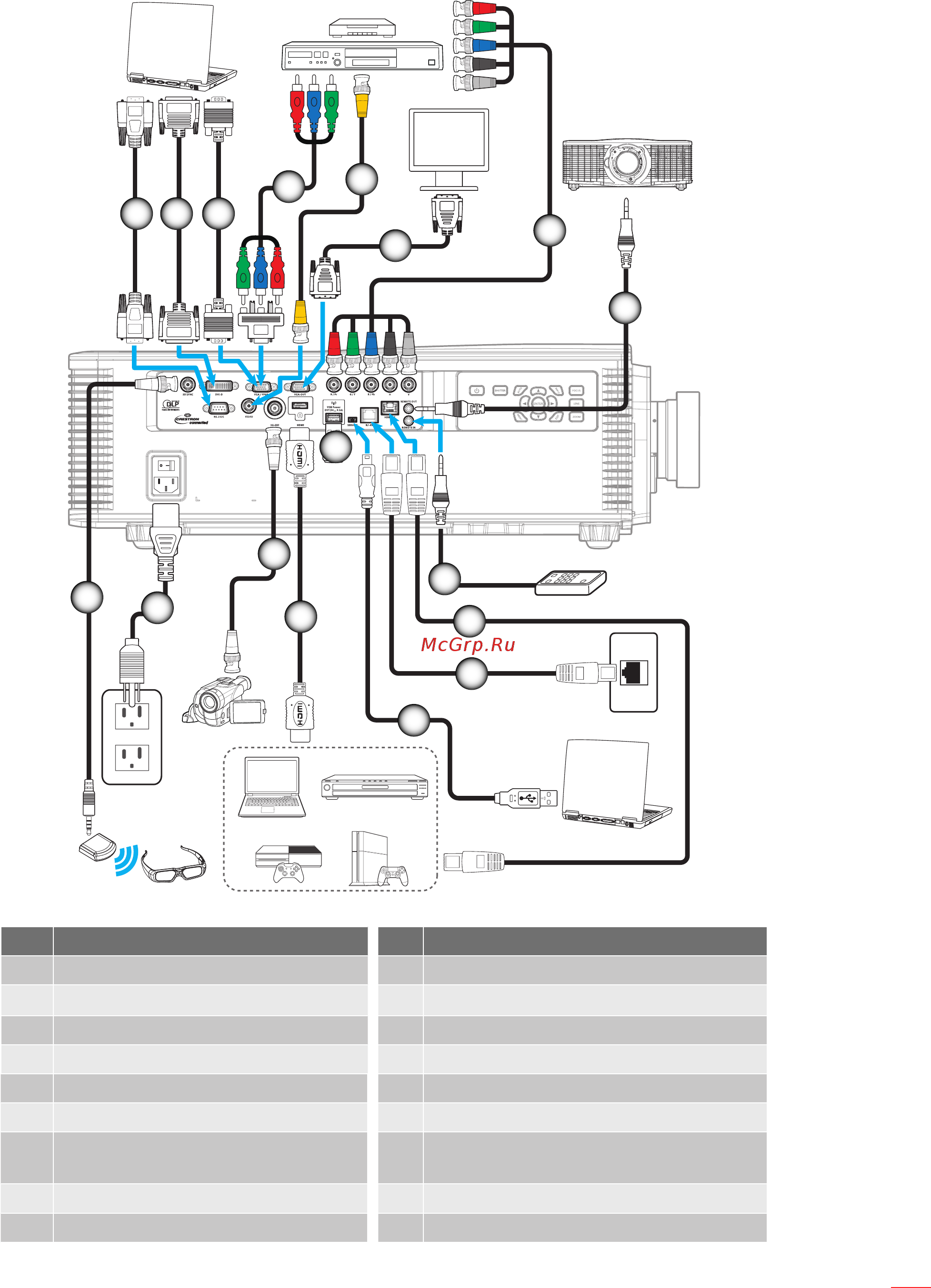

Connecting sources to the projector
MOLEX
1
4
5
6
7
8
9
10
11
12
13
2 3
14
15
16
17
No Item No Item
1. RS-232C Cable 10. CAT5e/6/6A Cable
2.
DVI-D Cable 11. RJ-45 Cable
3. VGA-In Cable 12. Mini USB cable (service only)
4. RCA Component Cable 13. WiFi Dongle
5. Composite Video Cable 14. HDMI Cable
6. VGA-Out Cable 15. 3G-SDI Cable
7. Component (YPbPr) Cable +
Stereo Audio Cable
16. Power Cord
8. Wired Remote-Out Cable 17. 3D Emitter Cable
9. Wired Remote-In Cable
