3-18
Confidential

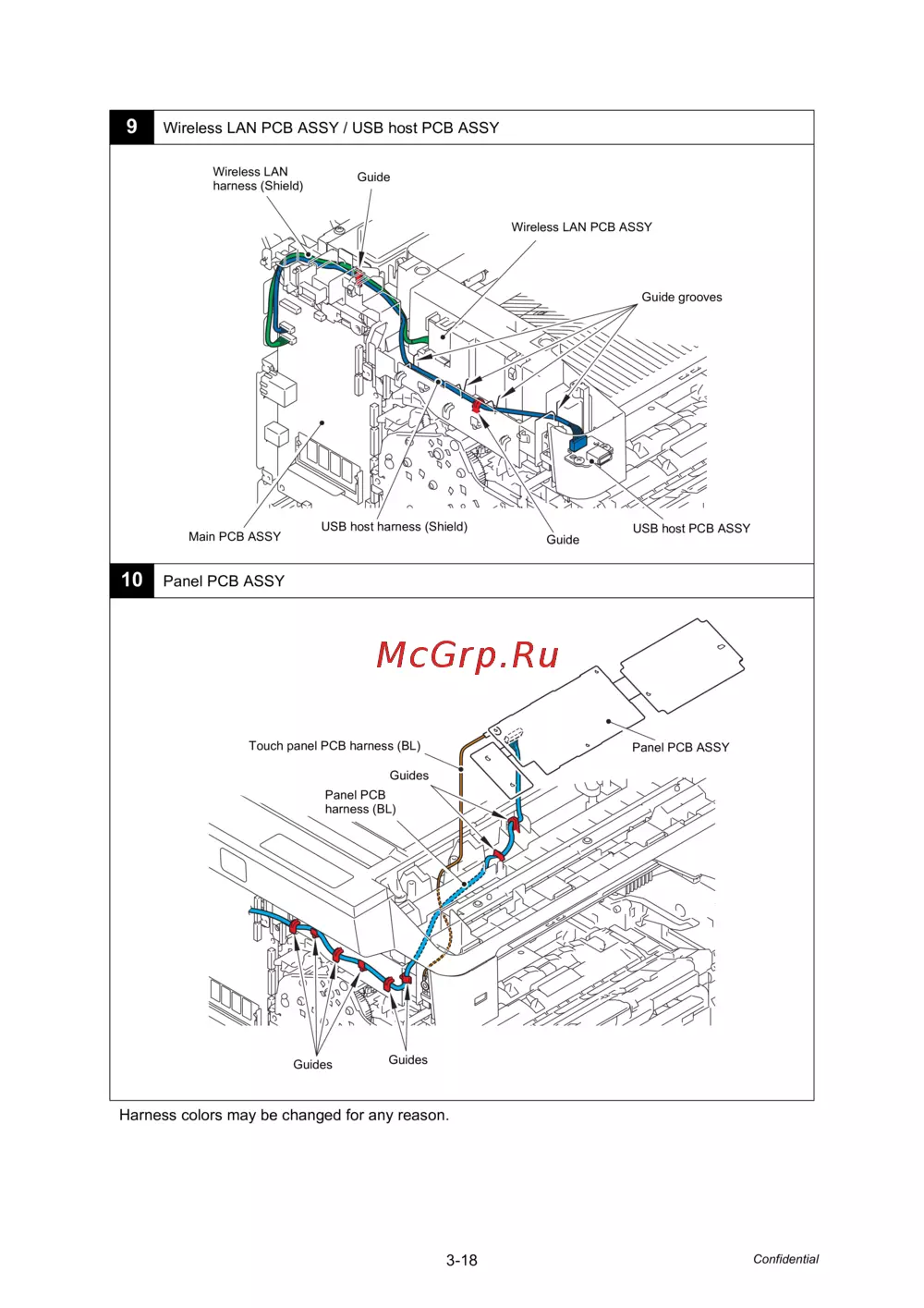

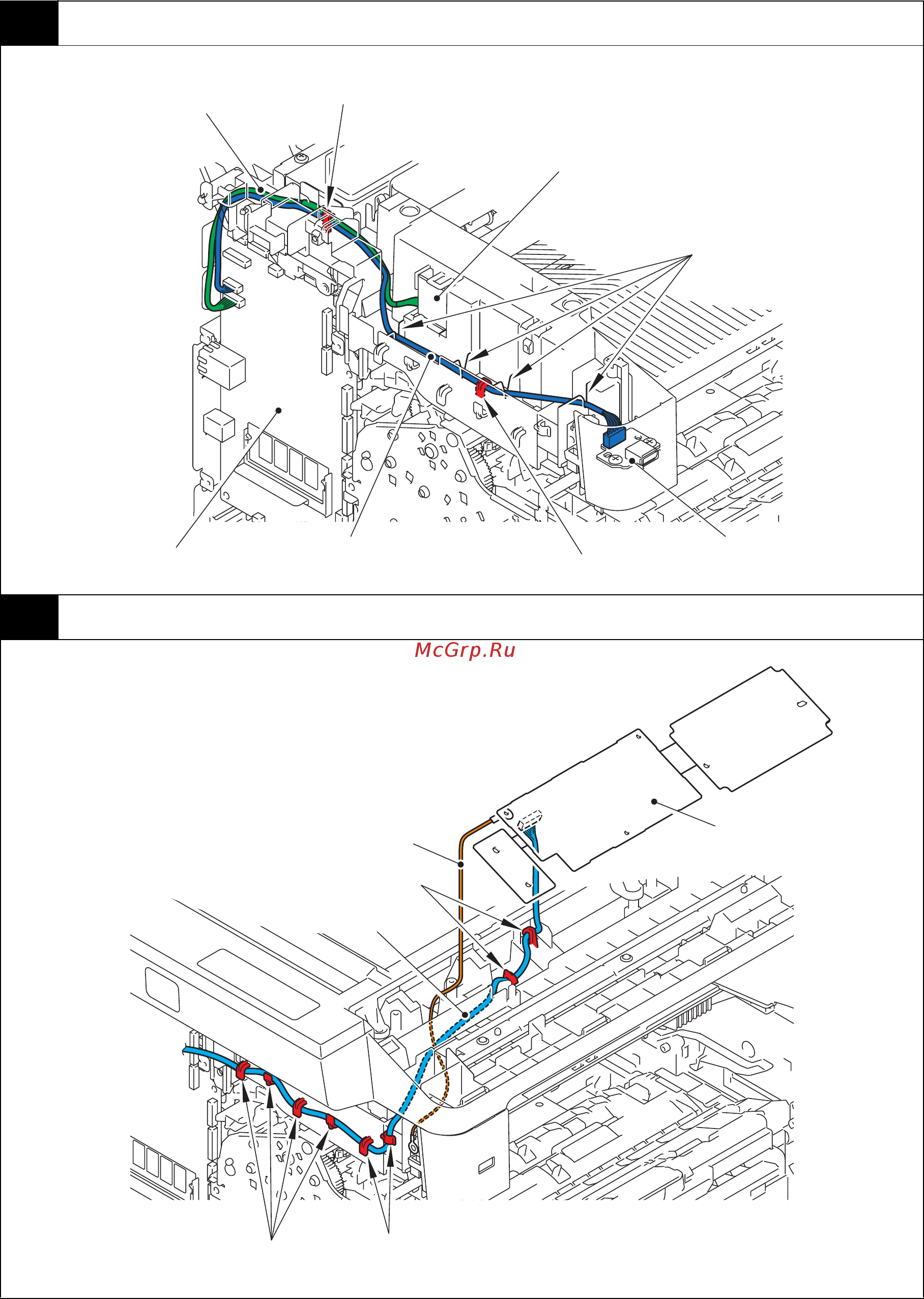

9 Wireless LAN PCB ASSY / USB host PCB ASSY
10 Panel PCB ASSY
Harness colors may be changed for any reason.
Main PCB ASSY
Guide
Guide grooves
Guide
USB host harness (Shield)
Wireless LAN
harness (Shield)
Wireless LAN PCB ASSY
USB host PCB ASSY
Guides
Guides
Panel PCB
harness (BL)
Guides
Panel PCB ASSY
Touch panel PCB harness (BL)
