3-122
Confidential

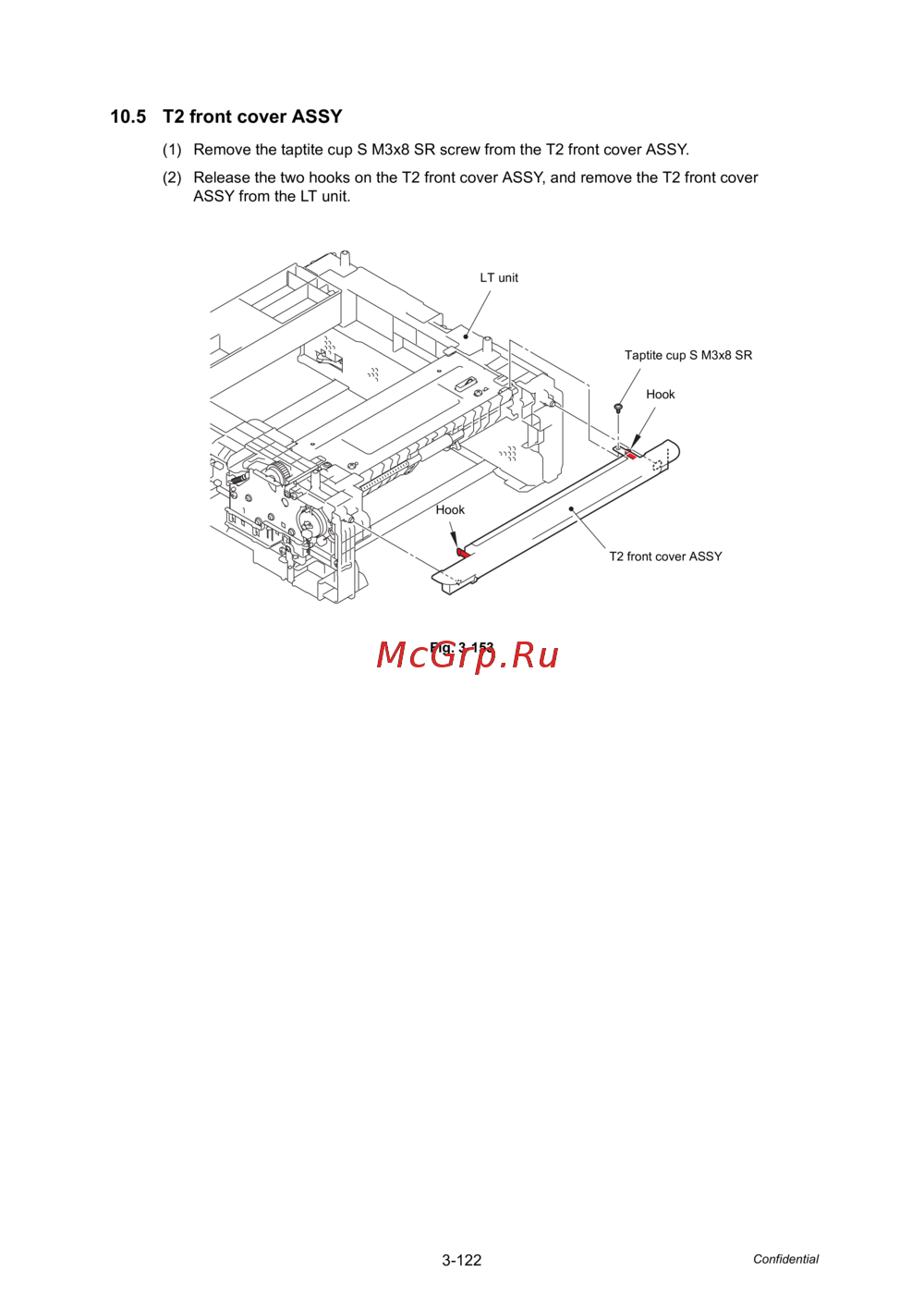

10.5 T2 front cover ASSY
(1) Remove the taptite cup S M3x8 SR screw from the T2 front cover ASSY.
(2) Release the two hooks on the T2 front cover ASSY, and remove the T2 front cover
ASSY from the LT unit.
Fig. 3-153
LT unit
Taptite cup S M3x8 SR
Hook
T2 front cover ASSY
Hook
