7-8
Confidential

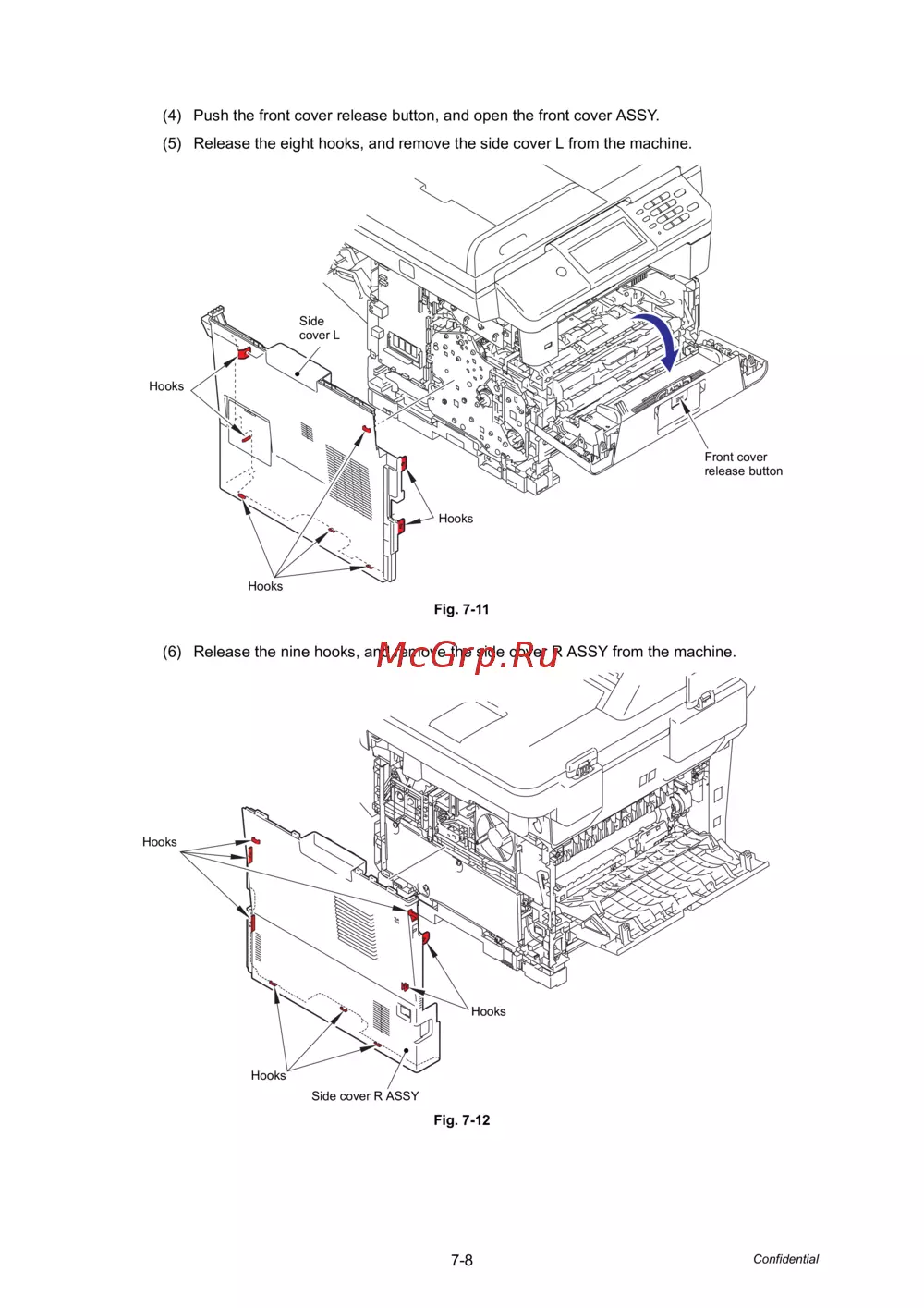

(4) Push the front cover release button, and open the front cover ASSY.

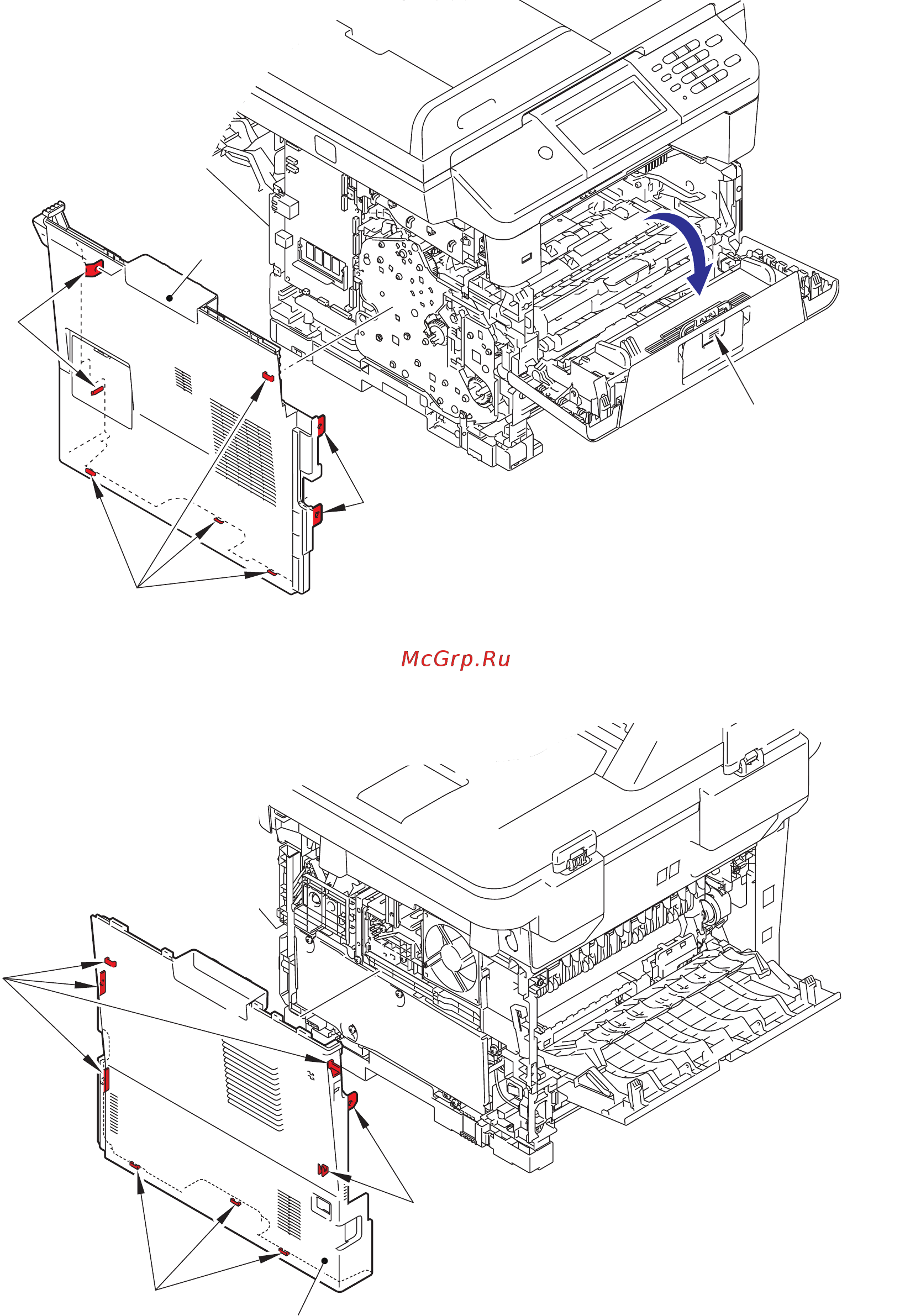

(5) Release the eight hooks, and remove the side cover L from the machine.
Fig. 7-11
(6) Release the nine hooks, and remove the side cover R ASSY from the machine.
Fig. 7-12
Hooks
Side
cover L
Hooks
Front cover
release button
Hooks
Hooks
Hooks
Side cover R ASSY
Hooks
