2-7
Confidential

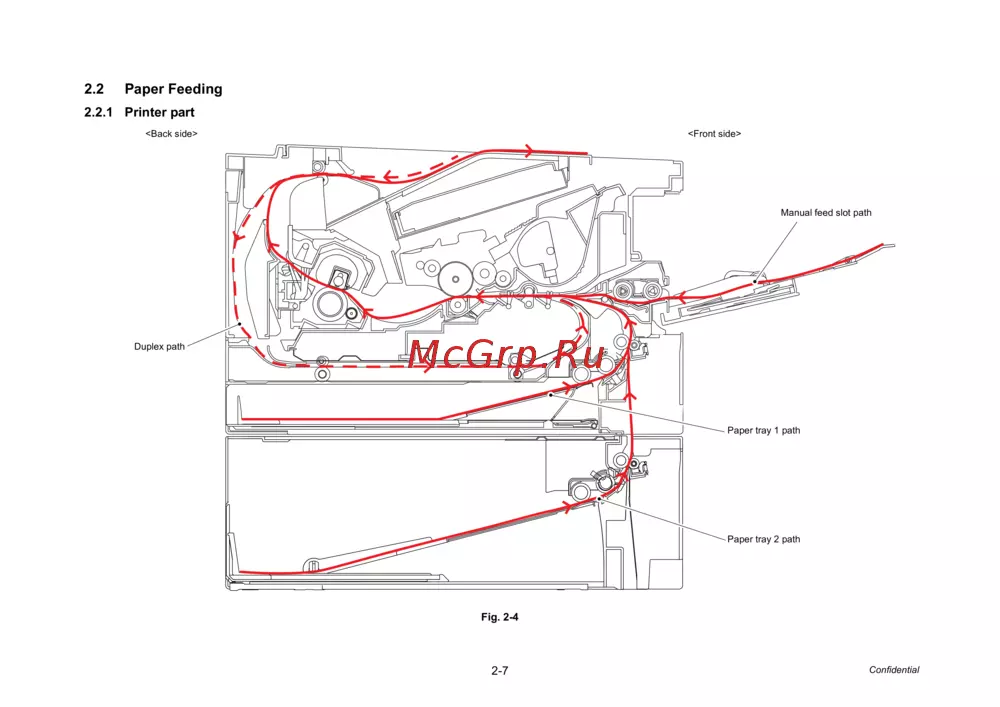

2.2 Paper Feeding
2.2.1 Printer part
Fig. 2-4
Duplex path
<Back side> <Front side>
Manual feed slot path
Paper tray 1 path
Paper tray 2 path
