SuperServer 5019S-MN4 User's Manual Chapter 1: Introduction
Control Panel Features
Item Feature Description
1 Overheat/Fan Fail LED
When ashing, this LED indicates a fan failure. When on continuously it
indicates an overheat condition.
2 NIC2 LED Indicates network activity on LAN port 2 when ashing
3 NIC1 LED Indicates network activity on LAN port 1 when ashing
4 HDD LED Indicates activity on the hard drive when ashing.
5 Power LED
Indicates power is being supplied to the system power supply. This LED should
normally be illuminated when the system is operating.
6 Reset Button The reset button is used to reboot the system
7 Power Button
The main power button is used to apply or remove power from the power supply
to the server. Turning off system power with this button removes the main power
but maintains standby power. To perform many maintenance tasks, you must
also unplug system before servicing

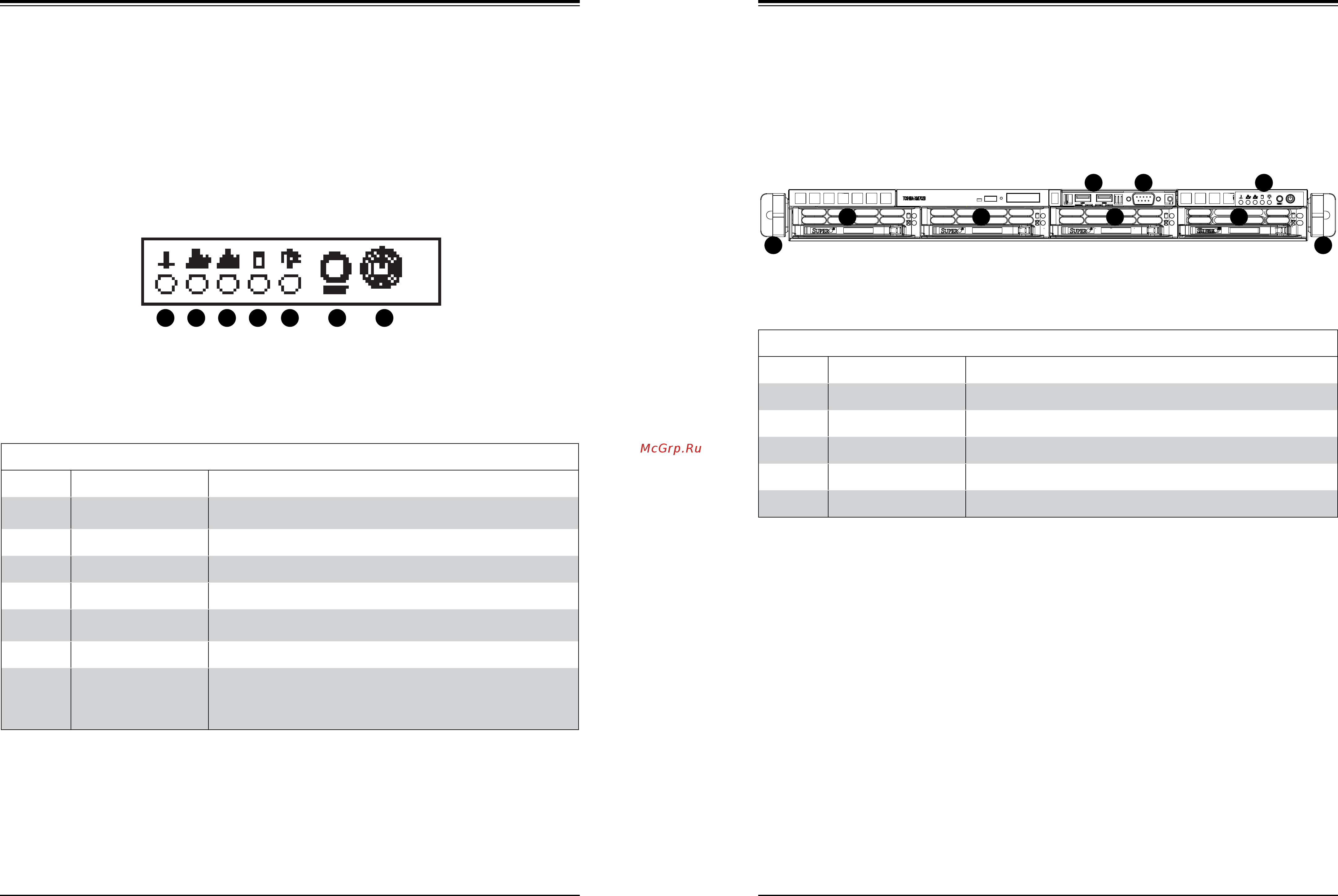

Figure 1-1. Control Panel View
1.4 Server Chassis Features
Control Panel
The switches and LEDs located on the control panel are described below. See Chapter 4 for
more details on the control panel.
1 765432
Front Chassis Features
Item Feature Description
1 SATA HDD Hot-swap 3.5" SATA hard disk drive
2 USB Ports Two front-access USB 3.0 ports
3 COM Port Front-access COM (serial) port
4 Control Panel Front control panel with LEDs and buttons (see preceding page)
5 Rack Ear Brackets Attaches server chassis to the rack
Figure 1-2. Chassis Front View
Front Features
The SC813MFTQC-350CB is a mini 1U chassis. See the illustration below for the features
included on the front of the chassis.
1
5 5
432
1 11
